MI-2524 (5,00)

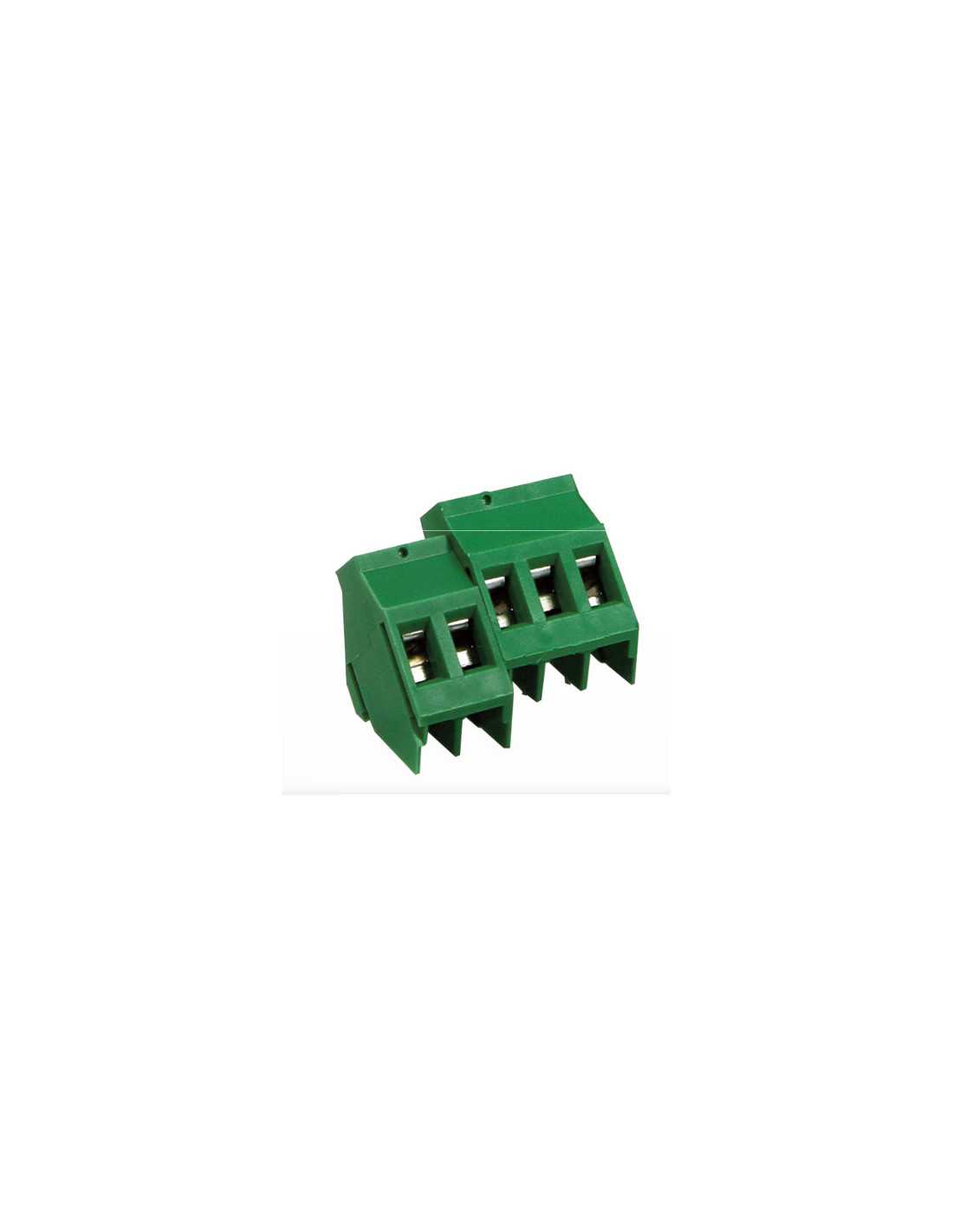

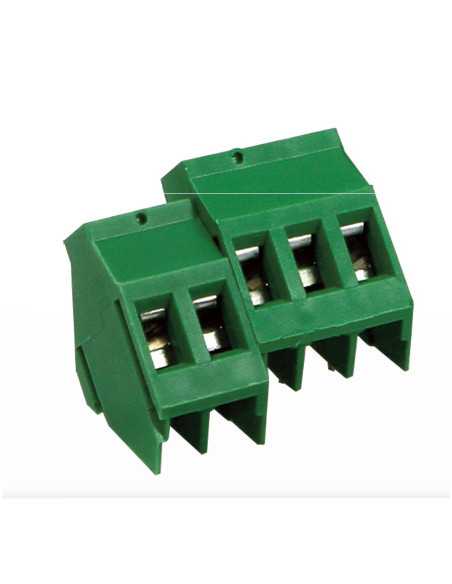

PCB Term Blk, 5.00mm, 24 Pole, 45°, green Contact Altech for 3D Step File at info@altechcorp.com |
D
Related products and accessories
| 16A, 300V, 14-30AWG, 16.3mm height, modular |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 5.00mm
- Connection Type
- Cage Clamp
- Series
- MI25
- Poles
- 24
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 14
- max Wire size solid AWG
- 14
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 2.50
- max Wire size solid sqmm
- 4.00
- Current Rating UL
- 16.0A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 16A
- Voltage Rating IEC
- 450V
- Height
- 16.30mm
- Length
- 120.00mm
- Number Rows
- 1
- Mounting
- Angled
- Wire Entry
- 45°
- PCB Layout
- Linear Center
- Solder Pin Length
- 3.60mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 50
- Packaging
- Carboard Box
- Weight (kg)
- 0.038400
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
