MVE257-5-V-L

MVE257-5-V-L

MVE257-5-V-L

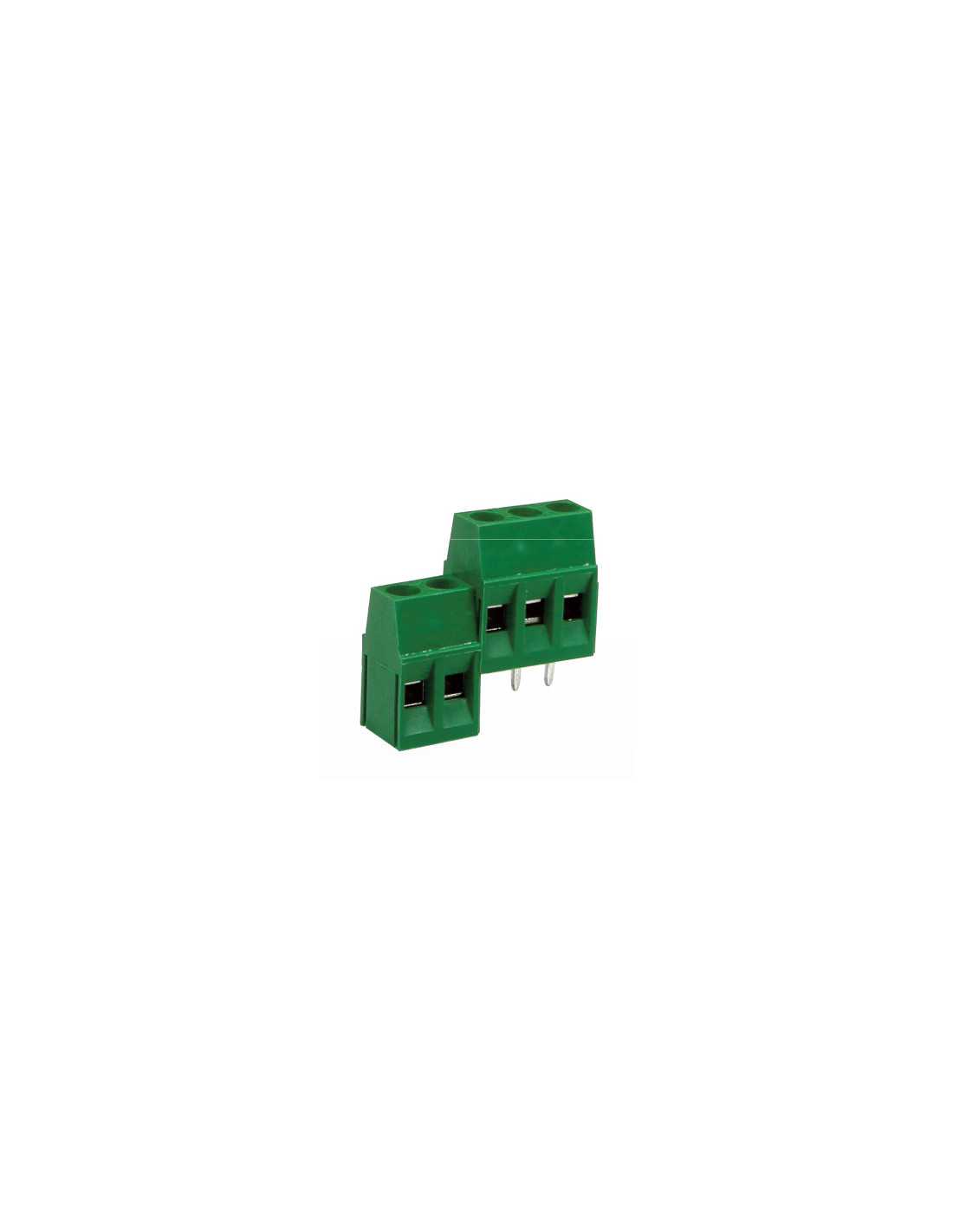

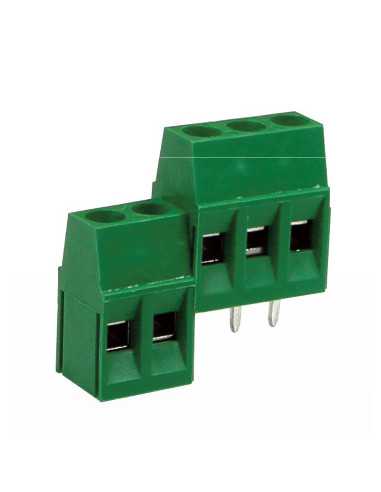

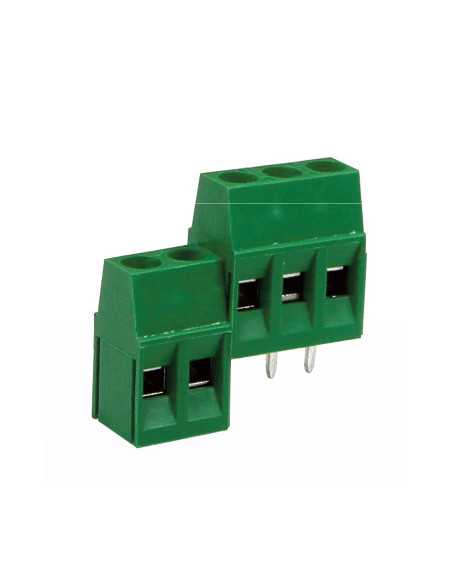

PCB Term Blk, 5.00mm, 7 Pole, Front wire, green

Downloadable 3D Image

16A, 300V, 14-30AWG, 16.8mm height, no dovetail

Color: Green
PCB Type: Fixed
Pin Spacing: 5.00mm
Connection Type: Cage Clamp
Series: MVE25
Poles: 7
min Wire Size AWG: 30
max Wire size stranded AWG: 14
max Wire size solid AWG: 14
min Wire size sqmm: 0.25
max Wire size stranded sqmm: 2.50
max Wire size solid sqmm: 4.00
Current Rating UL: 16.0A
Voltage Rating UL: 300V
Current Rating IEC: 16A
Voltage Rating IEC: 450V
Height: 16.80mm
Length: 35.00mm
Number Rows: 1
Mounting: Vertical
Wire Entry: 0°
PCB Layout: Linear Center
Solder Pin Length: 4.50mm
PCB Hole Size: 1.50mm
Mounting Type: Wave soldering
Marking: NA
Standard Pack: 100
Packaging: Carboard Box
Weight (kg): 0.010896
Country of Origin: Italy
Tariff Code: 8536.69.4040

Part Number MVE257-5-V-L
