    MVE-253
    MVE-253

    MVE-253

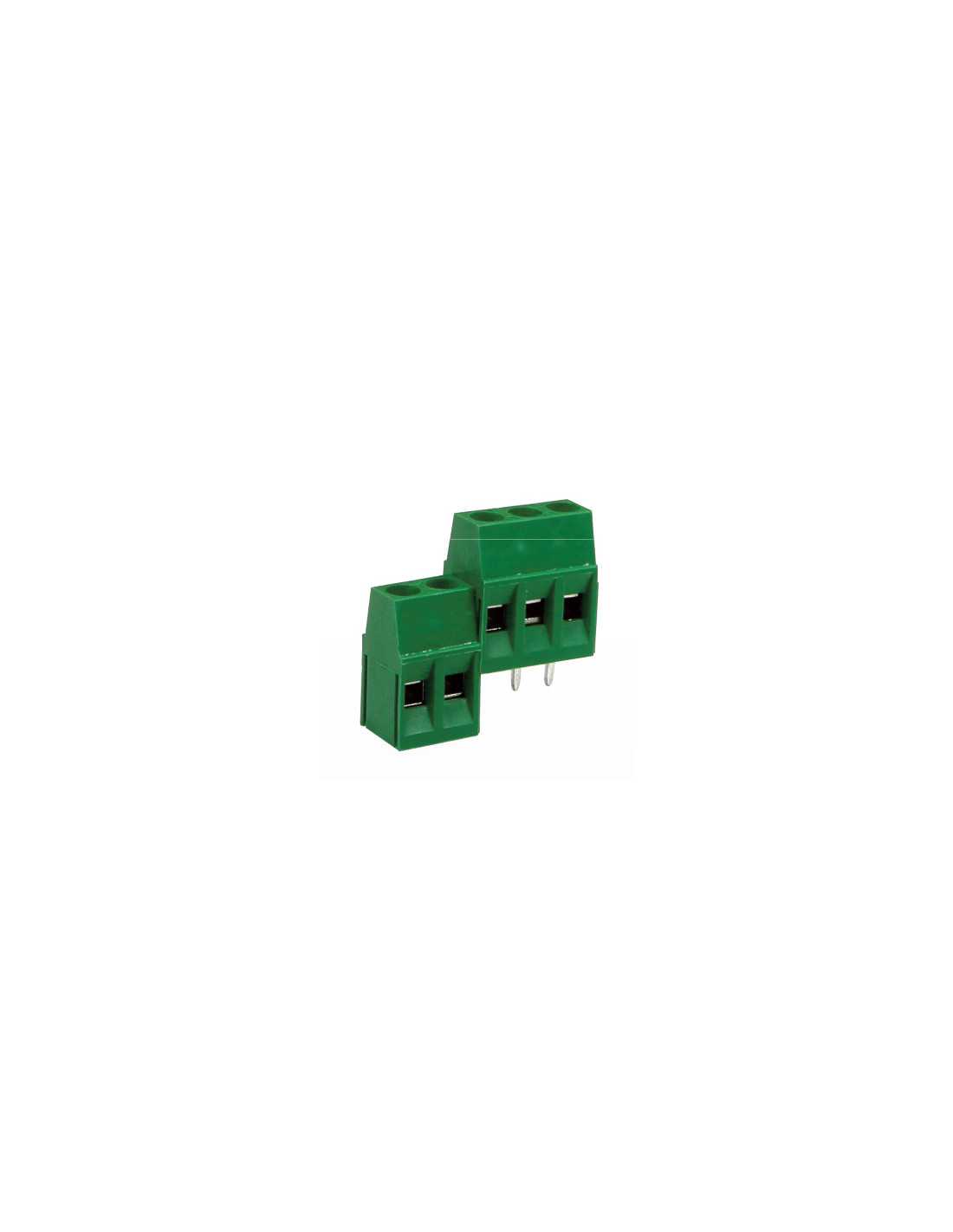

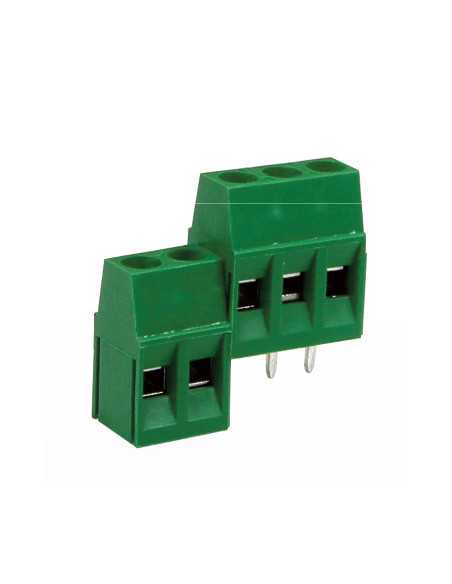

    PCB Term Blk, 5.00mm, 3 Pole, Front wire, green

    Data Sheet

    Downloadable 3D Image

    Related products and accessories


    16A, 300V, 14-30AWG, 16.8mm height, modular

    Color
    Green
    PCB Type
    Fixed
    Pin Spacing
    5.00mm
    Connection Type
    Cage Clamp
    Series
    MVE25
    Poles
    3
    min Wire Size AWG
    30
    max Wire size stranded AWG
    14
    max Wire size solid AWG
    14
    min Wire size sqmm
    0.25
    max Wire size stranded sqmm
    2.50
    max Wire size solid sqmm
    4.00
    Current Rating UL
    16.0A
    Voltage Rating UL
    300V
    Current Rating IEC
    16A
    Voltage Rating IEC
    450V
    Height
    16.80mm
    Length
    15.00mm
    Number Rows
    1
    Mounting
    Vertical
    Wire Entry
    0°
    PCB Layout
    Linear Center
    Solder Pin Length
    4.50mm
    PCB Hole Size
    1.50mm
    Mounting Type
    Wave soldering
    Marking
    NA
    Standard Pack
    100
    Packaging
    Carboard Box
    Weight (kg)
    0.004661
    Country of Origin
    Italy
    Tariff Code
    8536.69.4040
