    MV-158
    MV-158

    MV-158

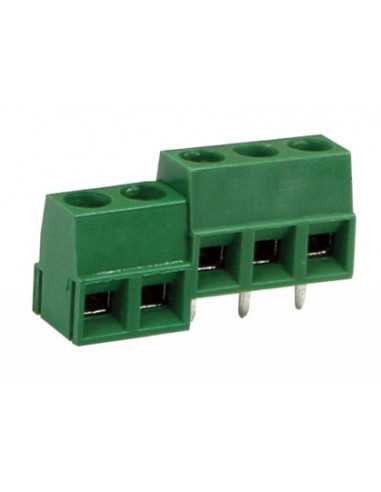

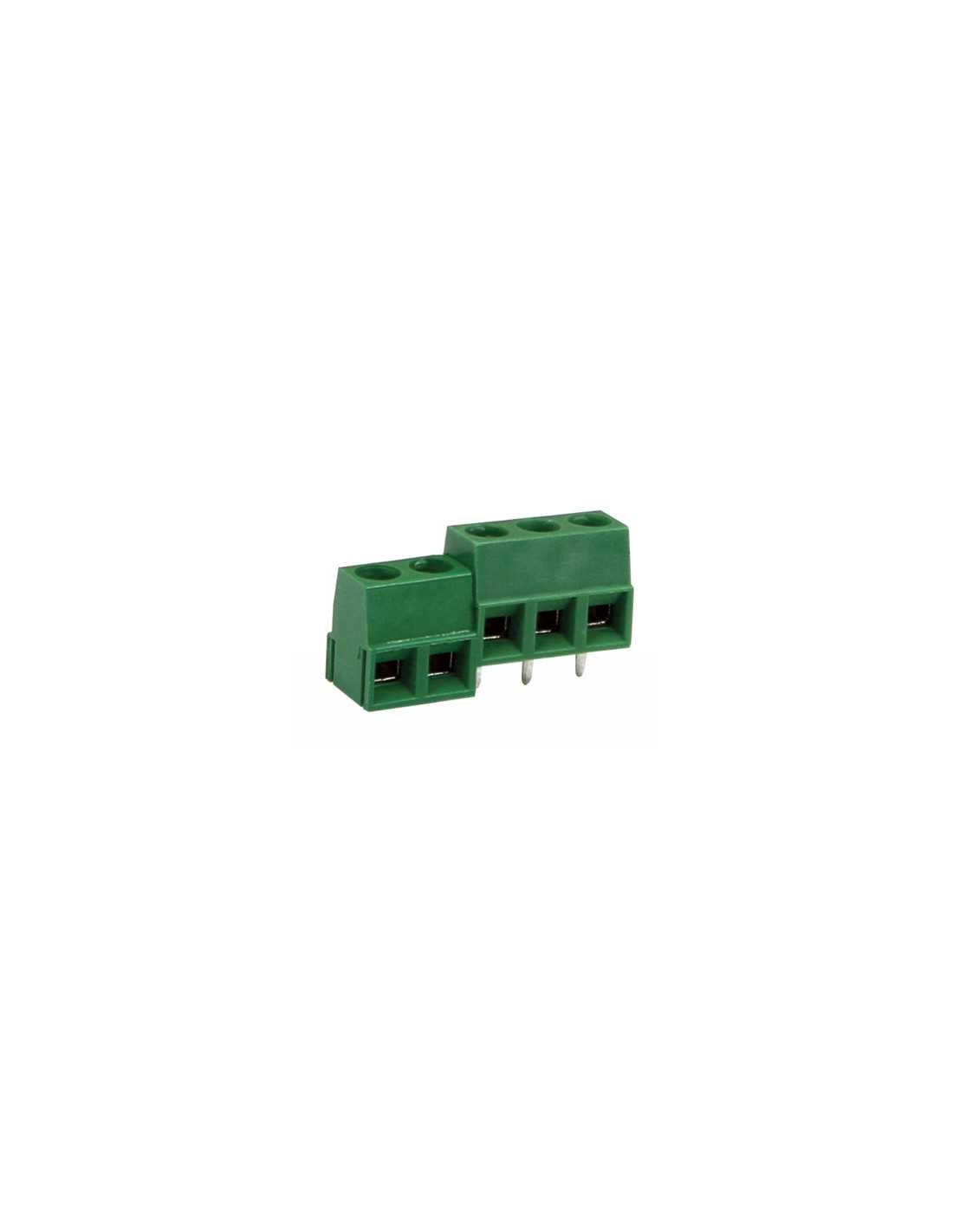

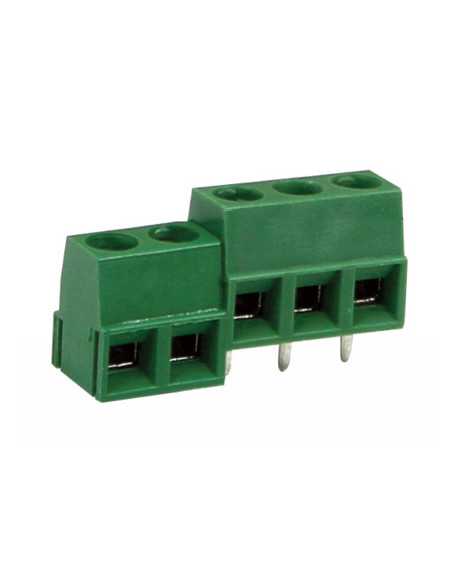

    PCB Term Blk, 5.00mm, 8 Pole, Front wire, green

    Data Sheet

    Downloadable 3D Image

    Related products and accessories


    13.5A, 300V, 16-30AWG, 10.6mm height, modular

    Color
    Green
    PCB Type
    Fixed
    Pin Spacing
    5.00mm
    Connection Type
    Cage Clamp
    Series
    MV15
    Poles
    8
    min Wire Size AWG
    30
    max Wire size stranded AWG
    16
    max Wire size solid AWG
    16
    min Wire size sqmm
    0.25
    max Wire size stranded sqmm
    1.50
    max Wire size solid sqmm
    1.50
    Current Rating UL
    13.5A
    Voltage Rating UL
    300V
    Current Rating IEC
    13.5A
    Voltage Rating IEC
    250V
    Height
    10.6mm
    Length
    40.00mm
    Number Rows
    1
    Mounting
    Vertical
    Wire Entry
    0°
    PCB Layout
    Linear Center
    Solder Pin Length
    3.70mm
    PCB Hole Size
    1.30mm
    Mounting Type
    Wave soldering
    Marking
    NA
    Standard Pack
    100
    Packaging
    Carboard Box
    Weight (kg)
    0.006759
    Country of Origin
    Italy
    Tariff Code
    8536.69.4040
    MV-158
