    MVS-1512
    MVS-1512

    MVS-1512

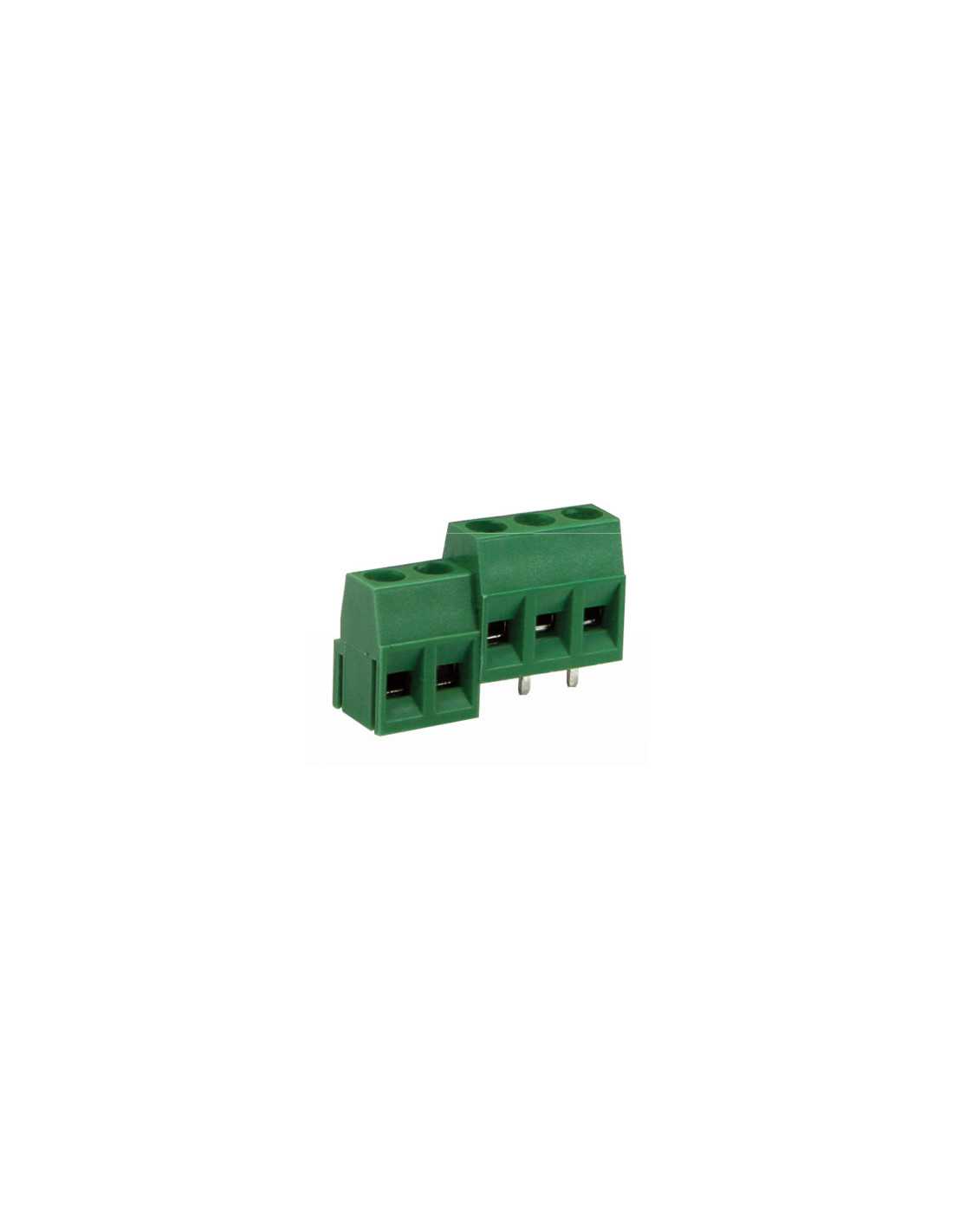

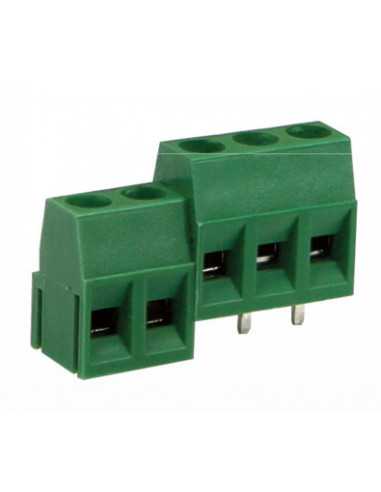

    PCB Term Blk, 5.00mm, 12 Pole, Front wire, green

    Data Sheet

    info@altechcorp.com

    Related products and accessories


    17.5A, 300V, 16-30AWG, 13.2mm height, modular

    Color
    Green
    PCB Type
    Fixed
    Pin Spacing
    5.00mm
    Connection Type
    Cage Clamp
    Series
    MVS15
    Poles
    12
    min Wire Size AWG
    30
    max Wire size stranded AWG
    16
    max Wire size solid AWG
    16
    min Wire size sqmm
    0.25
    max Wire size stranded sqmm
    1.50
    max Wire size solid sqmm
    2.50
    Current Rating UL
    17.5A
    Voltage Rating UL
    300V
    Current Rating IEC
    17.5A
    Voltage Rating IEC
    450V
    Height
    13.20mm
    Length
    60.00mm
    Number Rows
    1
    Mounting
    Vertical
    Wire Entry
    0°
    PCB Layout
    Linear Center
    Solder Pin Length
    4.00mm
    PCB Hole Size
    1.50mm
    Mounting Type
    Wave soldering
    Marking
    NA
    Standard Pack
    100
    Packaging
    Carboard Box
    Weight (kg)
    0.011760
    Country of Origin
    Italy
    Tariff Code
    8536.69.4040
