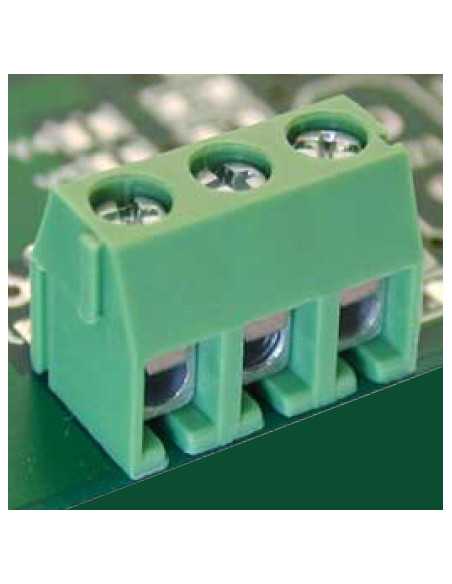

MLK1312-3,81-V
PCB Term Blk, 3.81mm, 12 Pole, Front wire, green
Contact Altech for 3D Step File at info@altechcorp.com
Related products and accessories
6A, 300V, 16-24AWG, 8.4mm height, modular
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 3.81mm
- Connection Type
- Box Clamp WP
- Series
- MLK13
- Poles
- 12
- min Wire Size AWG
- 24
- max Wire size stranded AWG
- 16
- max Wire size solid AWG
- 16
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 1.00
- max Wire size solid sqmm
- 1.50
- Current Rating UL
- 6A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 10.0A
- Voltage Rating IEC
- 130V
- Height
- 8.40mm
- Length
- 45.72mm
- Number Rows
- 1
- Mounting
- Vertical
- Wire Entry
- 0°
- PCB Layout
- Linear Center
- Solder Pin Length
- 3.50mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 100
- Packaging
- Carboard Box
- Weight (kg)
- 0.005032
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
