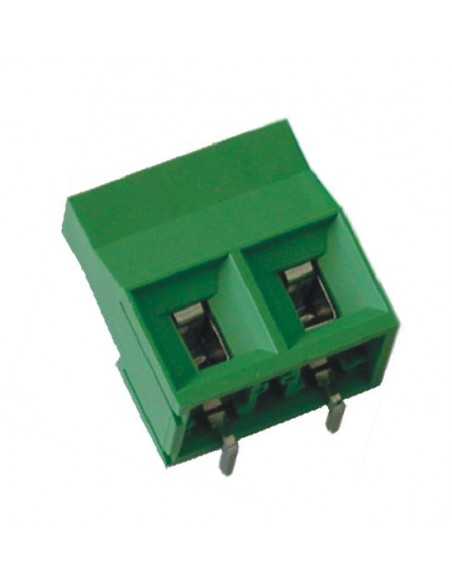

MV492-9,52-H
PCB Term Blk, 9.52mm, 2 Pole, Top wire, green |
Related products and accessories
| 30A, 300V, 10-30AWG, 12.5mm height, modular |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 9.52mm
- Connection Type
- Cage Clamp
- Series
- MV49
- Poles
- 2
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 10
- max Wire size solid AWG
- 10
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 6.00
- max Wire size solid sqmm
- 6.00
- Current Rating UL
- 30A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 32A
- Voltage Rating IEC
- 750V
- Height
- 12.50mm
- Length
- 19.04mm
- Number Rows
- 1
- Mounting
- horizontal
- Wire Entry
- 90°
- PCB Layout
- Linear
- Solder Pin Length
- 4.50mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 100
- Packaging
- Carboard Box
- Weight (kg)
- 0.005700
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
