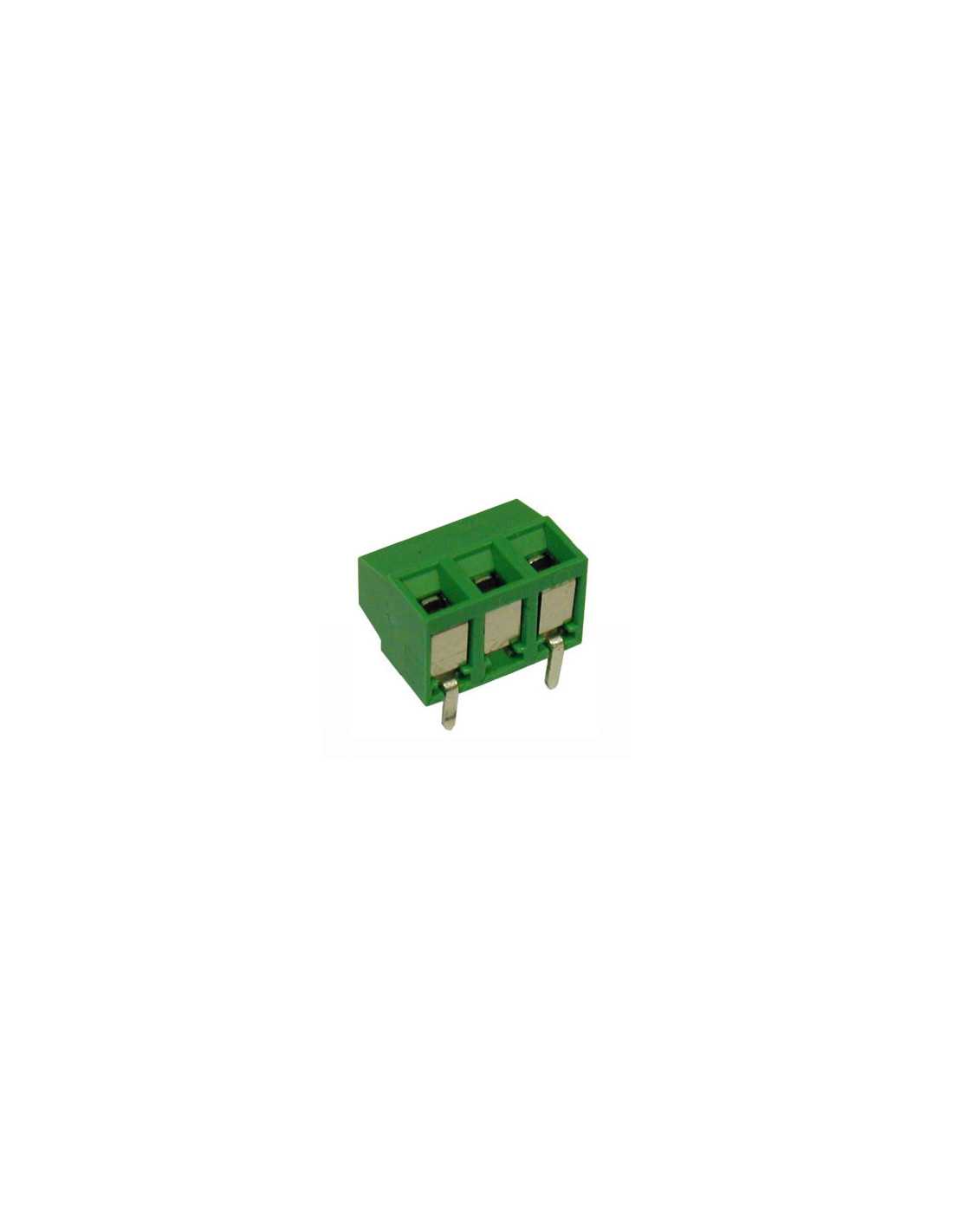

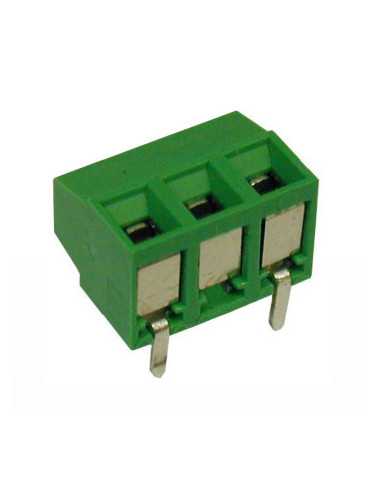

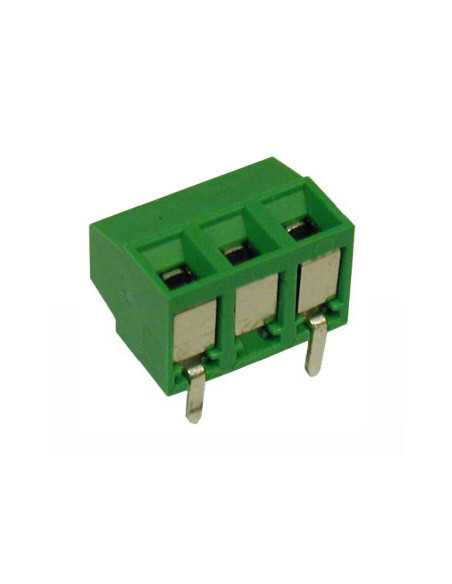

MV133-7,62-H-L
Related products and accessories
| 12A, 300V, 16-30AWG, 7.3mm height, no dovetail |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 7.62mm
- Connection Type
- Cage Clamp
- Series
- MV13
- Poles
- 3
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 16
- max Wire size solid AWG
- 16
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 1.00
- max Wire size solid sqmm
- 1.50
- Current Rating UL
- 12A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 13.5A
- Voltage Rating IEC
- 450V
- Height
- 7.30mm
- Length
- 17.50mm
- Number Rows
- 1
- Mounting
- horizontal
- Wire Entry
- 90°
- PCB Layout
- Linear
- Solder Pin Length
- 3.20mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 200
- Packaging
- Carboard Box
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
