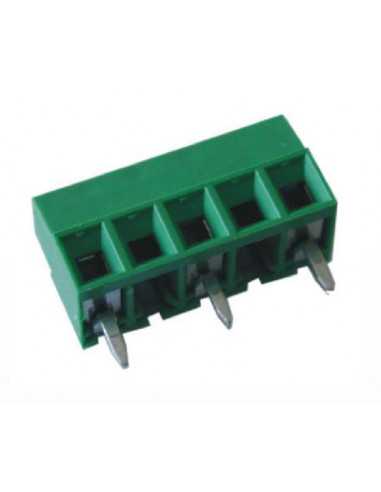

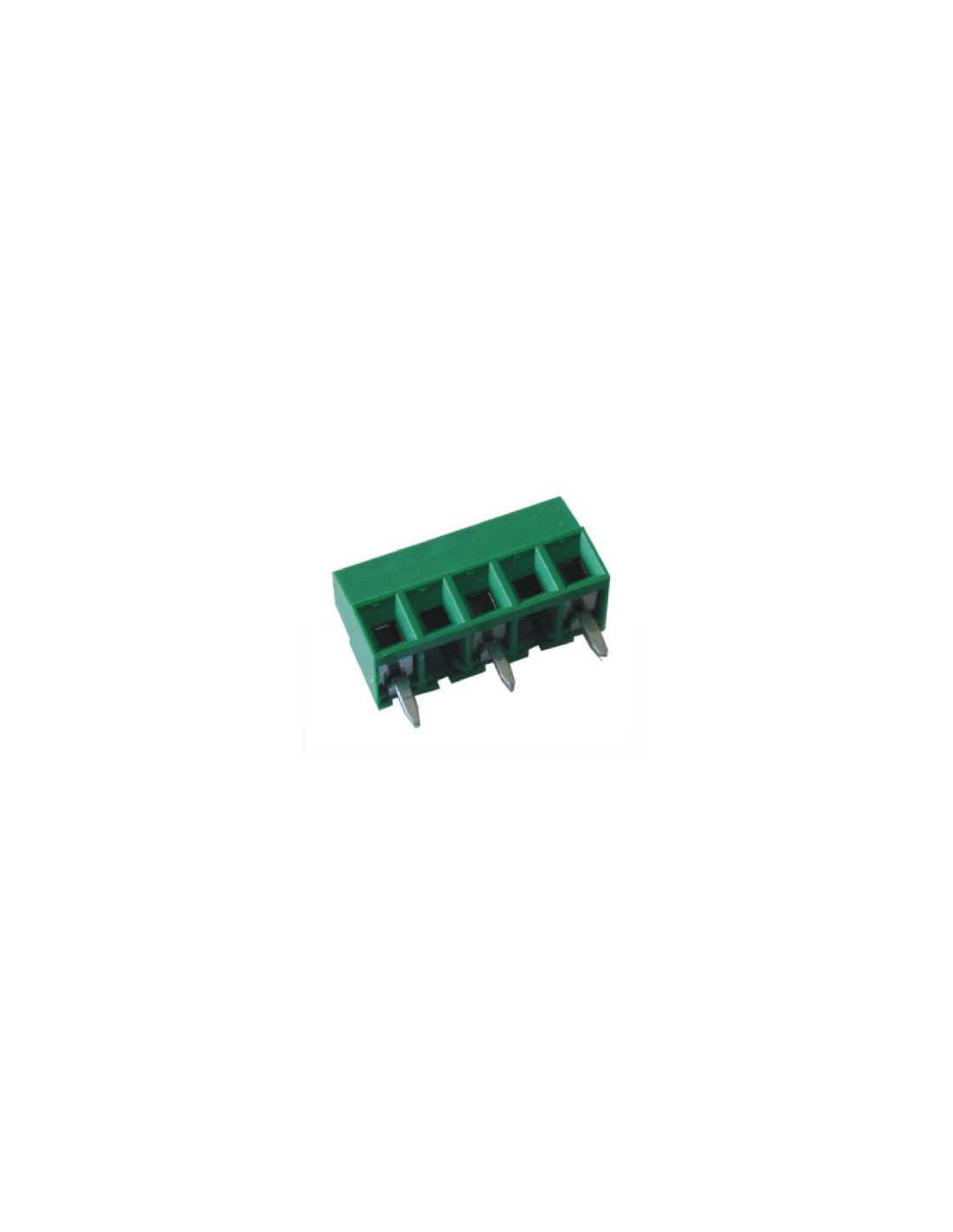

MV131-7,62-V-L
PCB Term Blk, 7.62mm, 1 Pole, Front wire, green Contact Altech for 3D Step File at info@altechcorp.com |
Related products and accessories
12A, 300V, 16-30AWG, 8.5mm height, no dovetail |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 7.62mm
- Connection Type
- Cage Clamp
- Series
- MV13
- Poles
- 1
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 16
- max Wire size solid AWG
- 16
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 1.00
- max Wire size solid sqmm
- 1.50
- Current Rating UL
- 12A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 13.5A
- Voltage Rating IEC
- 450V
- Height
- 8.50mm
- Length
- 3.50mm
- Number Rows
- 1
- Mounting
- Vertical
- Wire Entry
- 0°
- PCB Layout
- Linear Center
- Solder Pin Length
- 3.50mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 200
- Packaging
- Carboard Box
- Weight (kg)
- 0.000470
- Country of Origin
- Italy

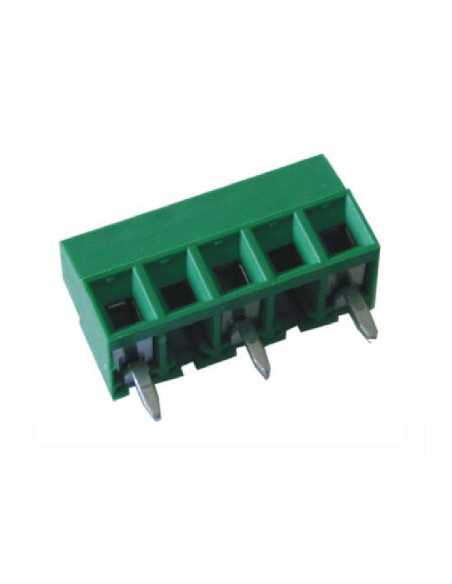

MV131-7,62-V-L
