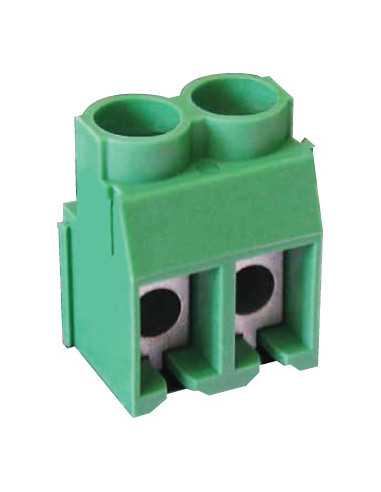

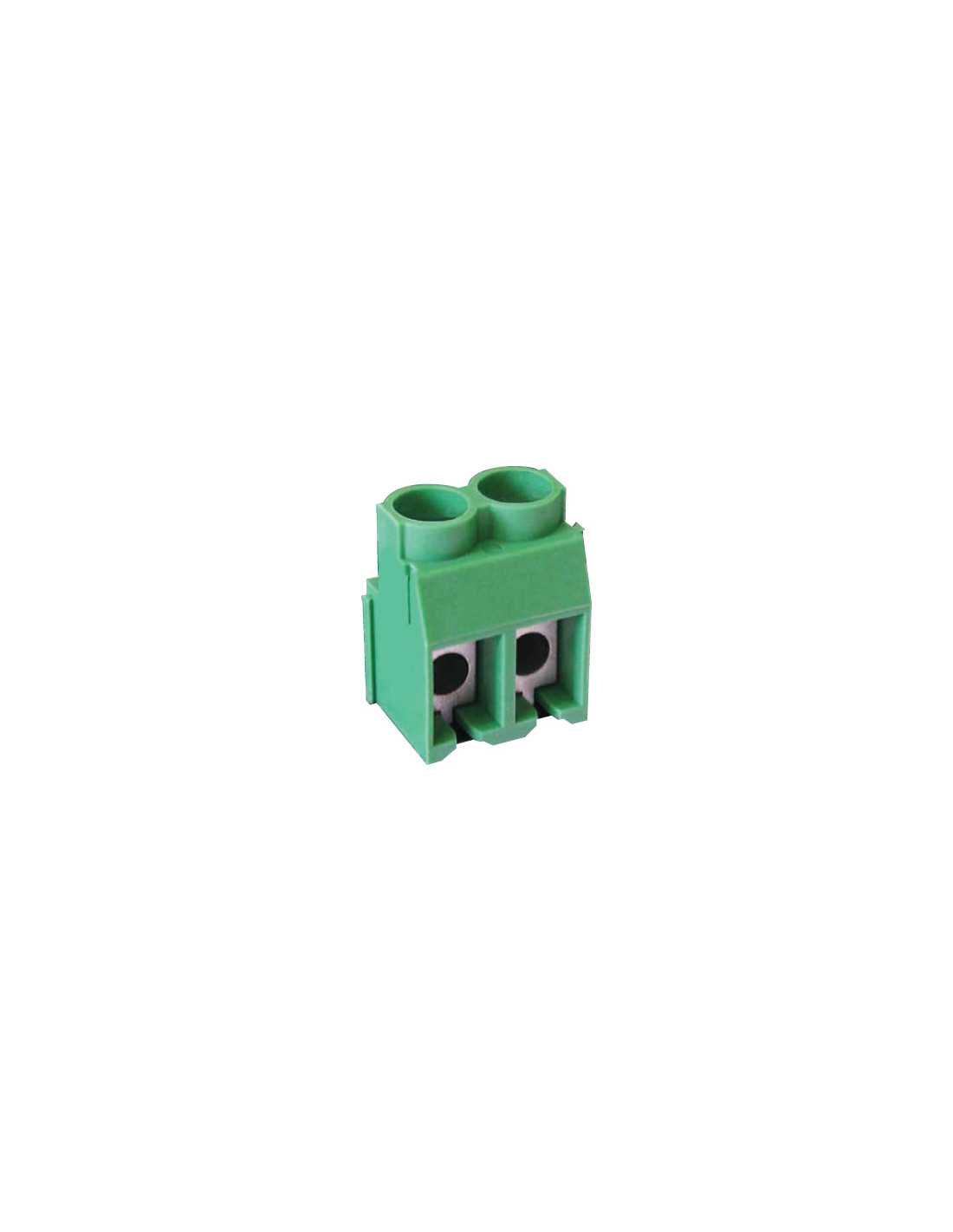

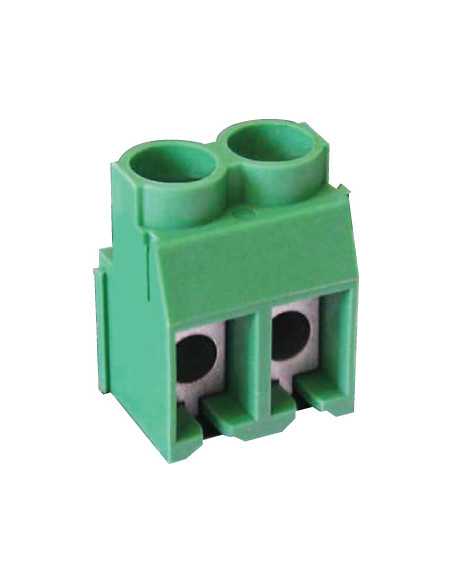

MVK474-7,62-V
PCB Term Blk, 7.62mm, 4 Pole, Front wire, green Contact Altech for 3D Step File at info@altechcorp.com |
35A, 300V, 20-10AWG, 20mm height, modular |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 7.62mm
- Connection Type
- Box Clamp WP
- Series
- MVK47
- Poles
- 4
- min Wire Size AWG
- 20
- max Wire size stranded AWG
- 10
- max Wire size solid AWG
- 10
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 6.0
- max Wire size solid sqmm
- 10.0
- Current Rating UL
- 35A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 41A
- Voltage Rating IEC
- 750V
- Height
- 20.00mm
- Length
- 30.48mm
- Number Rows
- 1
- Mounting
- Vertical
- Wire Entry
- 0°
- PCB Layout
- Linear Center
- Solder Pin Length
- 3.00mm
- PCB Hole Size
- 1.80mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 100
- Packaging
- Carboard Box
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
