MVI-11
PCB Term Blk, 6.35mm, 11 Pole, Plug-in Card, black
Contact Altech for 3D Step File at info@altechcorp.com
25A, 300V, 12-30AWG, 33mm height, modular
- Color
- Black
- PCB Type
- Fixed
- Pin Spacing
- 6.35mm
- Connection Type
- Cage Clamp
- Series
- MVI
- Poles
- 11
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 12
- max Wire size solid AWG
- 12
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 4.0
- max Wire size solid sqmm
- 6.0
- Current Rating UL
- 25A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 25A
- Voltage Rating IEC
- 450V
- Height
- 33.00mm
- Length
- 69.85mm
- Number Rows
- 1
- Mounting
- Vertical
- Wire Entry
- 0°
- PCB Layout
- Linear Center
- Solder Pin Length
- 3.2mm
- PCB Hole Size
- 0
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 100
- Packaging
- Carboard Box
- Weight (kg)
- 0.034440
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
MVI-11
No reviews

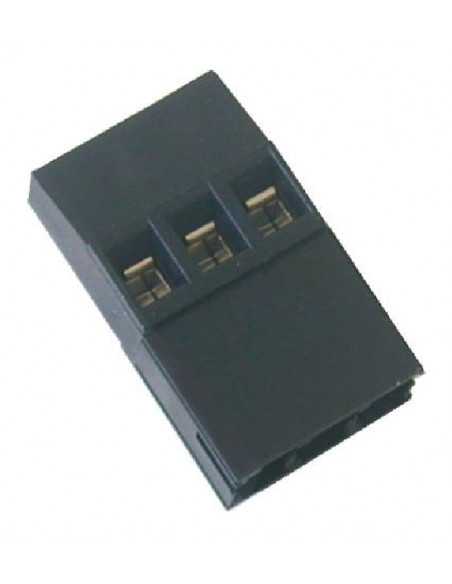

Tap to zoom
