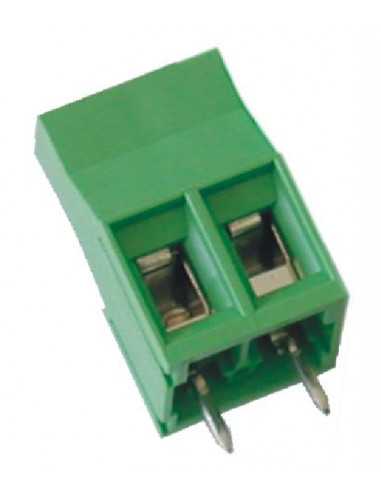

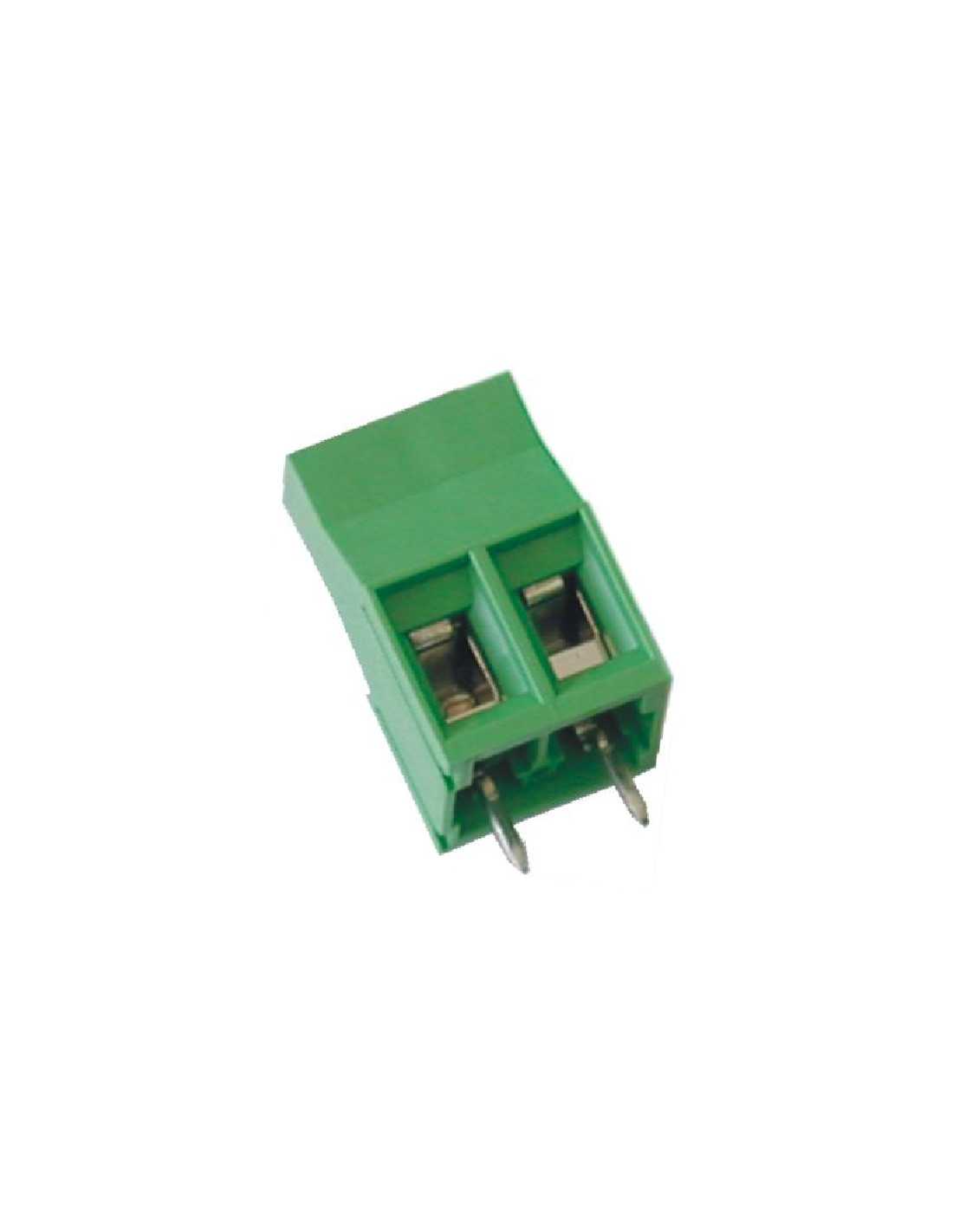

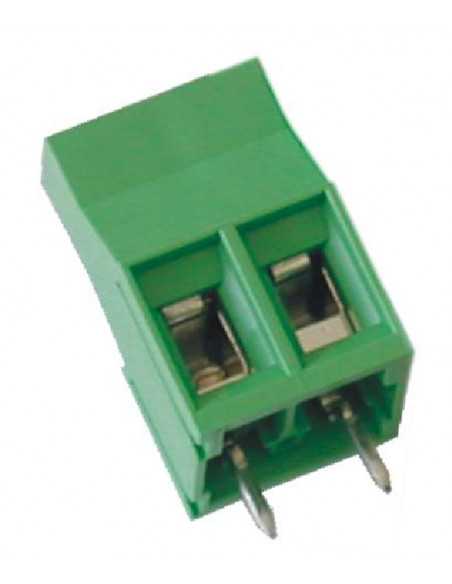

MV-4613
30A, 300V, 10-30AWG, 21mm height, modular
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 6.35mm
- Connection Type
- Cage Clamp
- Series
- MV46
- Poles
- 13
- min Wire Size AWG
- 30
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 6.0
- max Wire size solid sqmm
- 6.0
- Current Rating UL
- 30A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 32A
- Voltage Rating IEC
- 450V
- Height
- 21.00mm
- Length
- 82.55mm
- Number Rows
- 1
- Mounting
- Vertical
- PCB Layout
- Linear Center
- Solder Pin Length
- 4.40mm
- PCB Hole Size
- 1.40mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 50
- Packaging
- Carboard Box
- Weight (kg)
- 0.031200
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
MV-4613
