MLK1314-3,5-H
PCB Term Blk, 3.50mm, 14 Pole, Top wire, green
Contact Altech for 3D Step File at info@altechcorp.com
Related products and accessories
6A, 300V, 16-24AWG, 6.8mm height, modular
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 3.50mm
- Connection Type
- Box Clamp WP
- Series
- MLK13
- Poles
- 14
- min Wire Size AWG
- 24
- max Wire size stranded AWG
- 18
- max Wire size solid AWG
- 16
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 1.00
- max Wire size solid sqmm
- 1.50
- Current Rating UL
- 6A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 10A
- Voltage Rating IEC
- 130V

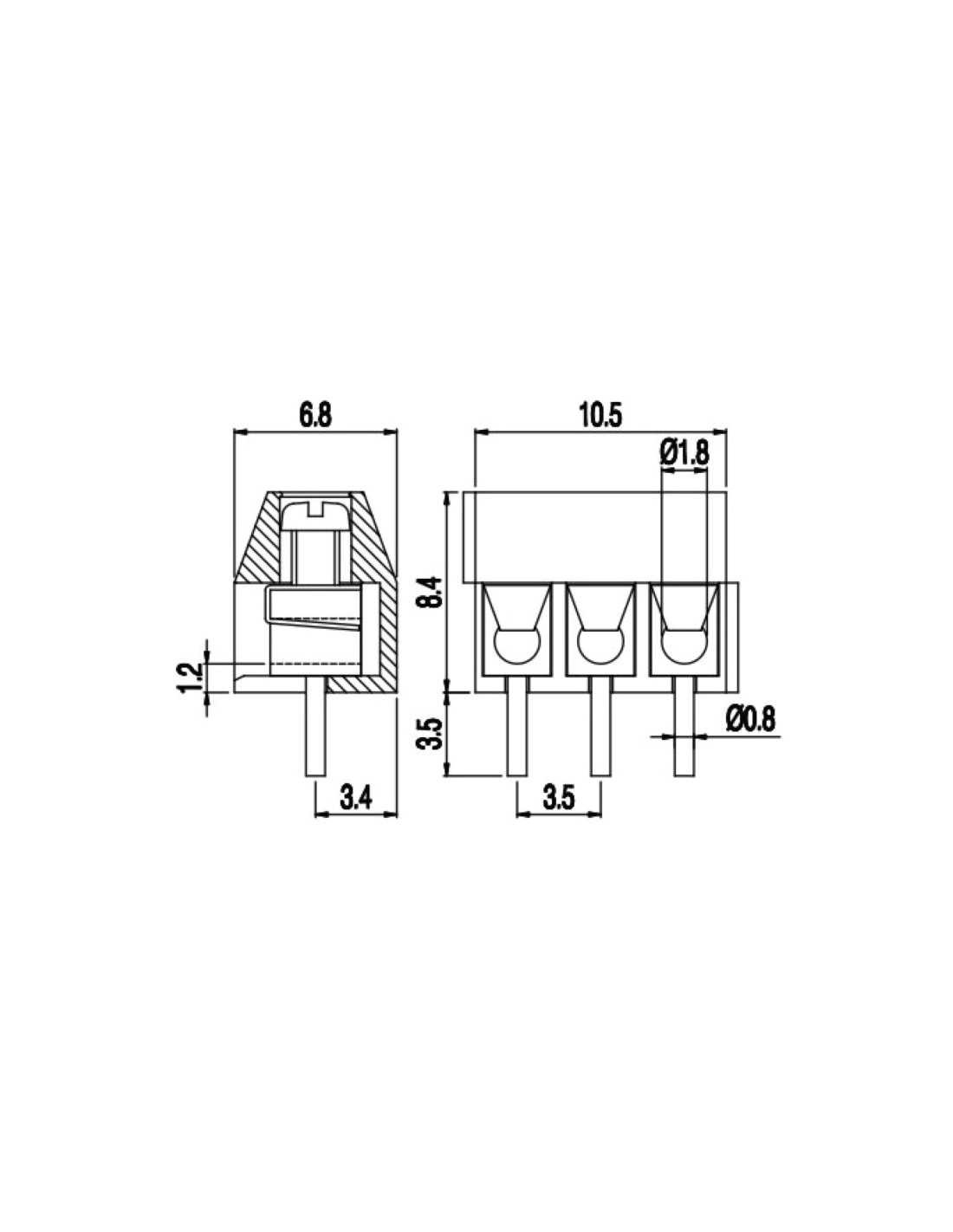

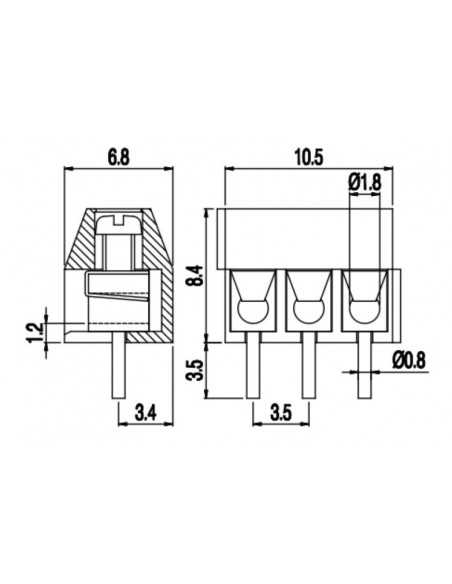

- Height
- 6.80mm
- Length
- 49.00mm
- Number Rows
- 1
- Mounting
- horizontal
- Wire Entry
- 90°

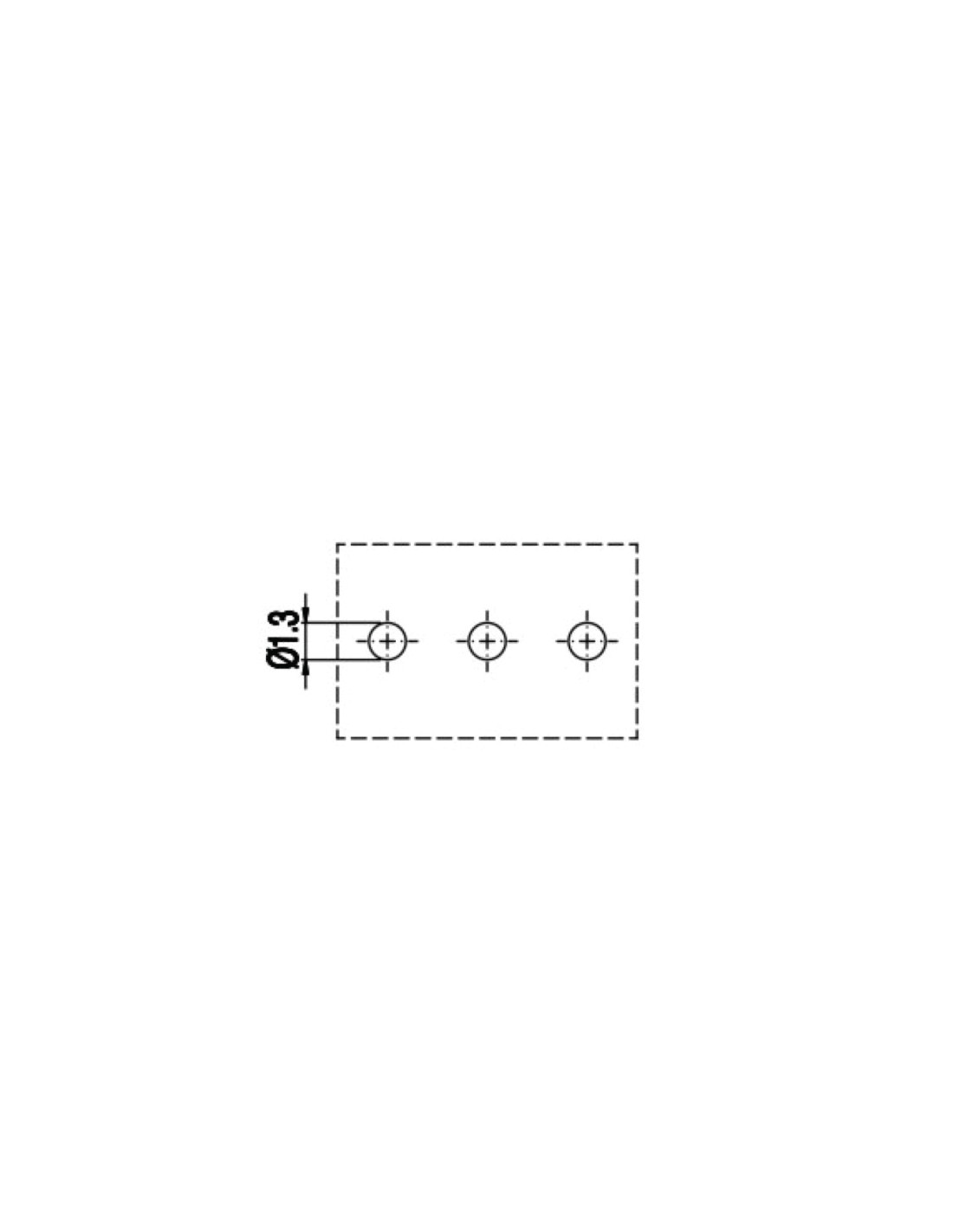

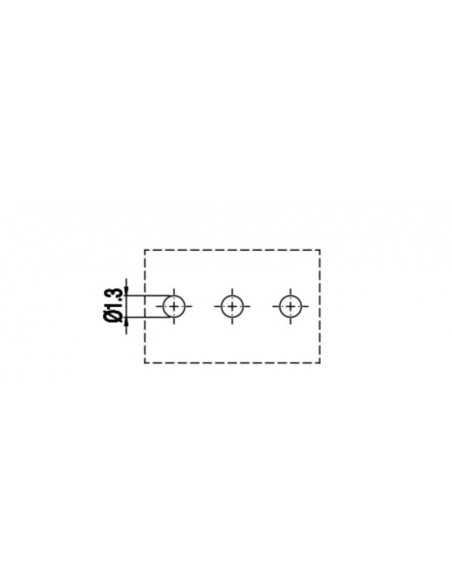

- PCB Layout
- Linear
- Solder Pin Length
- 3.50mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 100
- Packaging
- Carboard Box
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
