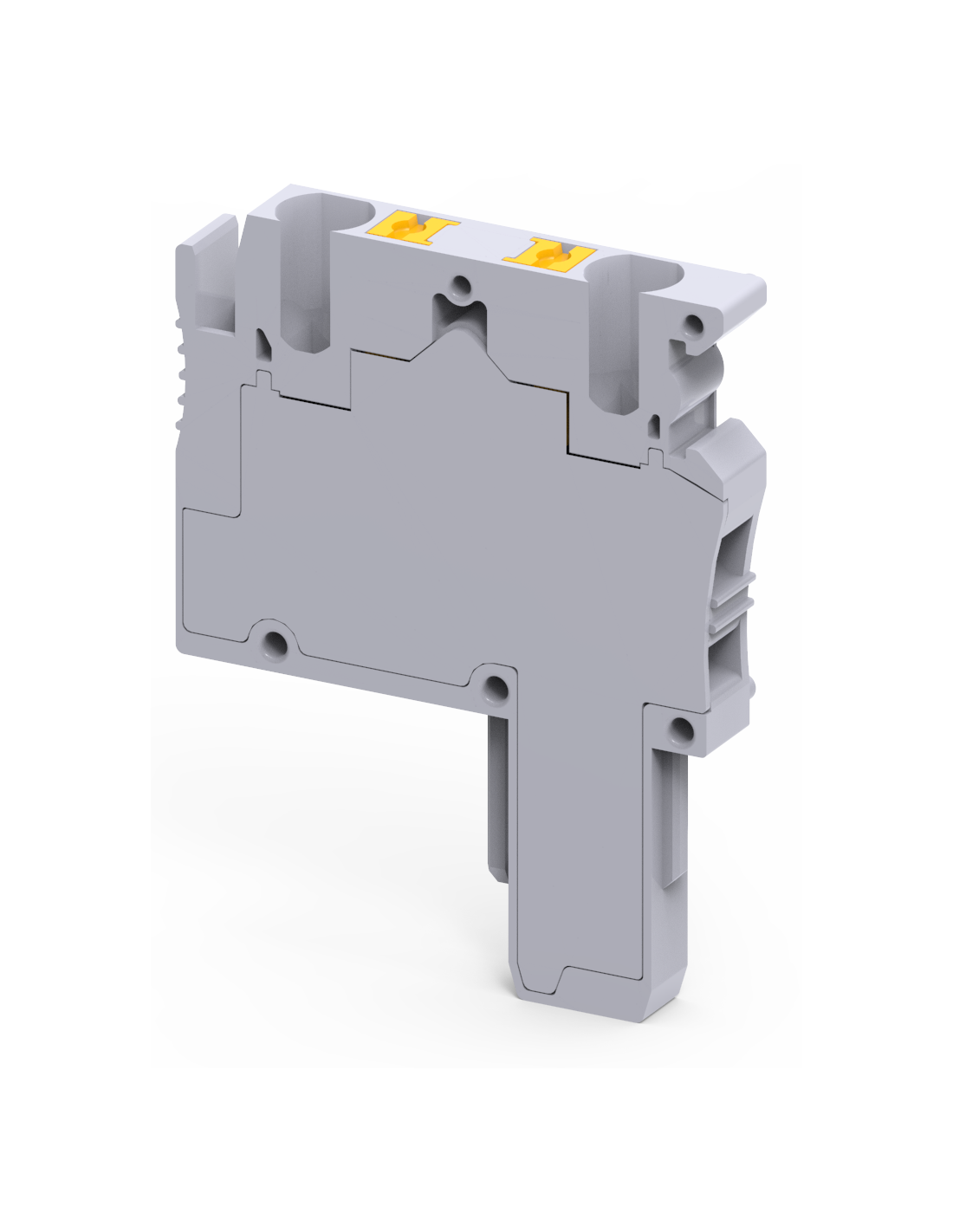

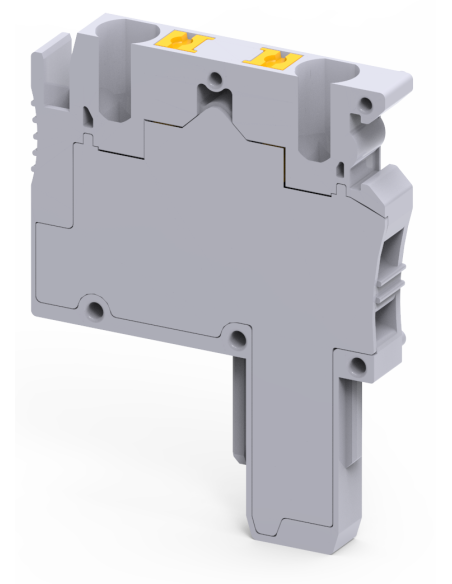

CP2.5PD/4 Pluggable Terminal Block
CP2.5PD/4
CP2.5PD/4 Dual Terminal Plug with Jumper Slot, 4 Pole
cSAus/cRUus: 12 AWG, 300V, 20A | IEC 60947-7-1: 0.2-2.5mm², 500V, 24A | 10mm Wire Strip Length, Grey
FEATURES
- Pluggable Terminal Blocks
- Pluggable Wire to DIN Rail connection
(CX2.5/1B-CX2.5PN) - Pluggable Wire to Wire Connection
- (CX2.5SN - CX2.5PN)
- Easy Clip multi-wire solution
- Polarizing plug wit coding pin CXPOL
- 2/4 way strain relief
(CXS2RN, CXS4RN)
Data Sheet
- Length (mm)
- 33
- Width (mm)
- 5
- Height (mm)
- 42.0
- Standard Pack
- 50
- Poles
- 4
- Weight per piece
- 9.5 g
- Approvals
- CE, c SA us, c RU us, IEC 60947-7-1
- Wire Size (solid/stranded) - c SA us, c RU us
- 12 AWG
- Voltage Rating - c SA us, c RU us
- 300 V
- Current Rating - c SA us, c RU us
- 20 A
- Wire Size (solid/stranded) - IEC 60947-7-1
- 0.2-2.5 mm²
- Voltage Rating - IEC 60947-7-1
- 500 V
- Current Rating- IEC 60947-7-1
- 24 A
- Insulation Material
- Polyamide 66
- Wire Stripping Length
- 10 mm
- Screwdriver
- Flat Head 0.5 x 3 mm
