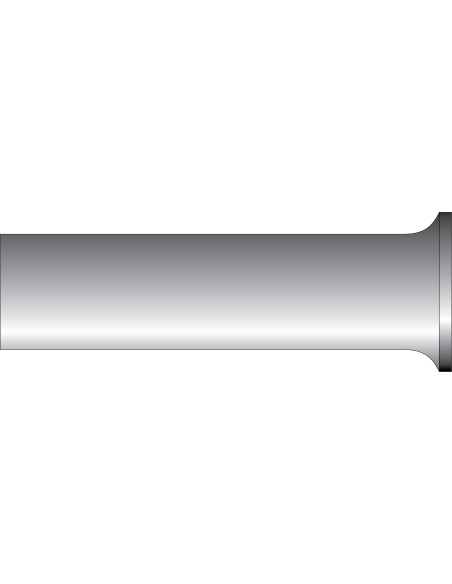

2816.0 - Uninsulated & Dule Wire Insulated Ferrules : 10 AWG : 6 mm²

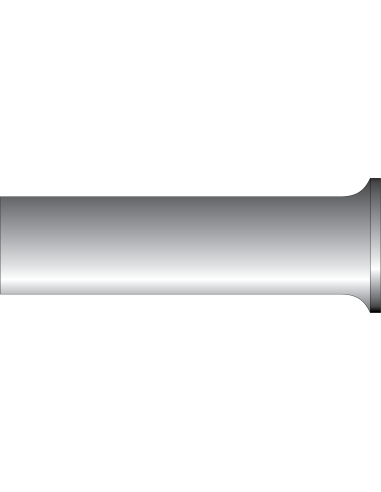

Original Uninsulated Ferrules
Ferrules insure reliable electrical connections when terminating stranded flexible wire in terminal blocks, circuit breakers or other control devices.
Uninsulated ferrules prevent wire strands from fraying and breaking and are extremely cost effective. Their shorter lengths and uninsulated bodies offer advantages when making terminations in printed circuit board terminal blocks and in other terminal blocks with smaller clamps or narrow widths.
DATA SHEET
< Product photo/drawing may vary depending on part number selection.
Tested according to:
CSA Std C22.2 No. 65-93 - Wire connectors
CSA Std C22.2 No. 188-M1983 - Splicing Wire & Cable Connectors
ANSI/UL Std No. 486A - Wire Connectors & Soldering Lugs for use with Copper Conductors
ANSI/UL Std No. 486C - Splicing Wire Connectors
- AWG
- 1
- mm²
- 50

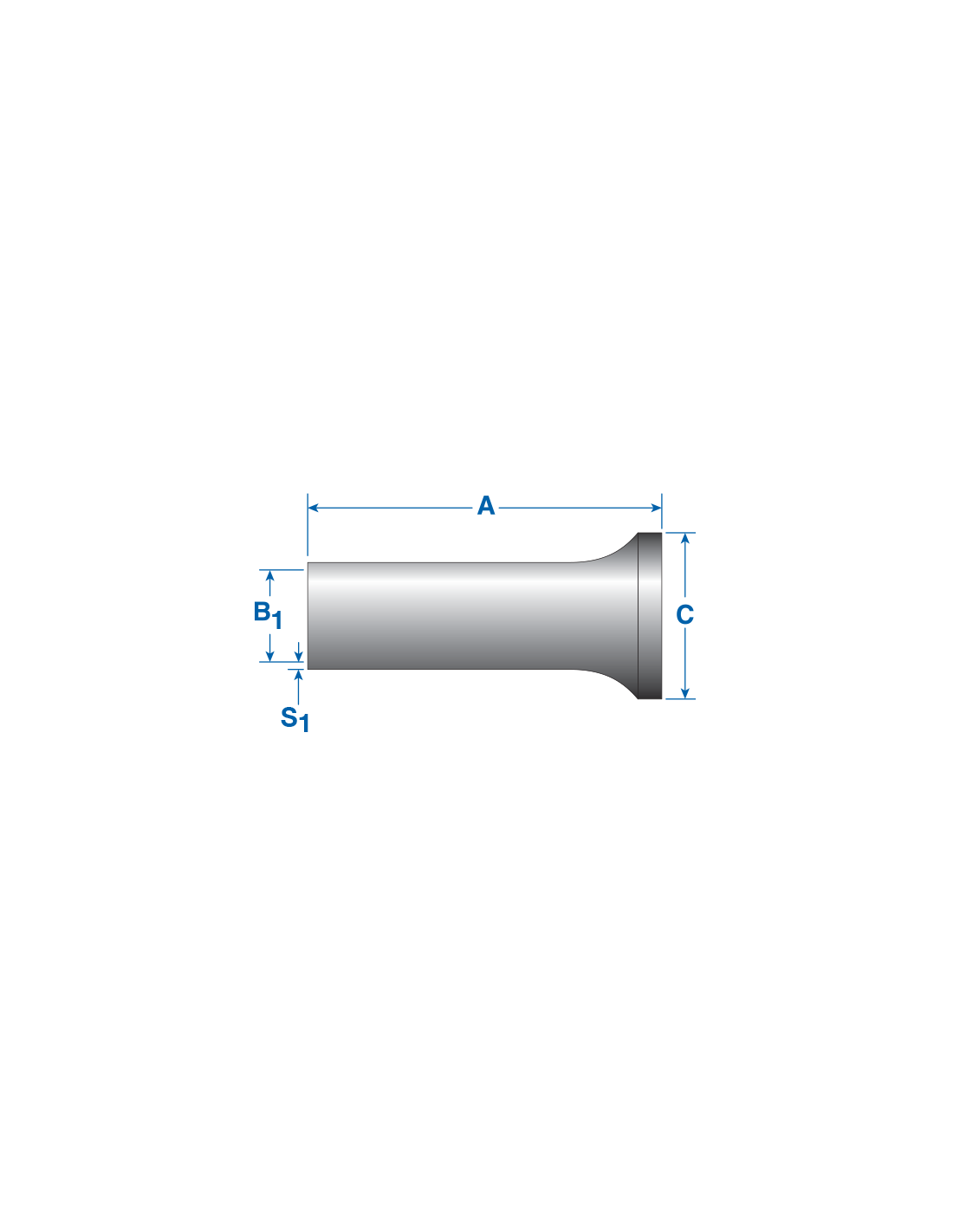

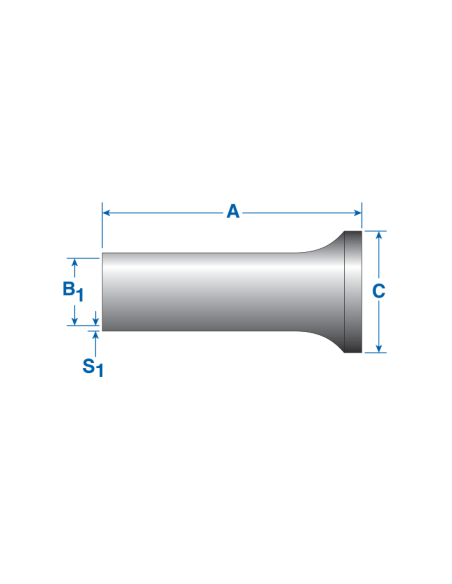

- S₁
- 0.3
- Ferrule Type
- Uninsulated
- A
- 32
- B
- 10.3
- C
- 13
