3805016 - Quick-Mounting System for Polyflex PA 6 Conduit

Part Number 3805016

3805016 - Quick-Mounting System for Polyflex PA 6 Conduit

PG29 - Quick Mounting System for Polyflex PA 6 Conduit/ Conduit Gland SEM-FAST Straight/ Metric

DATA Sheet Link

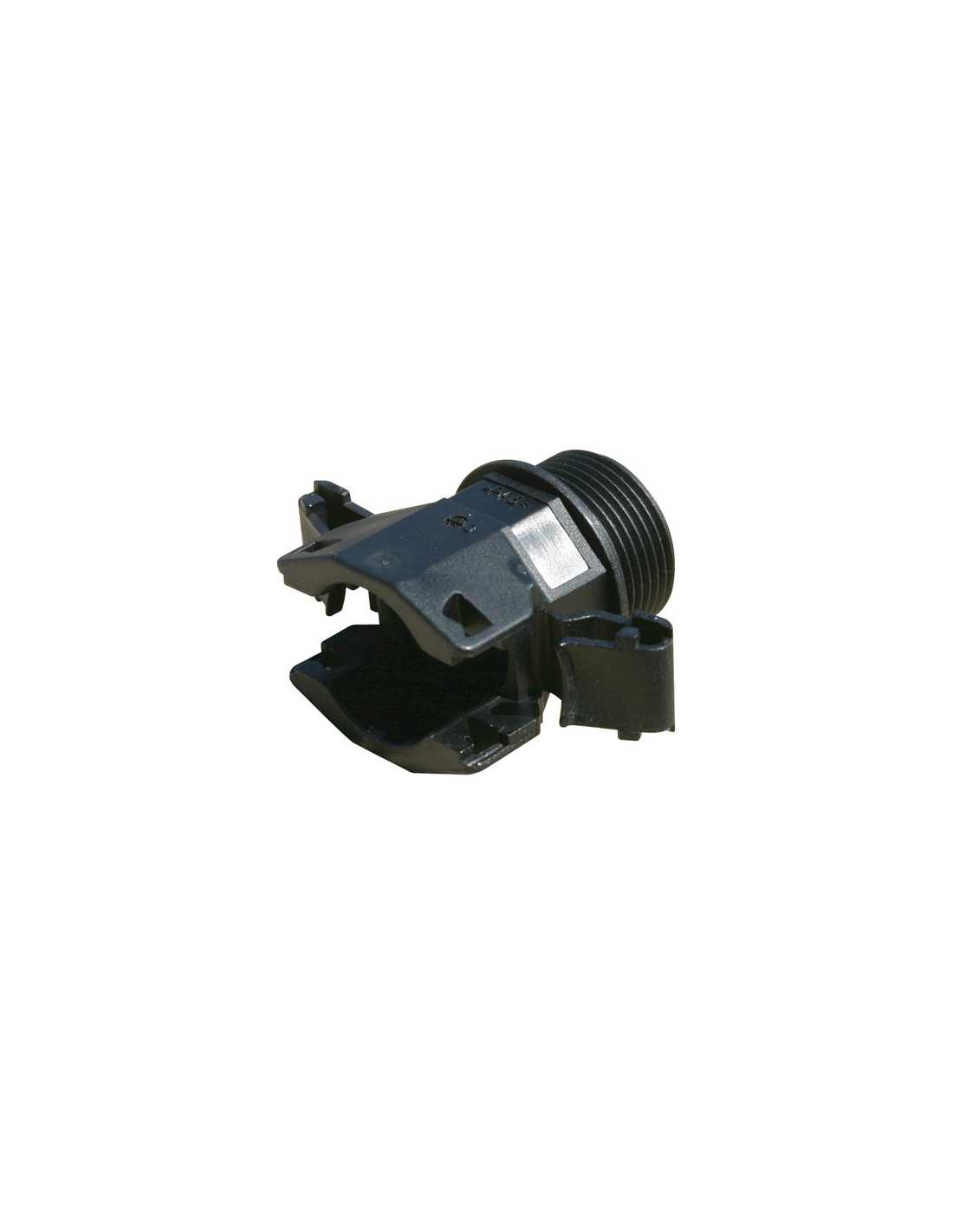

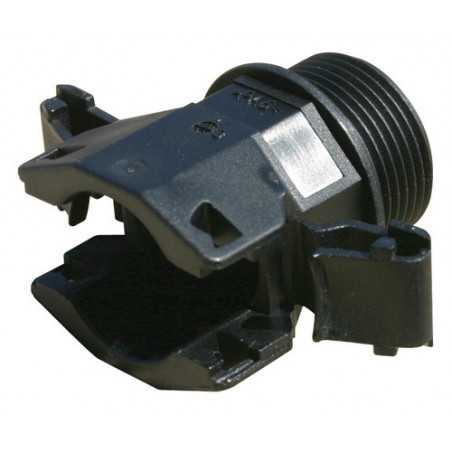

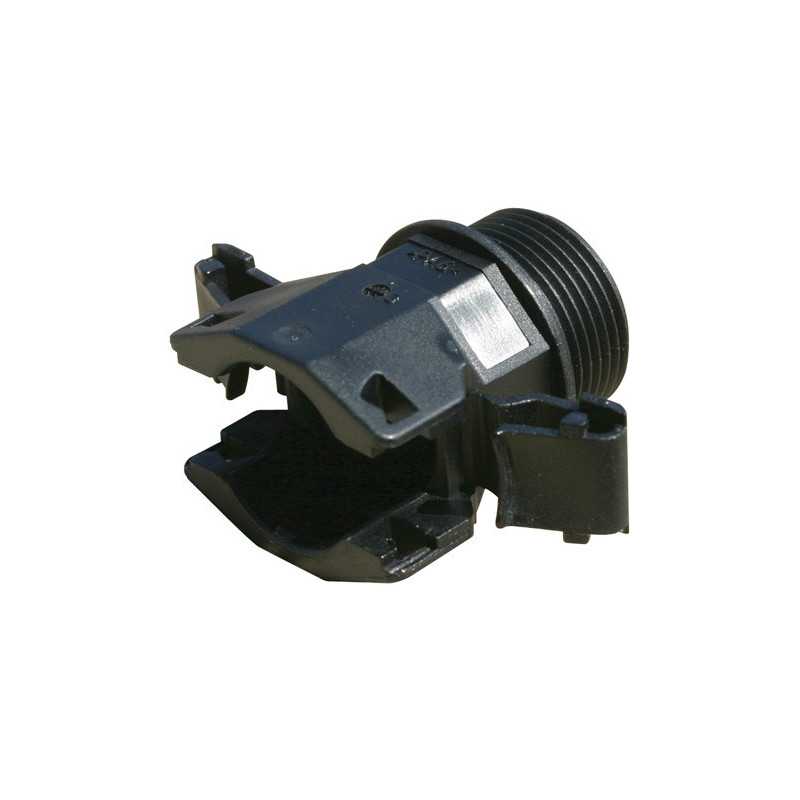

< Product photo may vary depending on part number selection.

Material:

• Polyamide 66

Technical Properties:

• Easy and tight single hand mounting

• Insert tube in the “closed” gland

• Special click- in system

• Conical sealing on the corrugated tube

• Gray available

• Thread side sealed by integral sealing ridges

• Conduit can be rotated within the mounting gland

• Halogen free

Applications:

• All fields using conduit

Mounting Instructions:

Insert the conduit with a short twist all the way into the end of the SEM conduit gland.

Pull the tube back slightly to latch it securely.

Product Details
Reviews (0)

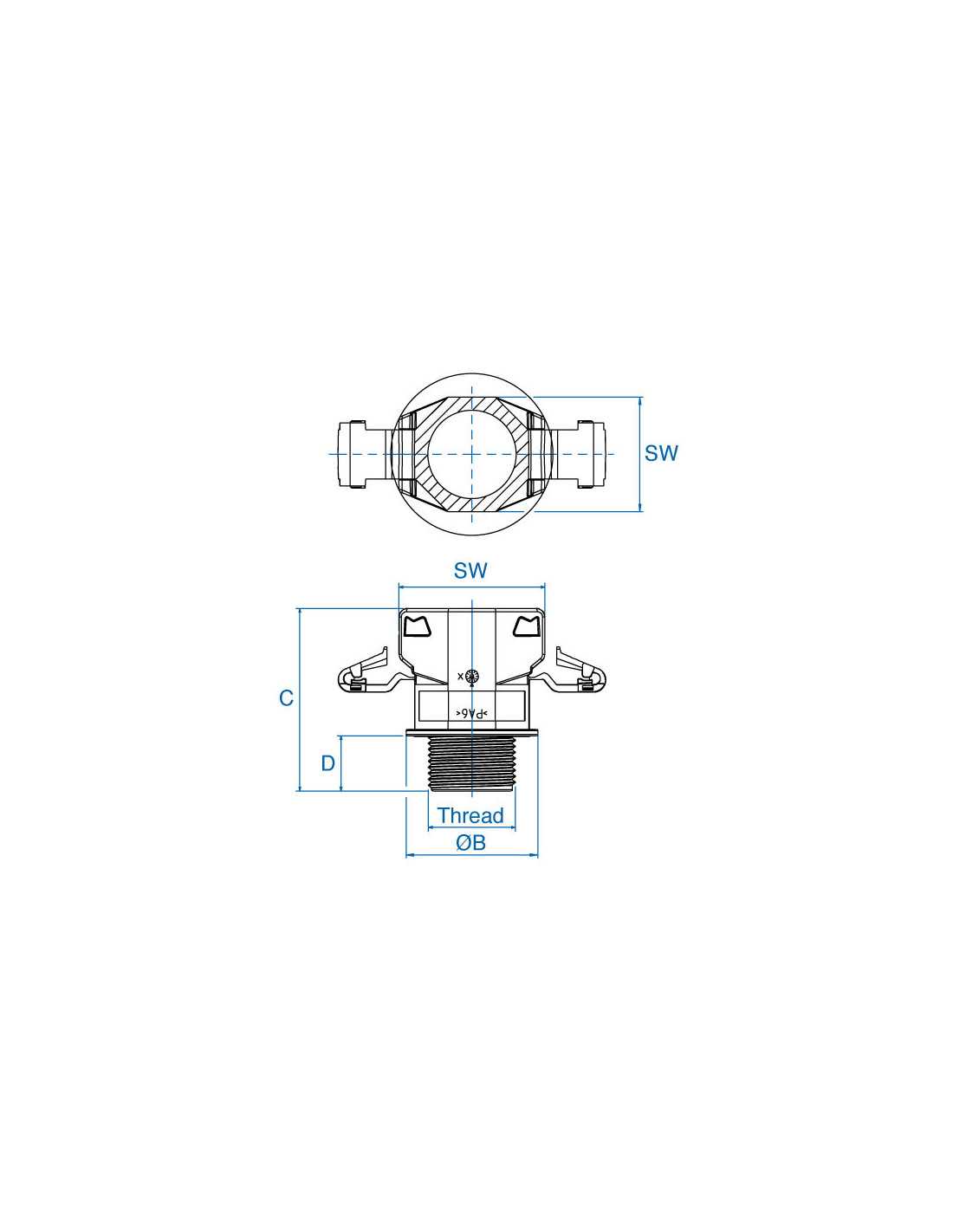

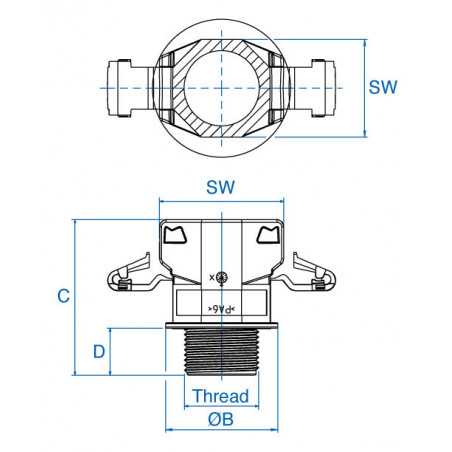

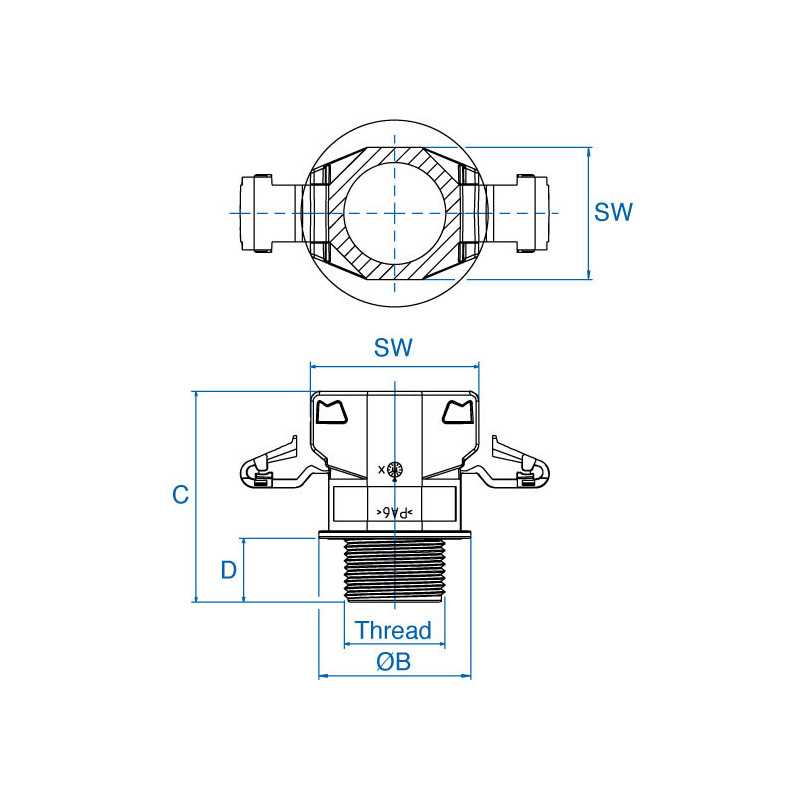

Width (mm): 41
Material: Polyamide 66
Thread: PG29
Thickness (mm): 49.5
Temperature Range: -40 to 120°C (-40 to 248°F)
Standard Package: 20
Thread Type: PG
For tube size (NW): 29
Gland Type: Straight
Thread Length (mm): 15
Overall Length (mm): 52

Part Number 3805016
