    2B30UR - UL1077 Recognized Supplementary Protector
    2B30UR - UL1077 Recognized Supplementary Protector
    2B30UR - UL1077 Recognized Supplementary Protector
    2B30UR - UL1077 Recognized Supplementary Protector
    2B30UR - UL1077 Recognized Supplementary Protector
    2B30UR - UL1077 Recognized Supplementary Protector

    2B30UR - UL1077 Recognized Supplementary Protector

    • DIN Rail Mounted
    • 17.5mm width per pole
    • Thermal Magnetic
    • 0.3-60A / 480Y/277V AC, 50/60Hz
    • 10kA Short Circuit
      Withstand Capacity
    • Applications (on the load side of Branch Circuit Protection) include:
      Sensitive Electronics, Power Supplies, Appliance circuits, etc.

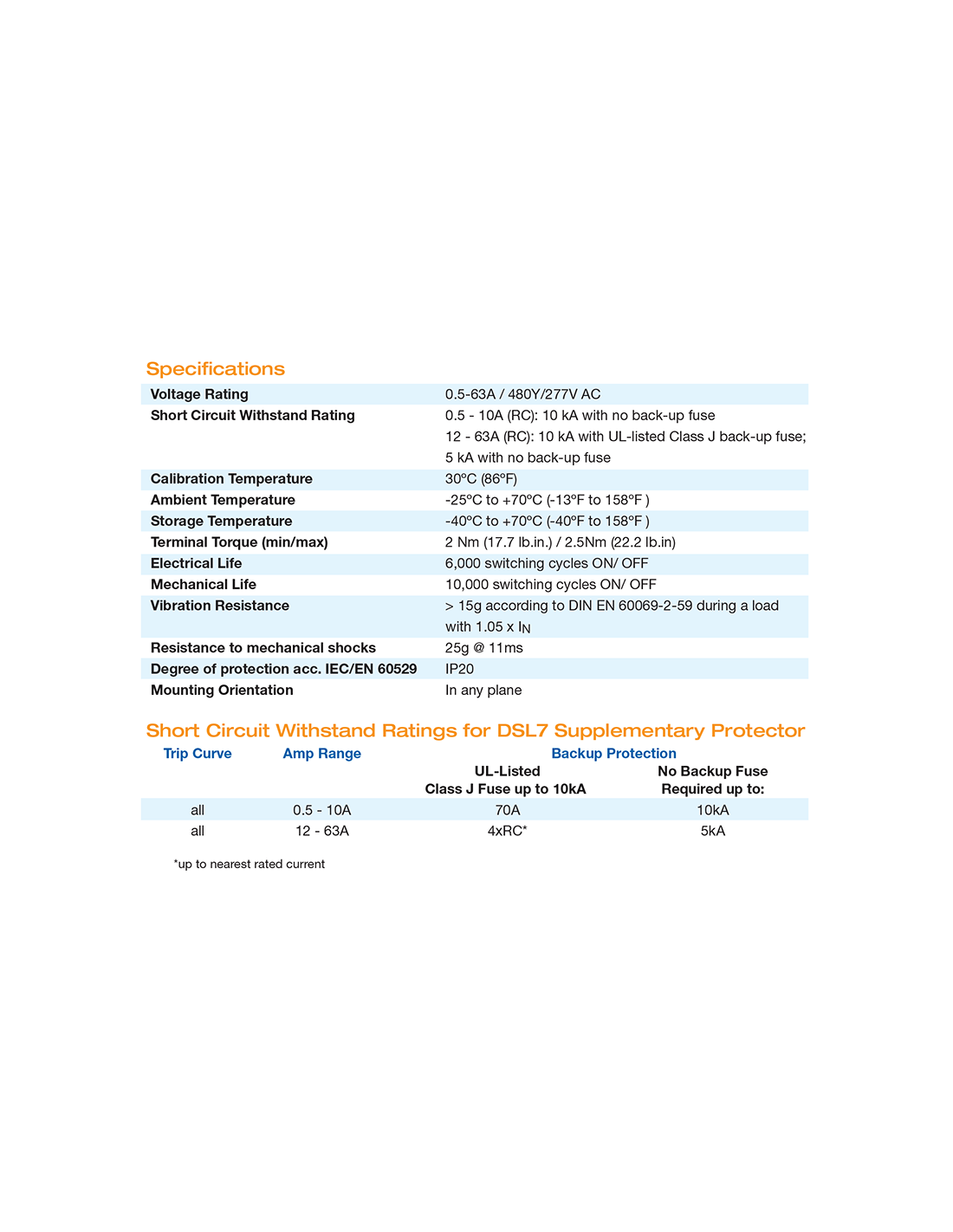

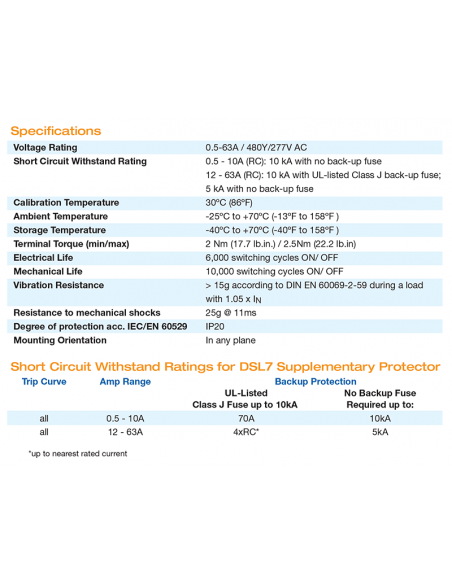

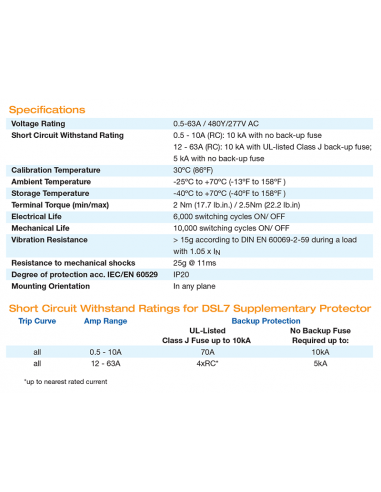

    DATA SHEET

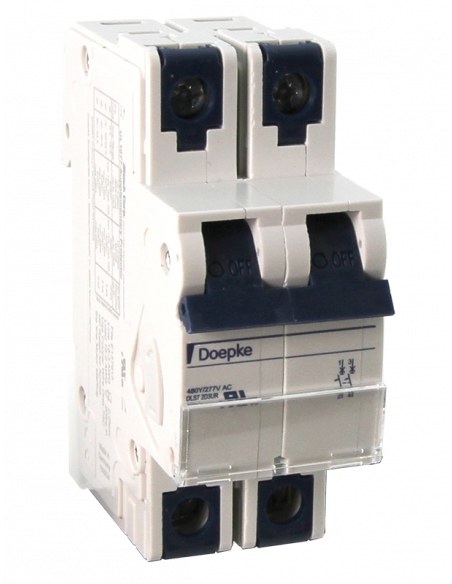

    Product photo imprint will vary depending on part number selection.



    UL Breaker Approval
    UL 1077
    Trip Charateristic
    B-Trip
    Rated Current
    30A
    Rated Voltage - Breakers
    480 Y/277V AC
    Electrical Current Type
    AC
    Breaker Poles
    2 poles
    2B30UR
