KV4600 Series
KV4612

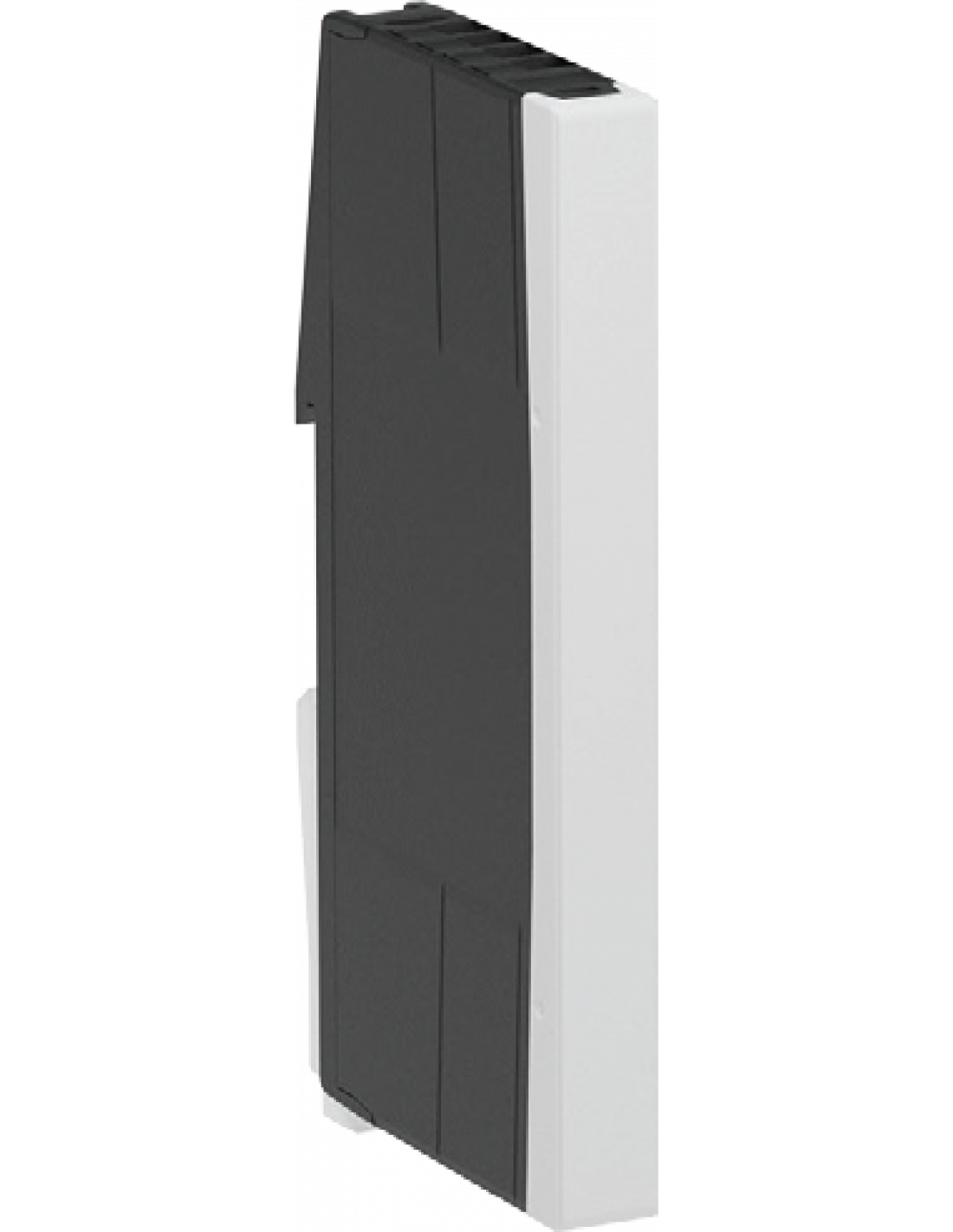

The multifunctional, modular enclosure system with overall widths of 12.5 / 17.5 / 22.5 mm are particularly suitable for modern control and industrial IoT applications as well as a number of other applications - including as a single stand-alone enclosure solution. Reduce your installation effort - with just a few enclosure components to the finished device. Increase your degree of automation - the push-in terminals meet the high requirements of the reflow soldering process. Individuality - customer-specific adaptations can be realized in a simple and cost-effective way.
HIGHLIGHTS
- Module widths from 12.5 mm and different installation depths available
- Usage of up to two circuit boards per enclosure width
- High contact density due to the use of compact push-in terminals
- Light conductor concept - high display density with minimum space requirements

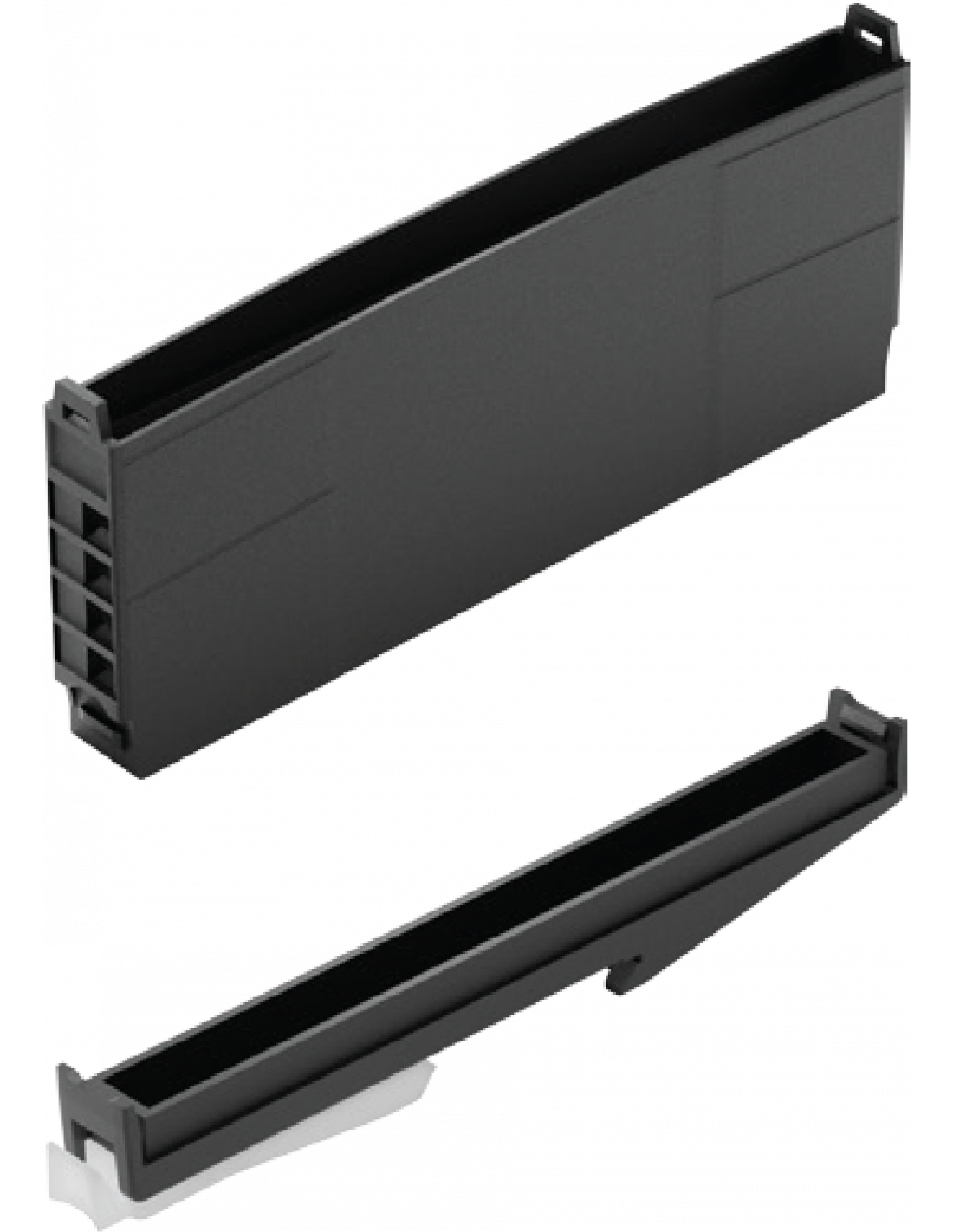

- Common bus concepts can be integrated into the bottom assembly
- Optionally sealable, tiltable front cover (manipulation protection)
- Optional mounting rail bus system (In-Rail-Bus)
- Easy and cost-effective realization of customer-specific adaptations.
- Definition of the enclosure width and depth based on your space requirements.

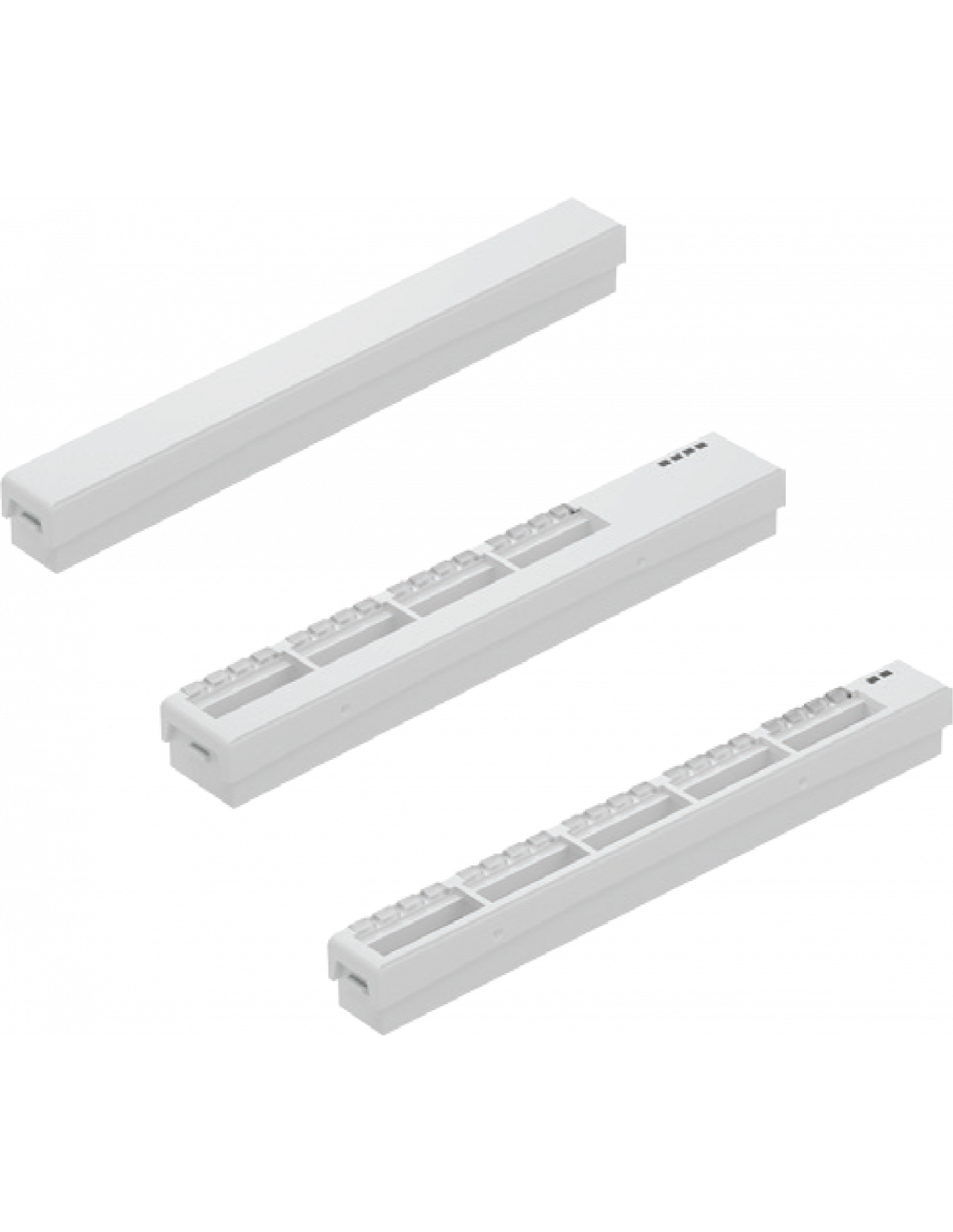

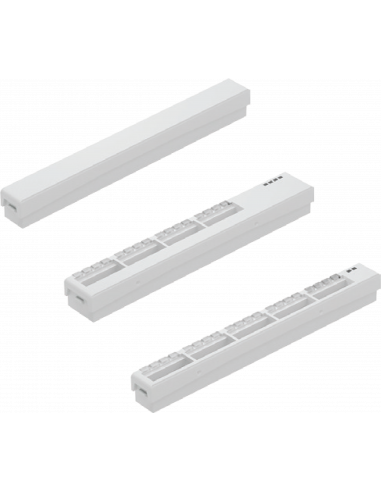

- Design the front plate according to your needs. The large front plate offers space for the individual arrangement of breakouts. No matter if for terminals, light conductors, or integrated communication interfaces.

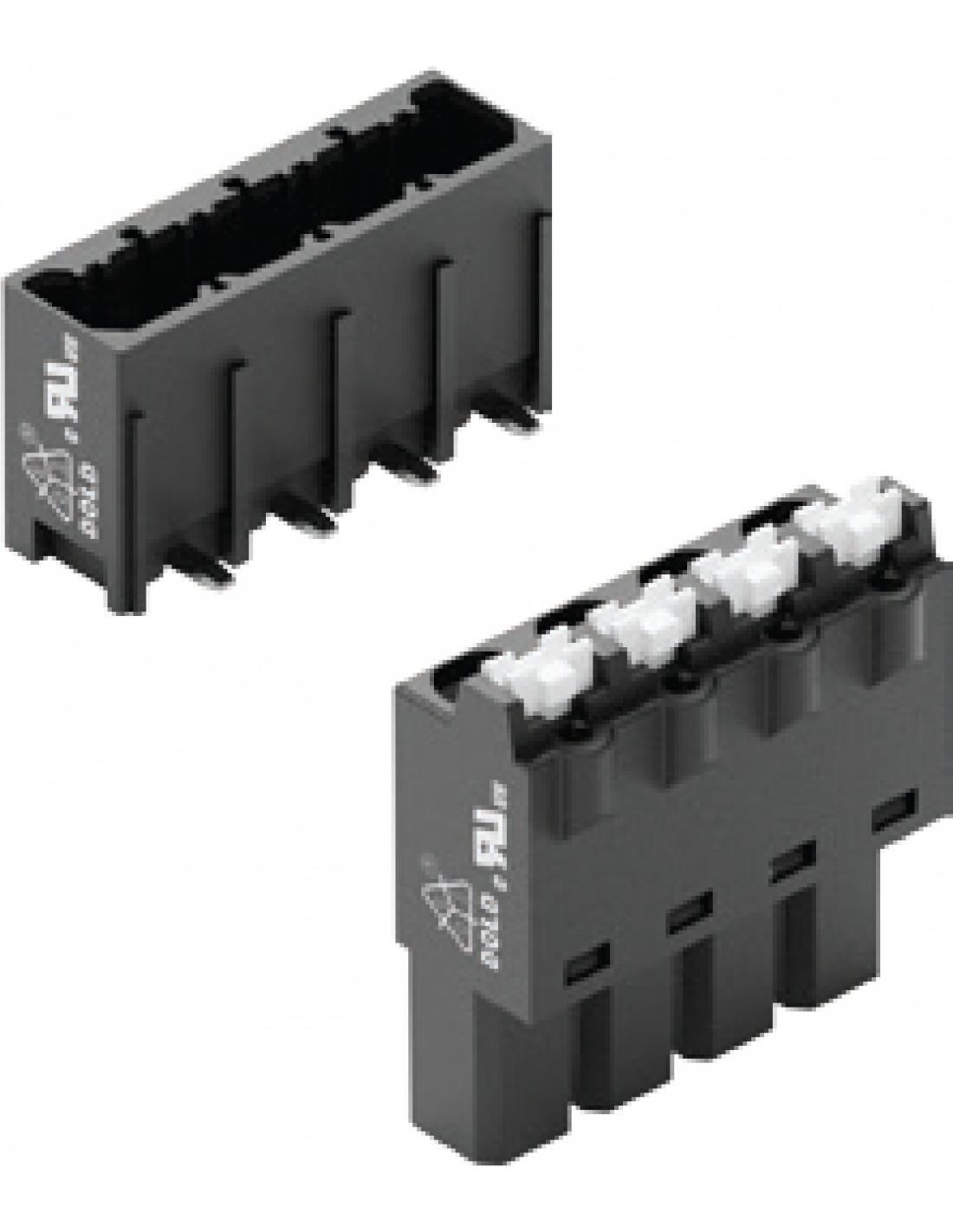

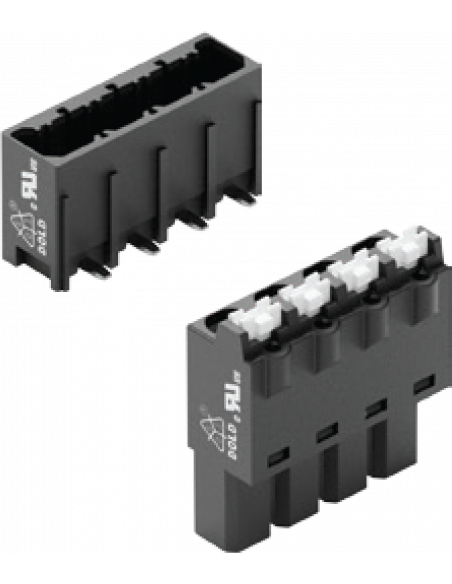

- Define the number of terminal points. The push-in terminals are available with different numbers of pins and pin spacings of 3.5 and 5.08 mm. Alternatively, we also offer a pluggable model in 5.0 mm pin spacing. In order to avoid mismating, they can optionally be supplied in pre-coded design.
- Do you plan the networking of several module units? Our optionally available In-Rail-Bus system can be ordered with 5 or 8 conductor paths. Alternatively, common bus concepts can be integrated as well.
- There are different accessories available. A variety of light conductor variants, grounding springs or sealable transparent covers. Further accessories on request.
- Add custom marking. The front cover can be printed with your logo, terminal identication and more.
- It can even be printed in custom colors. The base of the enclosure has plenty of room to print instructions, diagrams or logos as well.
- Send us your ideas as a sketch or a 3D-model. We will be happy to provide goal-oriented support for the design-in process.
