MVS152-10-H
MVS152-10-H

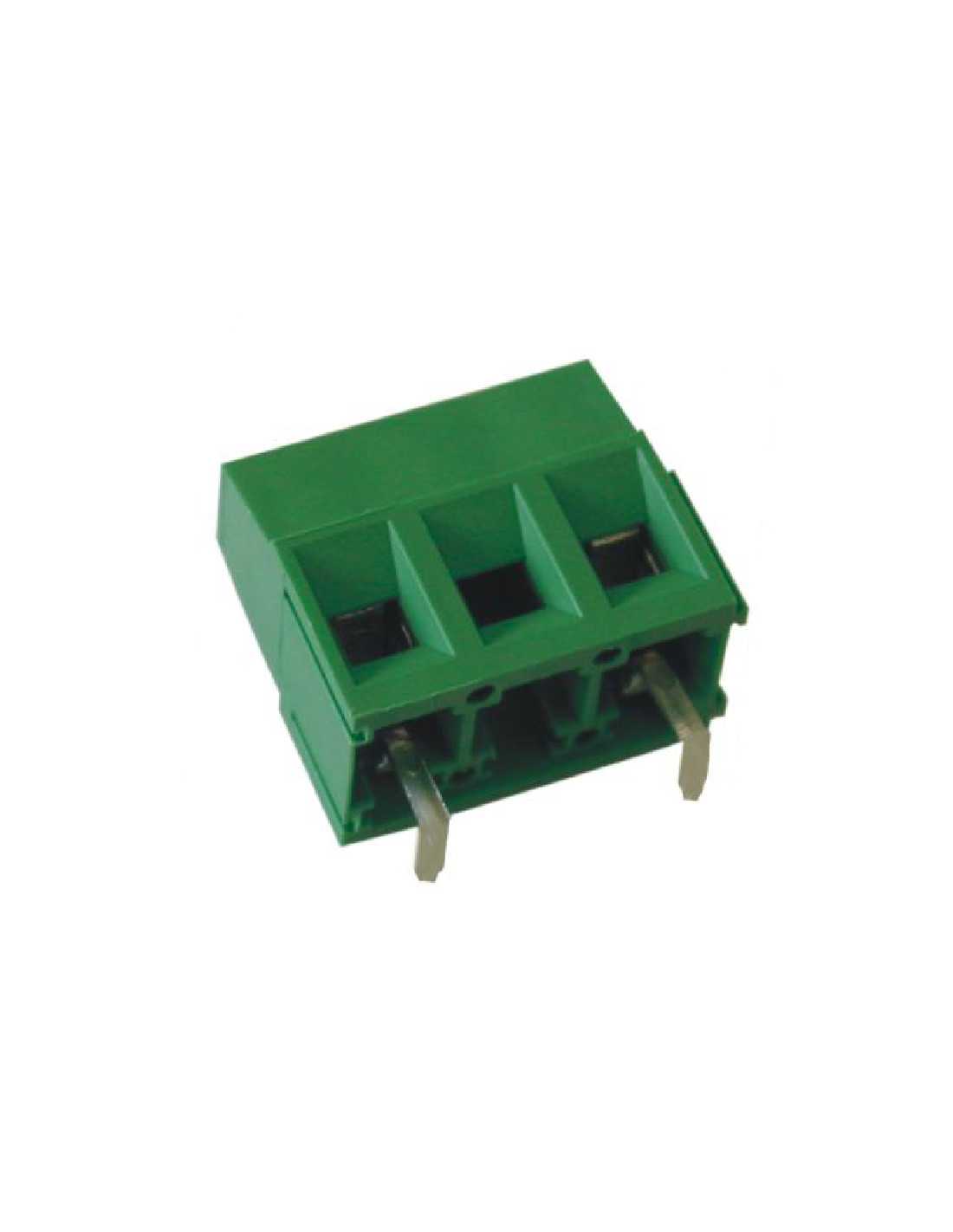

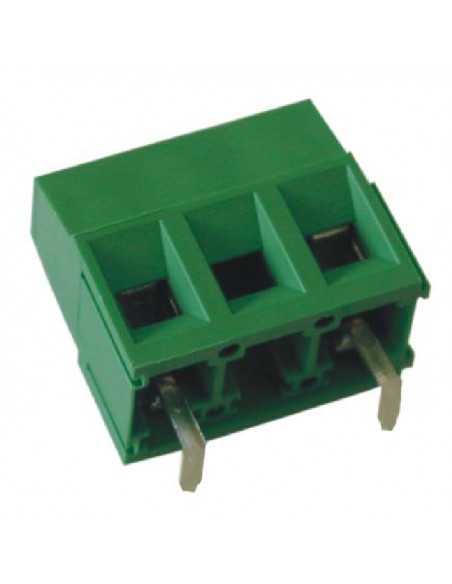

PCB Term Blk, 10.00mm, 2 Pole, Top wire, green Contact Altech for 3D Step File at info@altechcorp.com |
Related products and accessories
|
|
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 10.00mm
- Connection Type
- Cage Clamp
- Series
- MVS15
- Poles
- 2
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 16
- max Wire size solid AWG
- 16
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 1.50
- max Wire size solid sqmm
- 2.50
- Current Rating UL
- 17.5A
- Voltage Rating UL
- 600V
- Current Rating IEC
- 17.5A
- Voltage Rating IEC
- 750V
- Height
- 8.90mm
- Length
- 15.00mm
- Number Rows
- 1
- Mounting
- horizontal
- Wire Entry
- 90°
- PCB Layout
- Linear
- Solder Pin Length
- 3.85mm
- PCB Hole Size
- 1.50mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 100
- Packaging
- Carboard Box
- Weight (kg)
- 0.002300
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
