MVE158-10-V-L
MVE158-10-V-L

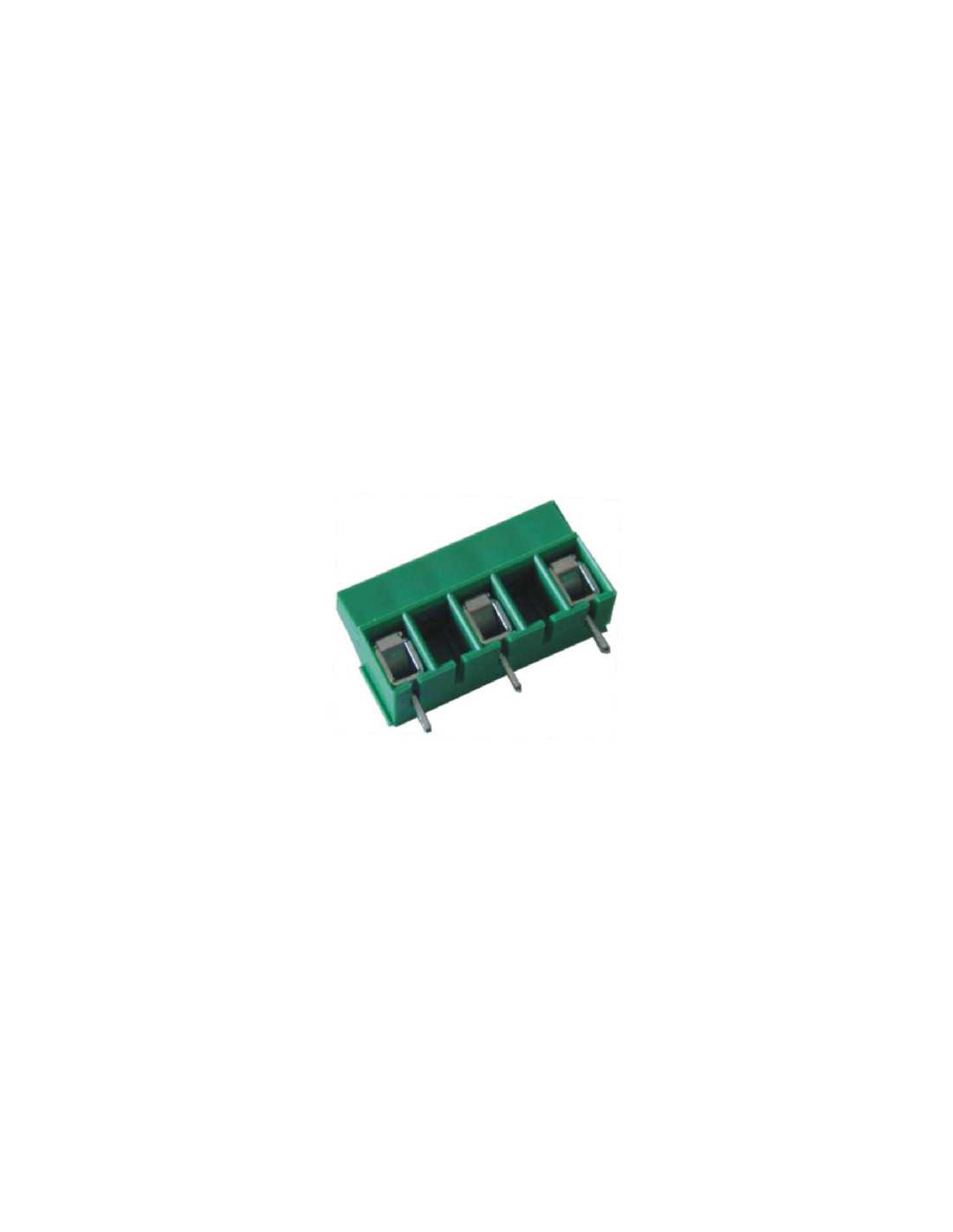

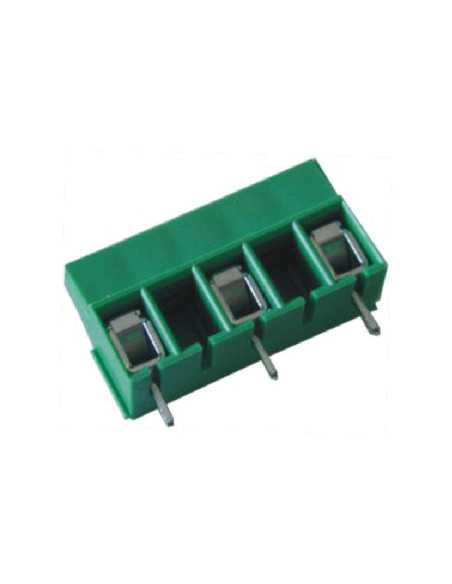

PCB Term Blk, 10.00mm, 8 Pole, Front wire, green Contact Altech for 3D Step File at info@altechcorp.com |
Related products and accessories
| 20A, 600V, 14-30AWG, 13.5mm height, no dovetail |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 10.00mm
- Connection Type
- Box Clamp WP
- Series
- MVE15
- Poles
- 8
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 14
- max Wire size solid AWG
- 14
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 2.50
- max Wire size solid sqmm
- 2.50
- Current Rating UL
- 20A
- Voltage Rating UL
- 600V
- Current Rating IEC
- 17.5A
- Voltage Rating IEC
- 750V
- Height
- 13.50mm
- Length
- 75.00mm
- Number Rows
- 1
- Mounting
- Vertical
- Wire Entry
- 0°
- PCB Layout
- Linear Center
- Solder Pin Length
- 4.00mm
- PCB Hole Size
- 1.50mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 50
- Packaging
- Carboard Box
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
