AIS18F05AP024-2M - M18 Flush Mount Cylindrical Sensor, DC - 3 WIRE-STANDARD
AIS18F05AP024-2M
AIS18F05AP024-2M - M18 Non-Flush Mount Cylindrical Sensor, DC - 3 WIRE-STANDARD
Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized
• IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection
• Short Circuit Protection
• Overload Protection
• Reverse Polarity Protection
• Wire Break Resistance
• Transient Voltage Protection
• Temperature Range: -25 to 70°C (-13 to 158°F)
DATA Sheet Link

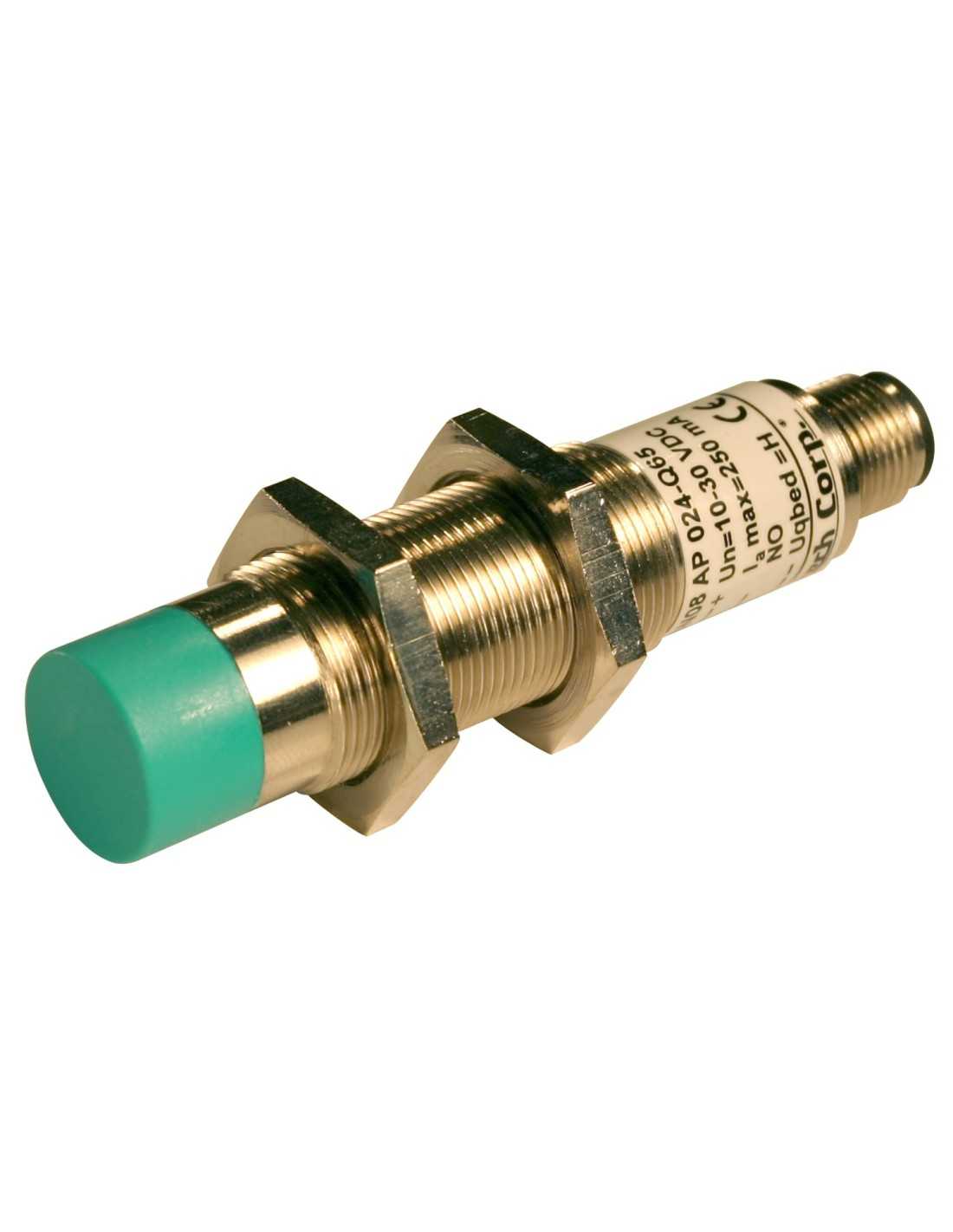

< Product photo may vary depending on part number selection.
Fixed Cable
PVC 2m (6ft. 6in.). For other cable lengths and/or PUR cable, please consult Altech. Supplied with brass, nickel-plated locknuts.
- Sensor - Sensing Distance
- 10mm (.39 in.)
- Sensor - Cable or Connector Style
- 65
- Sensor - Ripple Voltage
- ≤ 10%
- Sensor - Voltage Range
- 10-30V
- Sensor - No-Load Current
- ≤ 15mA
- Sensor -Max. Load Current
- 250 mA
- Sensor - Voltage Drop Across Sensor
- ≤ 2.5V
- Sensor - Max. Leakage Currrent
- 1μA
- Sensor - Switching Frequency
- 500 Hz
- Sensor - Hysterisis
- ≤0.5mm
- Sensor - Temperature Drift
- ≤±10μm/K
- Sensor - Repeatability
- ≤0.2mm
- Sensor - Output Configuration
- NPN - Normally Open / Complementary NO/NC
