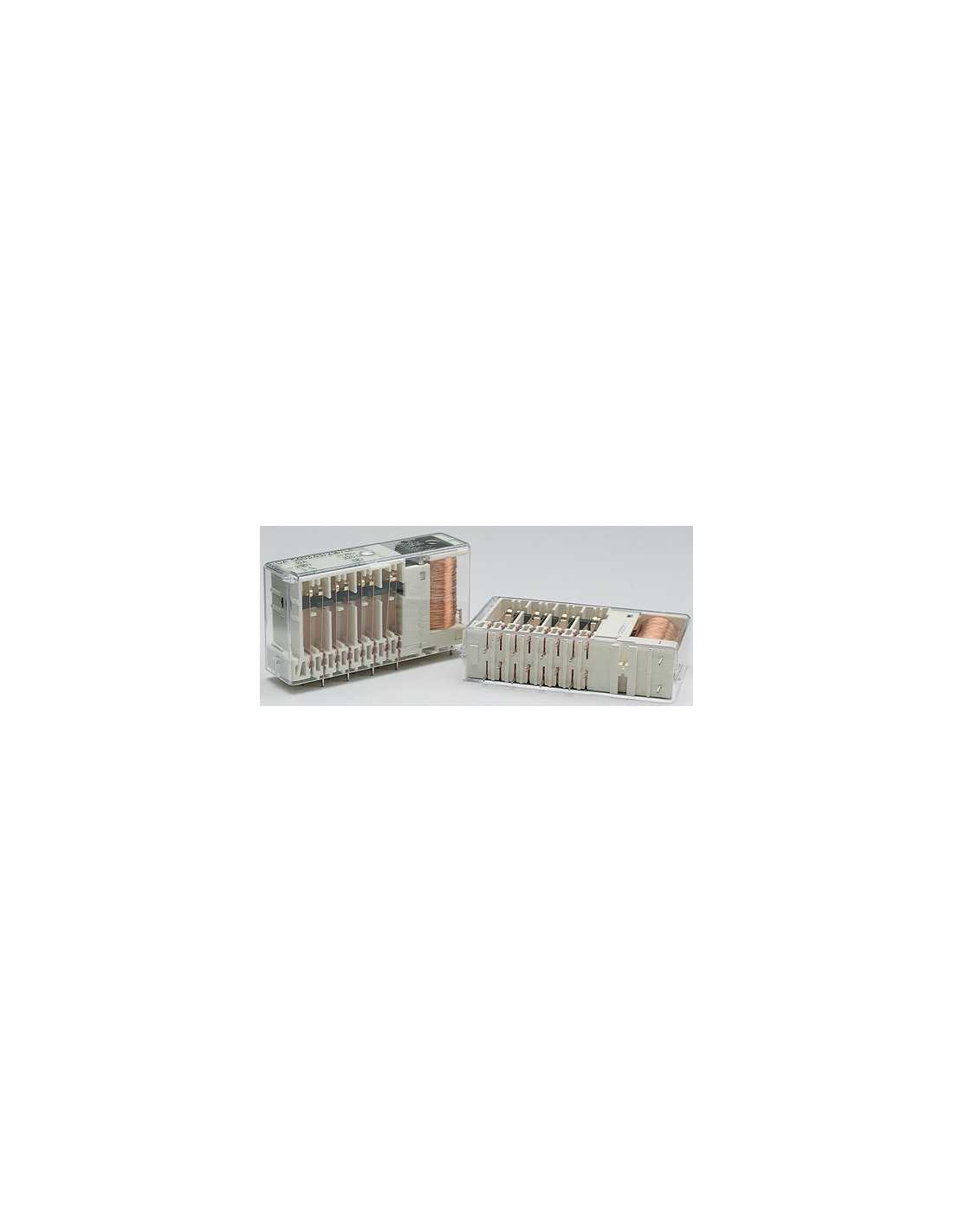

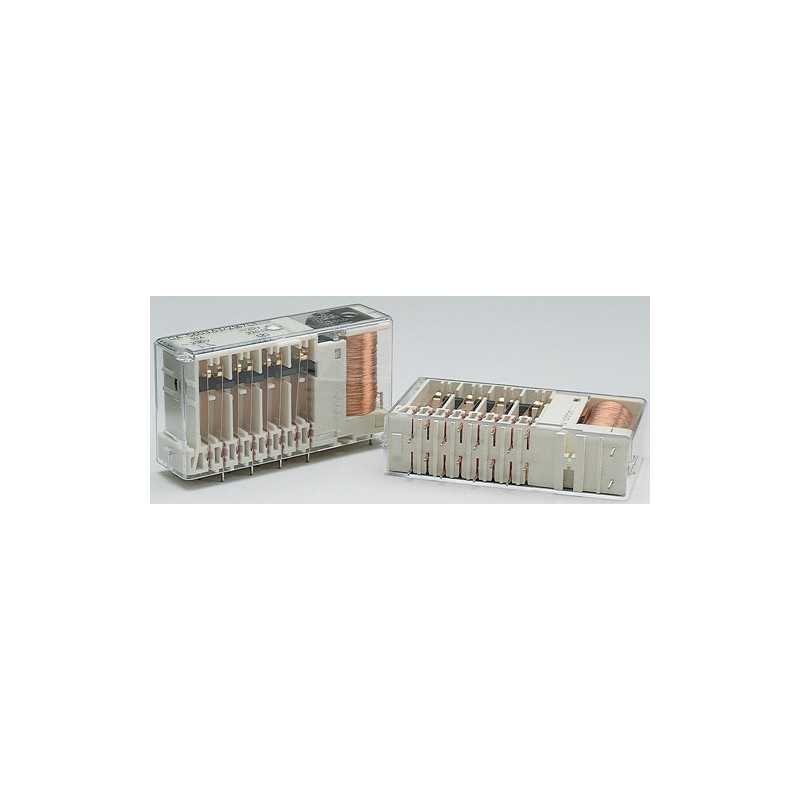

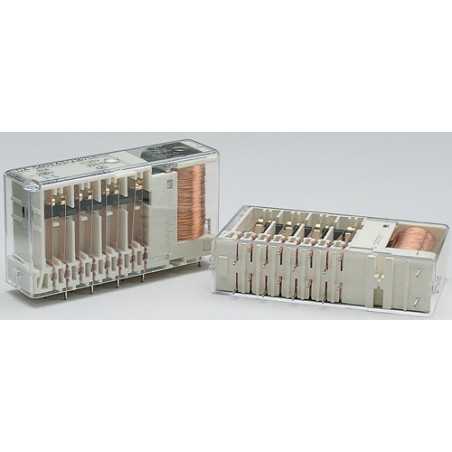

    Safety Relay : OA 5603 : 10A : 48V : 6 NO - 2 NC
    Safety Relay : OA 5603 : 10A : 48V : 6 NO - 2 NC
    Safety Relay : OA 5603 : 10A : 48V : 6 NO - 2 NC
    Safety Relay : OA 5603 : 10A : 48V : 6 NO - 2 NC
    Safety Relay : OA 5603 : 10A : 48V : 6 NO - 2 NC
    Safety Relay : OA 5603 : 10A : 48V : 6 NO - 2 NC

    Safety Relay : OA 5603 : 10A : 48V : 6 NO - 2 NC

    Contact Material

    Related products and accessories


    Current Rating
    10A
    Rated Voltage
    48V
    Contact Arrangement
    6 NO - 2 NC
    Voltage Range
    33.6- 76.8V
    Protection Rating
    RTIII solder line proof
    Series
    OA 5603
    Output Contacts
    8
    International Approvals
    TUV
    UL
    cUL
    Force-guided Contacts
    All gold flash plated
    Coil Resistance (10%)
    1800Ω
    56.OA03.4862C
