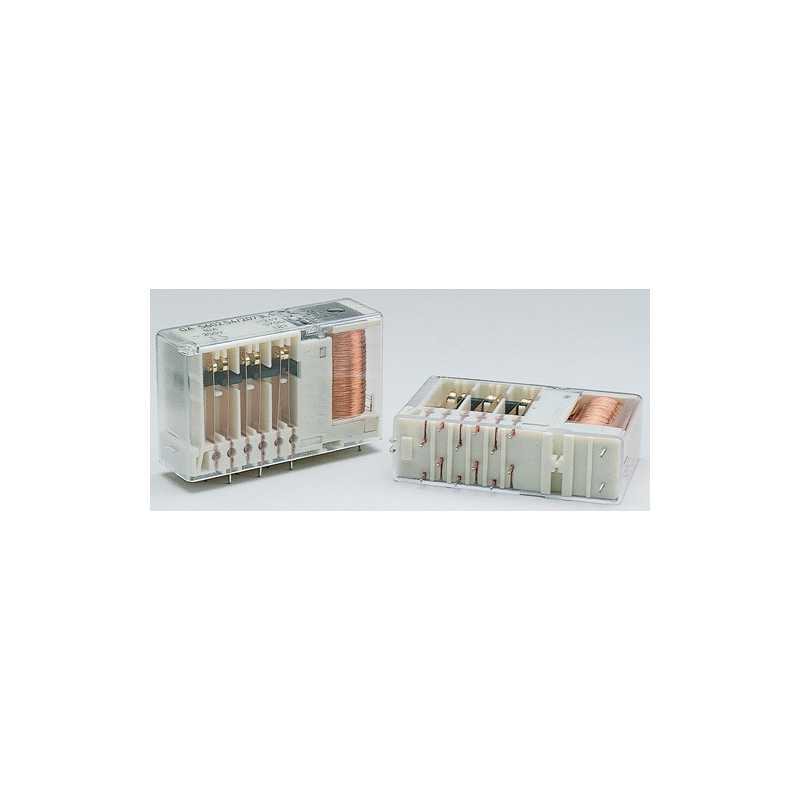

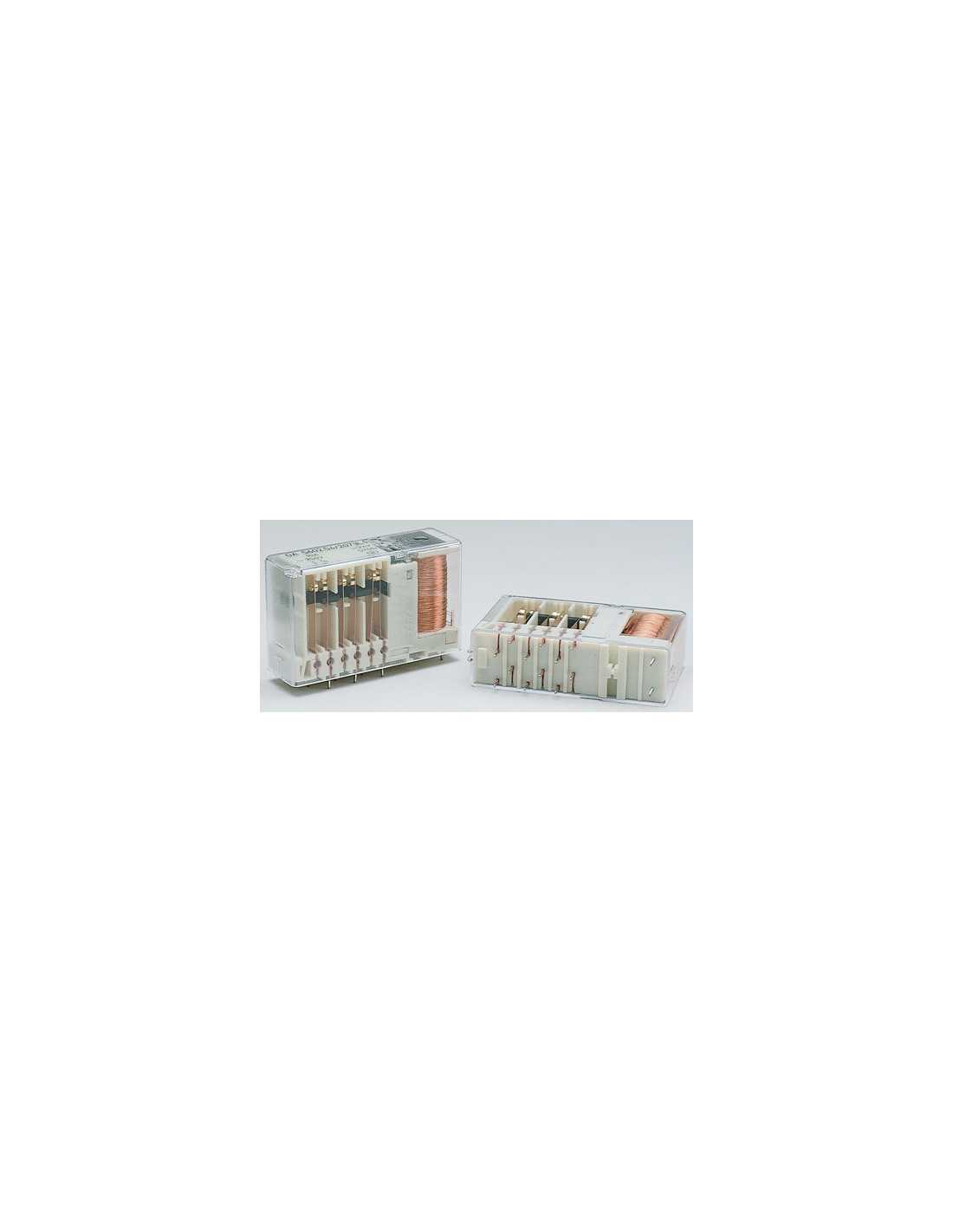

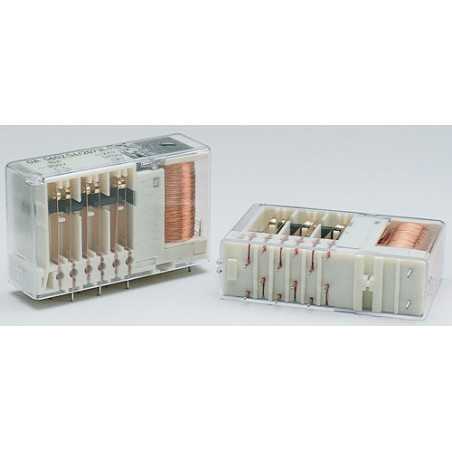

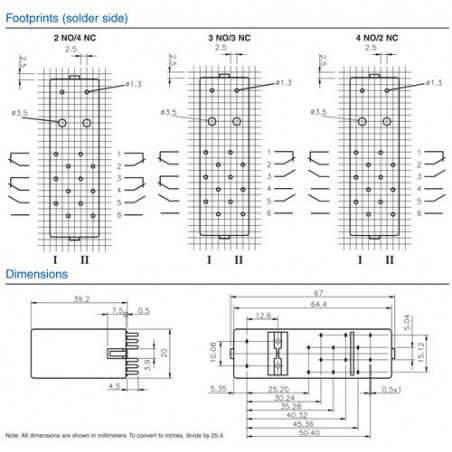

    Safety Relay : OA 5602 : 10A : 6V : 3 NO - 3 NC
    Safety Relay : OA 5602 : 10A : 6V : 3 NO - 3 NC
    Safety Relay : OA 5602 : 10A : 6V : 3 NO - 3 NC
    Safety Relay : OA 5602 : 10A : 6V : 3 NO - 3 NC
    Safety Relay : OA 5602 : 10A : 6V : 3 NO - 3 NC
    Safety Relay : OA 5602 : 10A : 6V : 3 NO - 3 NC

    Safety Relay : OA 5602 : 10A : 6V : 3 NO - 3 NC

    Contact Material

    Current Rating
    10A
    Rated Voltage
    6V
    Contact Arrangement
    3 NO - 3 NC
    Voltage Range
    4.2- 9.6V
    Protection Rating
    RTIII solder line proof
    Series
    OA 5602
    Output Contacts
    6
    International Approvals
    TUV
    UL
    cUL
    Force-guided Contacts
    All gold flash plated
    Coil Resistance (10%)
    35Ω
    56.OA02.0633C
