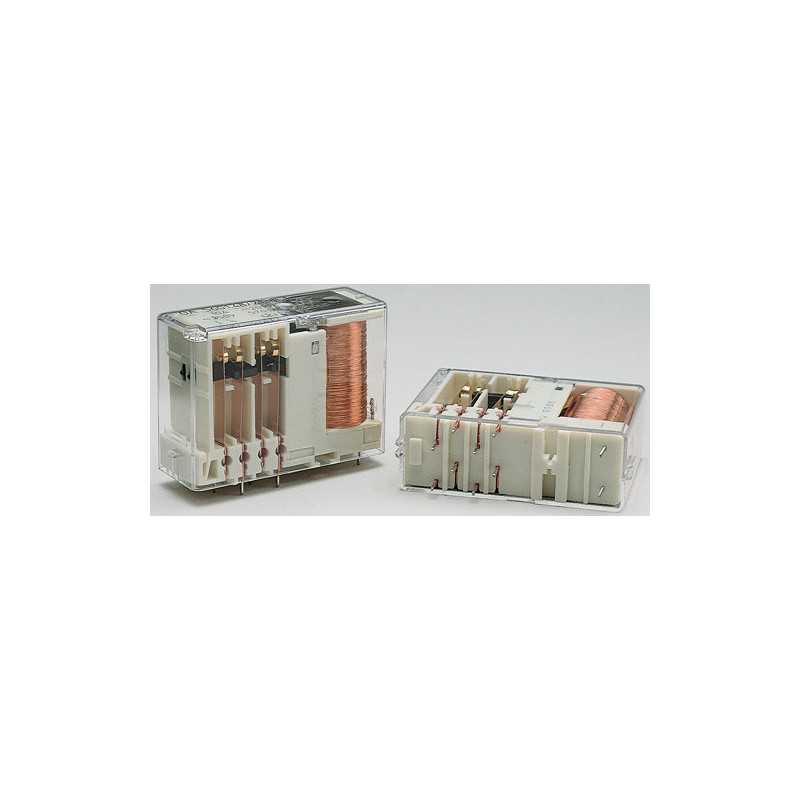

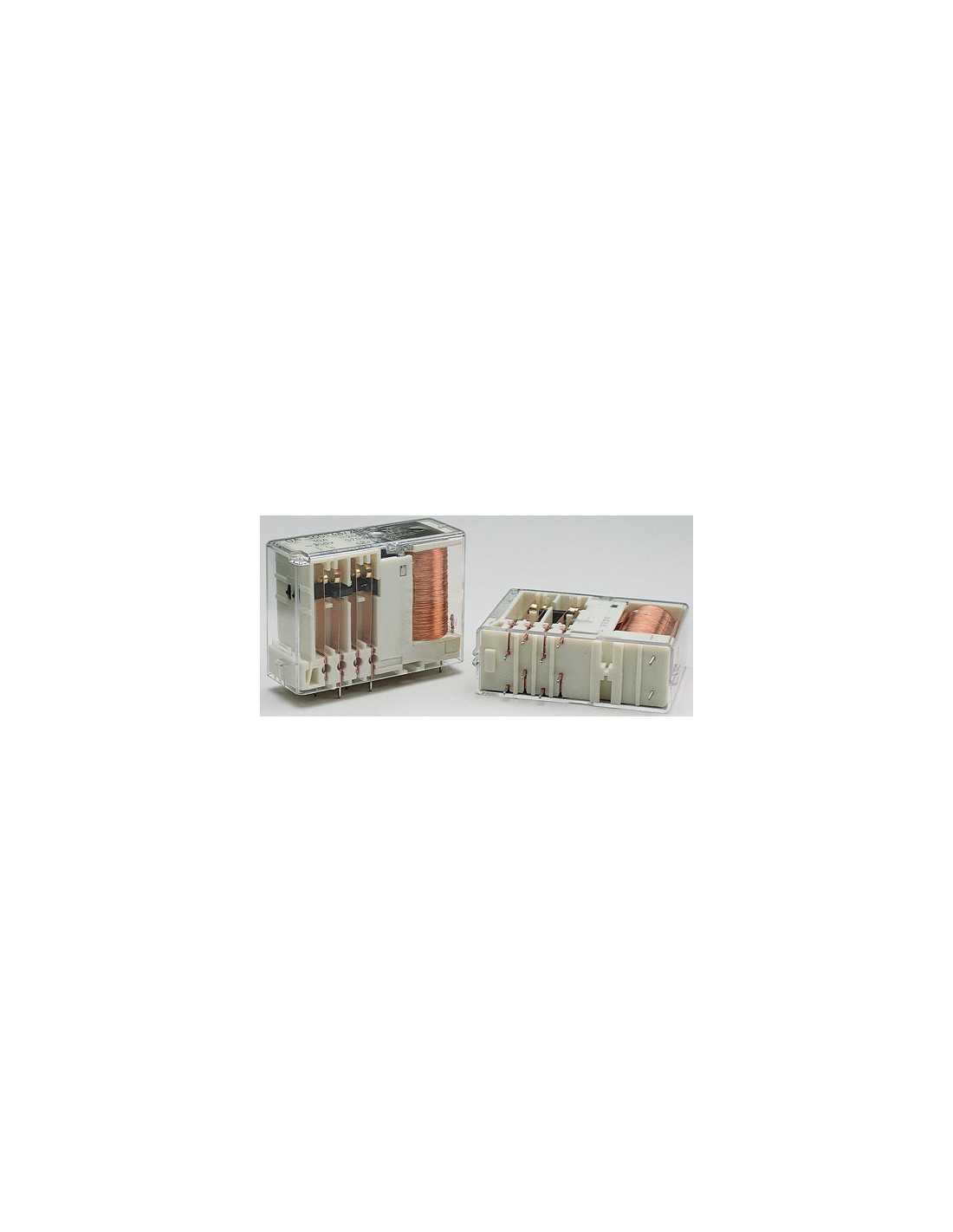

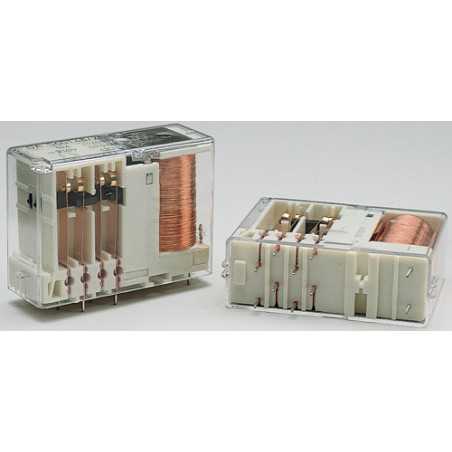

    Safety Relay : OA 5601 : 10A : 48V : 3 NO - 1 NC
    Safety Relay : OA 5601 : 10A : 48V : 3 NO - 1 NC
    Safety Relay : OA 5601 : 10A : 48V : 3 NO - 1 NC
    Safety Relay : OA 5601 : 10A : 48V : 3 NO - 1 NC
    Safety Relay : OA 5601 : 10A : 48V : 3 NO - 1 NC
    Safety Relay : OA 5601 : 10A : 48V : 3 NO - 1 NC

    Safety Relay : OA 5601 : 10A : 48V : 3 NO - 1 NC

    Contact Material

    Current Rating
    10A
    Rated Voltage
    48V
    Contact Arrangement
    3 NO - 1 NC
    Voltage Range
    33.6- 76.8V
    Protection Rating
    RTIII solder line proof
    Series
    OA 5601
    Output Contacts
    4
    International Approvals
    TUV
    UL
    cUL
    Force-guided Contacts
    All gold flash plated
    Coil Resistance (10%)
    2880Ω
    56.OA01.4831C
