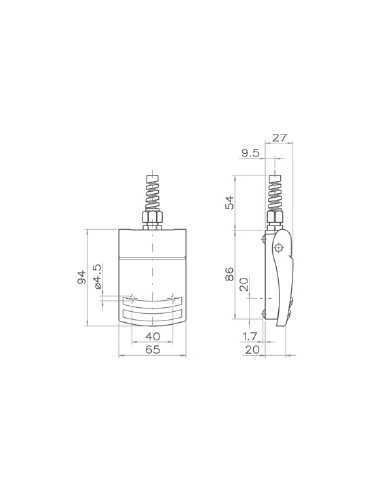

51.607 - FM1 Compact, one pedal foot switch
Standard Features
- Housing: Black ABS body with a variety of pedal colors
- Protection Level: IP 43 and IP 65
- Switch Insert: Snap action microswitch, UL/CSA approved
- Electrical Rating: 5A/125-250V AC (If used with appropriate cable, see cable chart on page 29)
- Contact Types: Momentary, maintained, or two stage momentary
- Circuit: SPDT-SB, DPDT-SB, 2x SPDT-SB
- Strain Relief: Vinyl sleeve
- Cable: - Multi conductor, PVC, SJT, 2 m (6 ft. - 6 in.) - Without Cable
- Temperature Range: -20°C up to +80°C (-4°F up to +176°F)
DATA Sheet Link
< Product photo may vary depending on part number selection.
Options
- Protection Level: IP 67
- Switch Insert: Gold plated contacts for low current applications
- Electrical Rating: 0.1A/125V AC Silver-Nickel plated contacts
- Electrical Rating: 10.1A, (1/4HP)/125-250V AC
- Strain Relief: Standard straight-through (IP 68), Bend protection (IP 68), Trumpet Pull/Bend protection (IP 68)
- Cable: Shielded cable Per customer specifications
- Connectors: Per customer specifications
- IEC 60601-1 certified and UL 2601-1 recognized
- IEC 60601-1 general requirement for safety
- IEC 60601-6 usability
- IEC 60601-2-2 HF surgical equipment
- IEC 60601-2-22 laser equipment (surgical, cosmetic, therapeutic and diagnostic)
- IEC 60601-2-43 x-ray equipment
- Foot Switch - Circuit Function
- DPDT-SB
- Foot Switch - Electrical Ratings
- 5A/250V AC
- Foot Switch - Switch/Contact Type
- Snap Action, Momentary
- Foot Switch - Cable
- None (Solderable)
- Foot Switch - Protection Level
- IP 43
