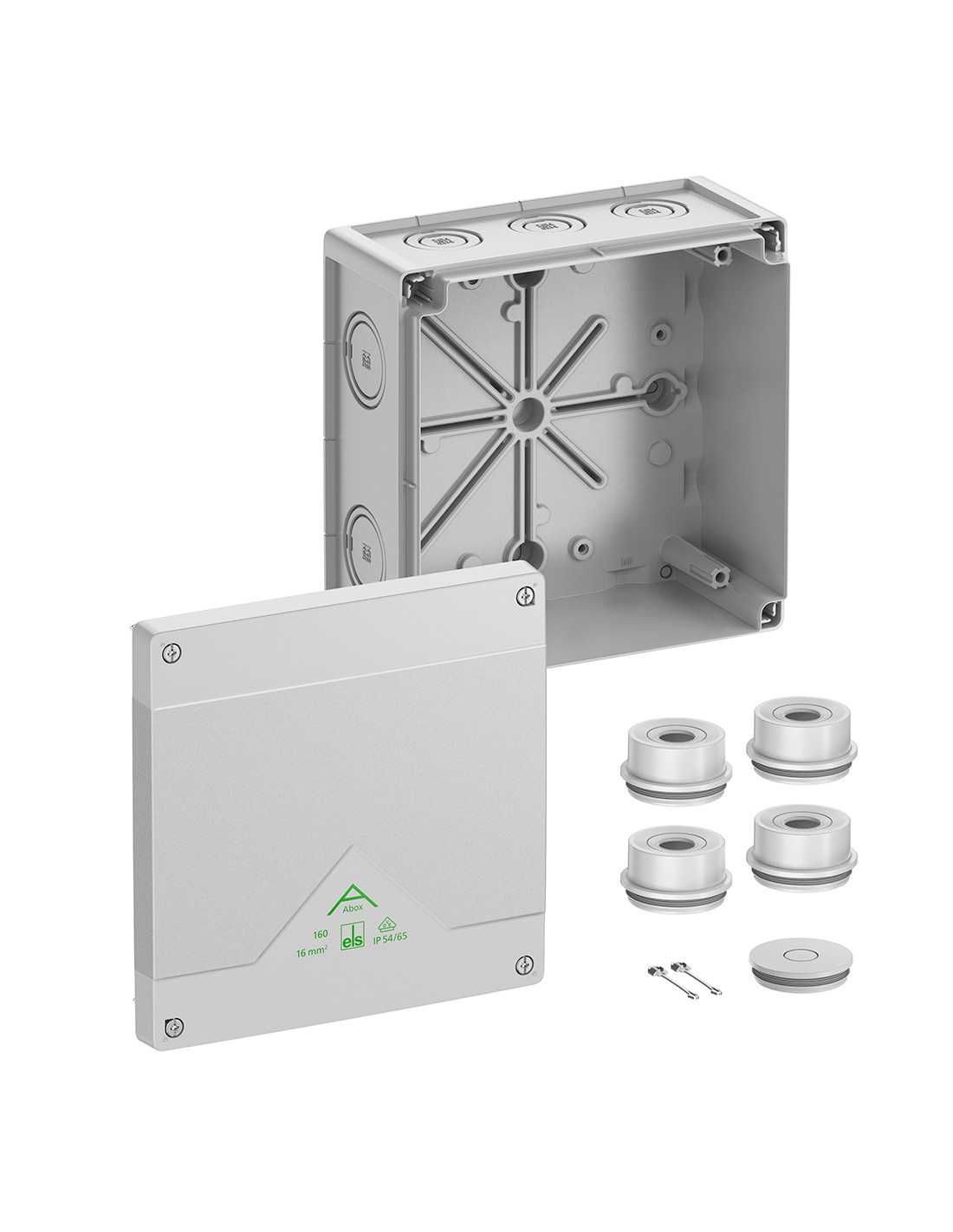

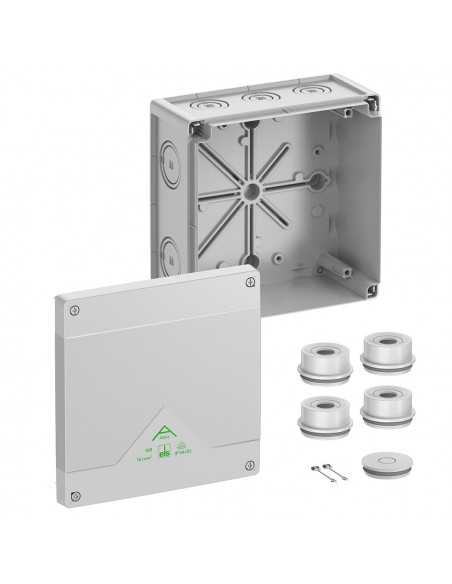

    Abox 160 - 816-400-01
    Abox 160 - 816-400-01

    Abox 160 - 816-400-01

    816-400-01

    Standard Features

    • Protection Level: IP55* / IP66**
    • Technical: Knockout Sidewalls (M20/M32/M40)
    • UL Recognized Enclosure Material: Polypropylene
    • Gasket Material: Thermoplastic Elastomer
    • Color: Light Gray
    • Material Operating Temperature Range: Polypropylene -25˚C to 55˚C (-13˚F to 131˚F)
    • Included Accessories:
      (4) M40 Entry Spouts for Cables 17-30mm
      (1) M40 Sealing Plug
      (1) Cover Retainer

    * With Supplied Entry Spouts
    **As Equipped or With Optional IP66 Cable Glands

    Downloads:

    • Data Sheet

    • 3D STEP

    • 3D PDF


    Length (in)
    7.17
    Width (in)
    7.17
    Depth (in)
    3.54
    Length (mm)
    182
    Width (mm)
    182
    Depth (mm)
    90
    Material
    Polypropylene
    IP Protection
    IP55* / IP66**
    Outdoor Use
    NO
    UL approval
    NO
    NEMA 4X
    NO
    Series
    Abox
    Cover Color
    Light Gray
    Sidewalls
    Metric knockouts
    816-400-01
