    Abox 025 - 802-120-01
    Abox 025 - 802-120-01

    Abox 025 - 802-120-01

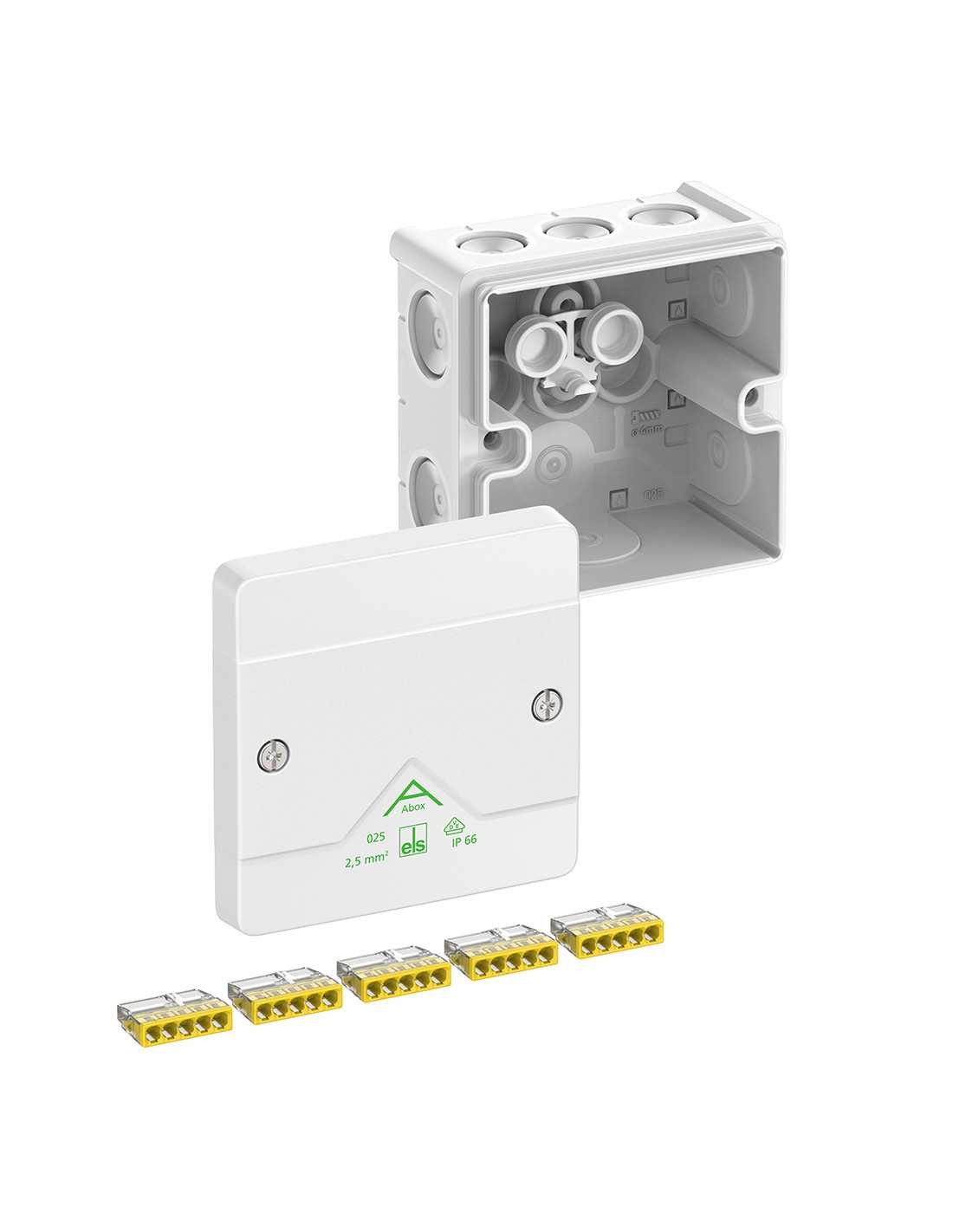

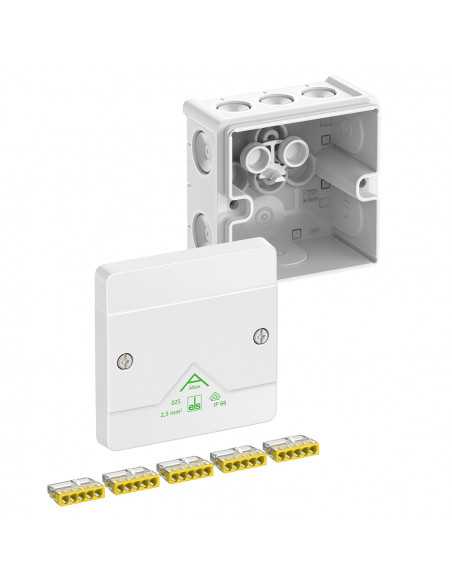

    Enclosure, Polystyrene, White, 5 pole terminal, Metric cable entries

    Standard Features

    • Protection Level: IP66
    • Technical: Self Sealing Soft Elastic Membranes Suitable for Metric Entry
    • Sealing Area: M16/M20 - 4 to 16mm
    • UL Recognized Enclosure Material: Polypropylene
    • Gasket Material: Thermoplastic Elastomer
    • Color: Light Gray, White or Black
    • Material Operating Temperature Range: Polypropylene -25˚C to 55˚C (-13˚F to 131˚F)

    Downloads:

    • Data Sheet

    • 3D STEP

    • 3D PDF


    Length (in)
    3.43
    Width (in)
    3.43
    Depth (in)
    2.05
    Length (mm)
    87
    Width (mm)
    87
    Depth (mm)
    52
    Material
    Polypropylene
    IP Protection
    IP66
    Outdoor Use
    NO
    UL approval
    NO
    NEMA 4X
    NO
    Series
    Abox
    Cover Color
    White
    Sidewalls
    Metric cable entries
    802-120-01
