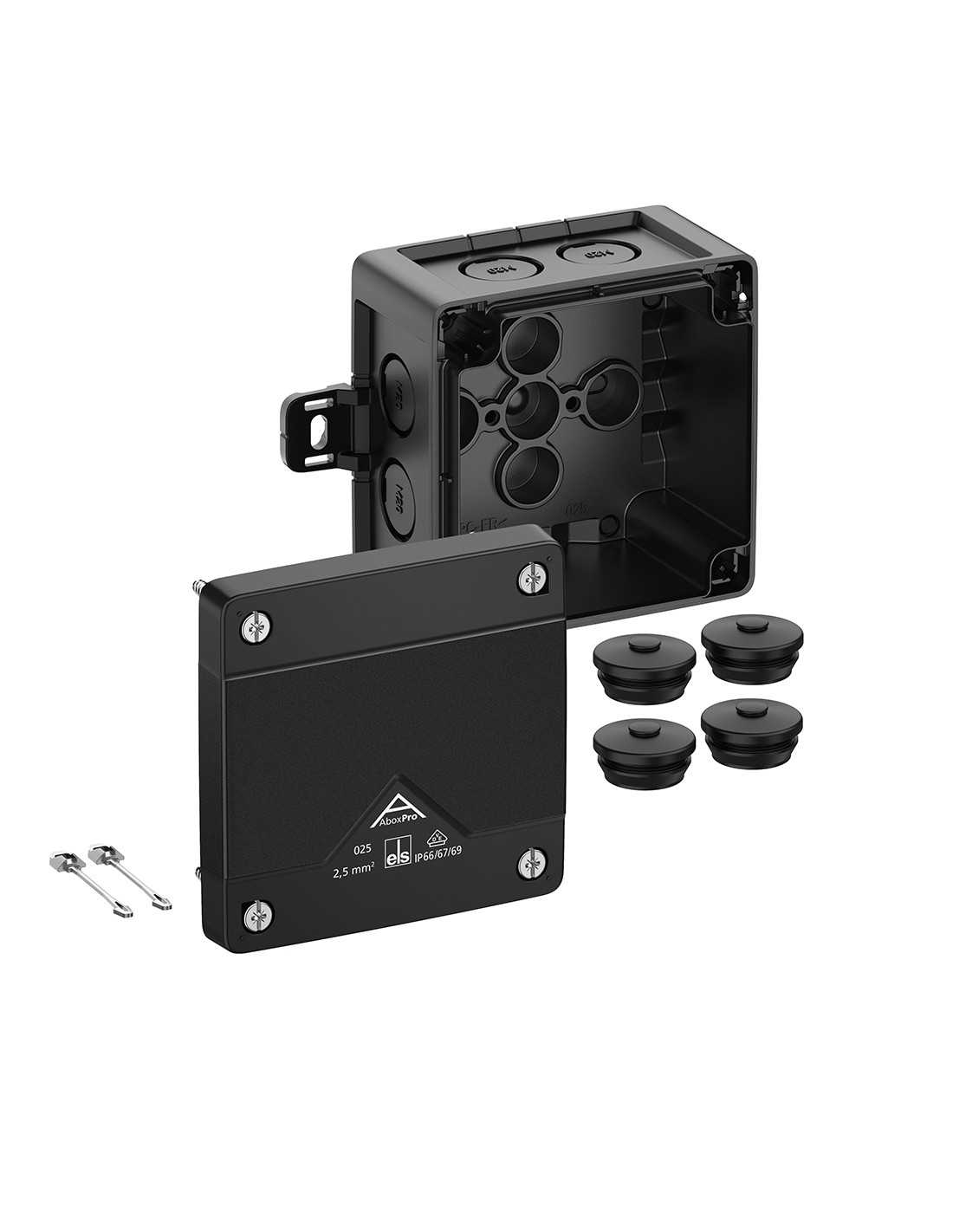

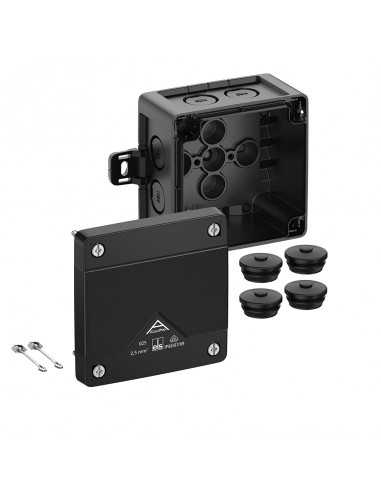

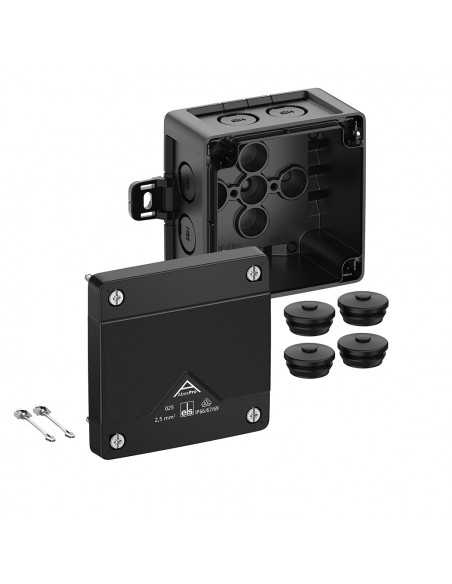

    Abox Pro 025AB - 402-001-01
    Abox Pro 025AB - 402-001-01

    Abox Pro 025AB - 402-001-01

    Standard Features

    • Protection Level: IP66/IP67/IP69
    • Technical:
      Knockout Sidewalls (M16/M20)
      Integral Mounting Tabs
    • UL Recognized Enclosure Material: Polycarbonate
    • Gasket Material: Thermoplastic Elastomer
    • Color: Light Gray or Black
    • Material Operating Temperature Range: Polycarbonate -35˚C to 80˚C (-31˚F to 176˚F)
    • Included Accessories:
      (4) M20 Double Membrane Seals for 7-13mm Cables
      Cover Retainer

    Downloads:

    • Data Sheet

    • 3D STEP

    • 3D PDF


    Length (in)
    3.62
    Width (in)
    3.62
    Depth (in)
    2.36
    Length (mm)
    92
    Width (mm)
    92
    Depth (mm)
    60
    Material
    Polycarbonate
    IP Protection
    IP66/IP67/IP69
    Outdoor Use
    YES
    UL approval
    NO
    NEMA 4X
    NO
    Series
    Abox
    Cover Color
    Black
    Sidewalls
    Metric cable entries
    402-001-01
