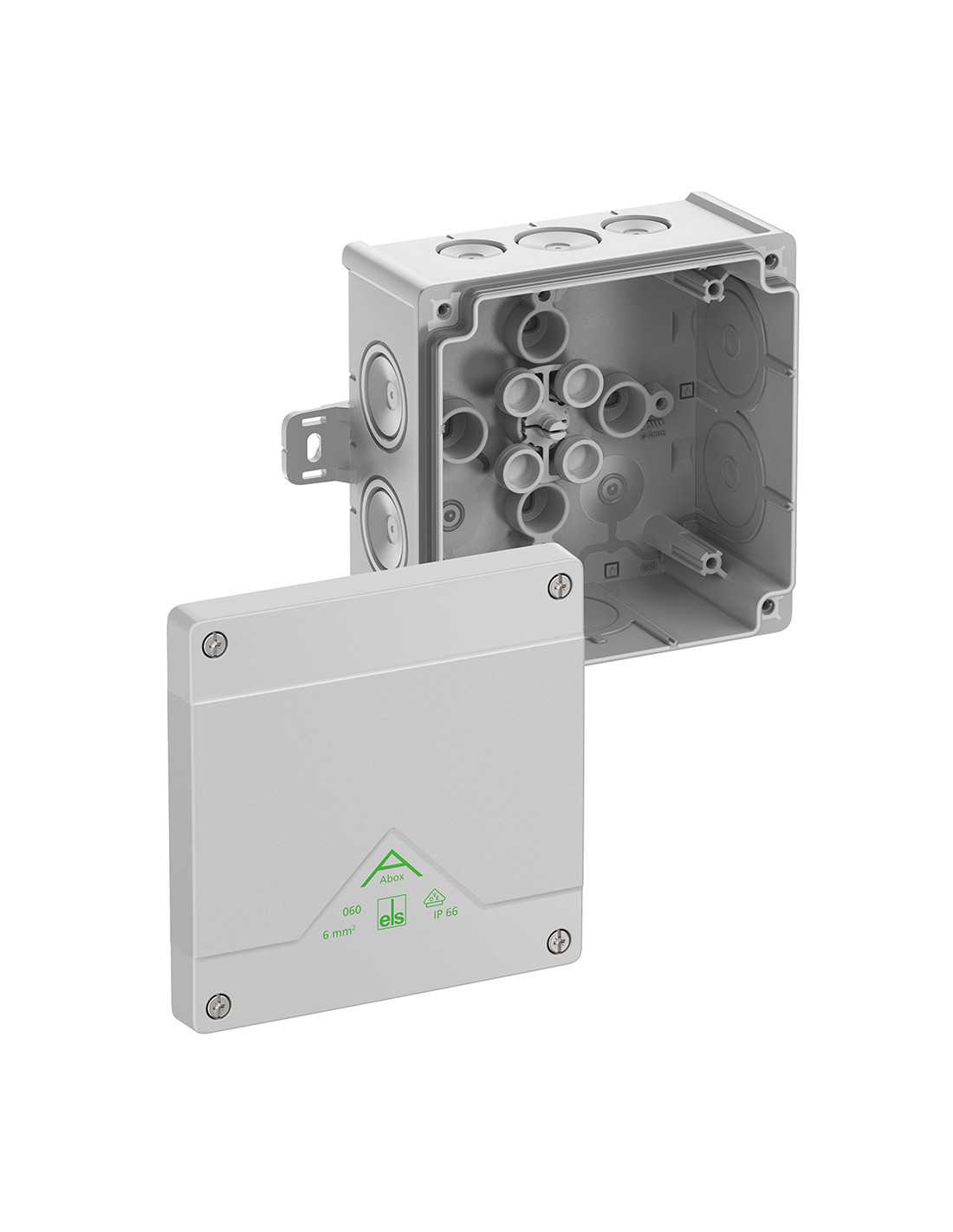

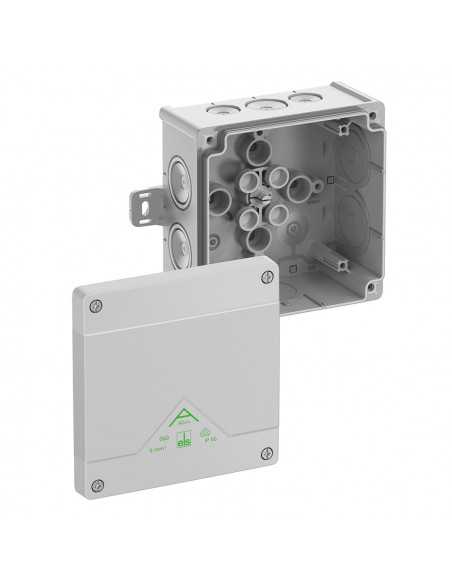

    Abox 060AB - 806-401-01
    Abox 060AB - 806-401-01

    Abox 060AB - 806-401-01

    Enclosure, Polystyrene, Gray, 5 pole terminal, Metric knockouts

    Standard Features

    • Protection Level: IP66
    • Technical: Self Sealing Soft Elastic Membranes
      Suitable for Metric Entry
      Integral Mounting Tabs
    • Sealing Area: M20/M25/M32 - 4 to 28mm
    • UL Recognized Enclosure Material: Polypropylene
    • Gasket Material: Thermoplastic Elastomer
    • Color: Light Gray, White or Black
    • Material Operating Temperature Range: Polypropylene -25˚C to 55˚C (-13˚F to 131˚F)

    Downloads:

    • Data Sheet

    • 3D STEP

    • 3D PDF


    Length (in)
    5.00
    Width (in)
    5.00
    Depth (in)
    2.76
    Length (mm)
    127
    Width (mm)
    127
    Depth (mm)
    70
    Material
    Polypropylene
    IP Protection
    IP66
    Outdoor Use
    NO
    UL approval
    NO
    NEMA 4X
    NO
    Series
    Abox
    Cover Color
    Gray
    Sidewalls
    Metric knockouts
    806-401-01
