ATEX

ATEX is a safety standard given to a certain component(s) for use in a potentially explosive atmosphere. ATEX rated components may have a hazardous area certification for one of the following: explosion-proof, flame proof, and others. This rating can be found on something electrical such as a fan, fuse, motor, circuit breaker, or even an enclosure.

Altech has a large selection of ATEX Products.

Cable Gland - ATEX Polyamide

Material:

Body: Polyamide 6
Seal: Neoprene Flat Seal: Neoprene
Color: Blue

Technical Properties:

Maximum strain relief through clamping range
Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
Gas tight and watertight

Applications:

Explosion endangered areas
Machines and devices
Measuring and control engineering
Plant installations

Material:

Body: Polyamide PA 6, 25 % Glass fiber Reinforced
Seal: Neoprene
ECA clamping ring: Polycarbonates

Characteristics:

PG/Metric thread
Extended thread available
Strain relief through clamping ring

Applications:

For explosion endangered areas according to EN 50014 and EN 50019
Machines and devices
Measuring and control engineering
Plant installations

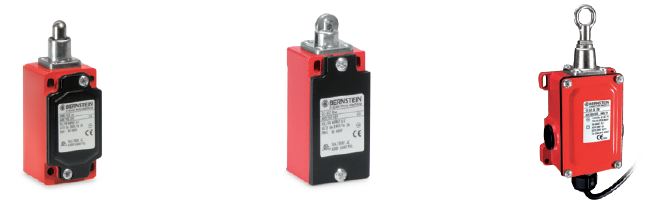

Position Switch series ENM2 and GC, Rope Pull Switch SD

Types ENM2 and GC

Standard switch conforming to DIN EN 50041
Standard actuator conforming to DIN EN 50041,
Type A, B, C, D
Protection class IP 66 to VDE 0470 T1
Aluminium pressure die-casting enclosure
Sheet aluminium cover
Actuator can be repositioned by 4 x 90°
Cable entry M20 x 1.5
Metal actuators for high loads

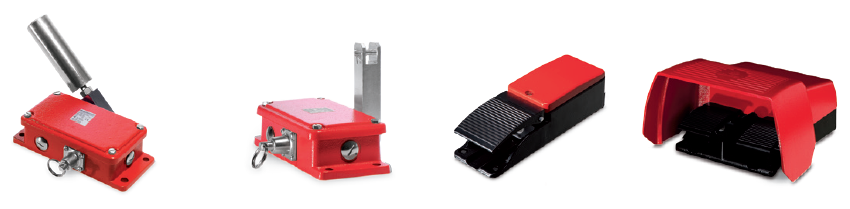

Foot Switch series F, Rope Pull Switch and Belt Alignment Switch series SI2

Technical Data SI2 Series

Identification Ex II 3D Ex tD A22 IP65 T80°C
Rated insulation voltage 400 V
Rated operating voltage 240 V AC
Conventional thermal current10 A
Utilization category /switching capacity:
AC 15 240 V / 3 A
Mechanical switching frequency max. 10 / min.
Mechanical service life
2 x 106 switching cycles
2 NC /2 NO
B10d: 4 million
Suitable for zones 22 (3D)
Admissible ambient temperature –20 °C to +60 °C
Protection class IP 65 according to IEC 60529
Metal enclosure

Technical data foot switches

Identification Ex II 2G Ex d IIC T6
Rated insulation voltage: 250 V
Rated operating voltage 230 V AC
Conventional thermal current 5 A
tilization category /switching capacity:
AC 15 240 V / 3 A
DC 13 250 V / 0,27 A
Mechanical switching frequency max. 50 / min.
Mechanical service life
2 x 106 switching cycles
1 NC /1 NO
B10d: 4 million
Suitable for zones 1, 2 (2G)
Admissible ambient temperature –20 °C to +60 °C
Protection class IP 66 according to IEC 60529
Aluminium pressure die-casting enclosure

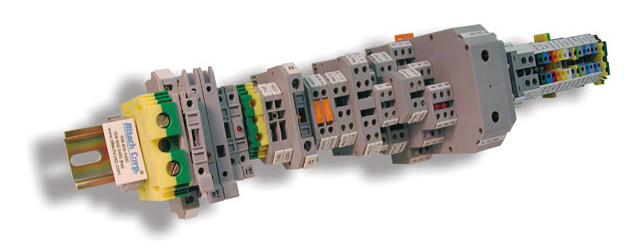

DIN Rail Terminal Blocks

Functions include:

Feed-Through
Color Feed-Through
Multi Level
Multi Connection
High current
Ground
Fuse
Disconnect
Integrated electronics, standard and custom
Three Wire Sensor
Diode
Indicator
From 300V, 10A, 22 AWG up to 600V, 145A, 1/0 AWG.

Aluminum and Polyester Enclosures

Features:

Protection class IP 66 to IEC 60529 (special seal) Identification
II 2G Ex e IIC Gb
II 2D Ex tD A21 IP 65 (CA)
II 1D Ex ta IIIC Da IP 66 Impact strength > 7 joules (CA)
Up to CP-230 4 joules
as from CP-240 > 7 joules Operating temperature –55 °C to +100 °C (special seal) CA
Enclosure colour: RAL 7001 (silver grey)
Powder-coating corrosion protection
CP/CPS
Enclosure colour: RAL 7000 (squirrel grey) CP
RAL 9005 (jet black) CPS
UV resistance

Functions include:

Feed-Through
Color Feed-Through
Multi Level
Multi Connection
High current
Ground
Fuse
Disconnect
Integrated electronics, standard and custom
Three Wire Sensor
Diode
Indicator
From 300V, 10A, 22 AWG up to 600V, 145A, 1/0 AWG.

Motor Disconnect Switch Aluminum Enclosures ATEX SWITCHES SAFETY SWITCHES / ISOLATORS 16-160 A

Features:

Conforming to EN 60079-0:2009, EN 60079-31:2009
Suitable for use in Zone 22 (Category 3D
IP66
Frontal impact test of 7 J
Available in aluminium and stainless steel
Available in yellow/red: Add Y/R at the end of product code
Padlockable (up to 3 locks)
Door interlock with defeat mechanism
Separate ATEX-enclosures upon request
ATEX CABLE GLANDS INCLUDED

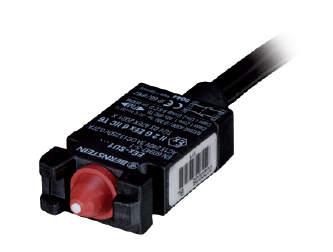

Snap-action Switch

Technical Data EEX-SU1Z

Certification Ex II 2G Ex d IIC T6
Rated insulation voltage 250 V
Rated operating voltage 230 V AC
Conventional thermal current 5 A
Utilization category / switching capacity: AC 15 240 V / 3 A; DC 13 250 V / 0,27 A
Mechanical switching frequency max. 120 / min.
Mechanical service life 2 x106 switching cycles
1 NC /1 NO
B10d: 4 million
Suitable for zones 1, 2 (2G )
Admissible ambient temperature –20 °C to +60 °C
Protection class IP 66 according to IEC 60529
PEI enclosure
