KO4070 Series 12 Terminal - Screw Clamp
12 Terminal, Standard Length Pins, 35 mm DIN Rail
Compact, cost effective enclosures are ideal for I/O circuits, relays, timers and other small control devices. The KO4070 series enclosures are available in three widths with single and multi-level terminals. They are supplied complete with 4 to 16 box clamp type terminals that are machine solderable.
• DIN Rail Mount
• Machine Solderable Terminals
• Compact, Snap-Together
• Integral PC Board Guides
• Standard Color: Light Gray
DATA Sheet Link

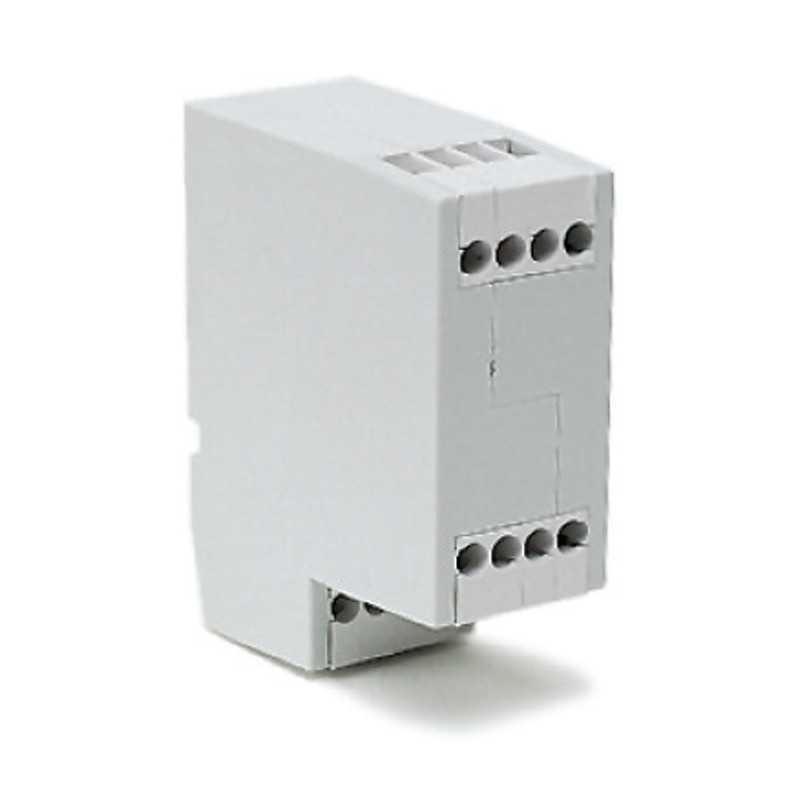

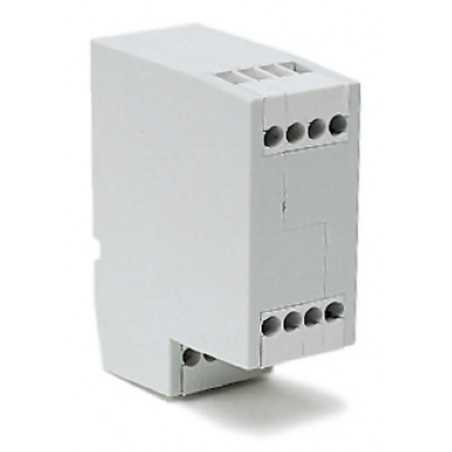

< Product photo may vary depending on part number selection.
- Color
- Black Housing
Tan Cover - Series
- KO4070
- Electrical
- 16A
22-12 AWG
300V - Standard Package
- 1
- Customizable
- Yes
- Number of Terminals
- 12
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- PCB Connection
- Solder Pins
- PCB Locations
- (2) Vertical
Parallel
Perpendicular
