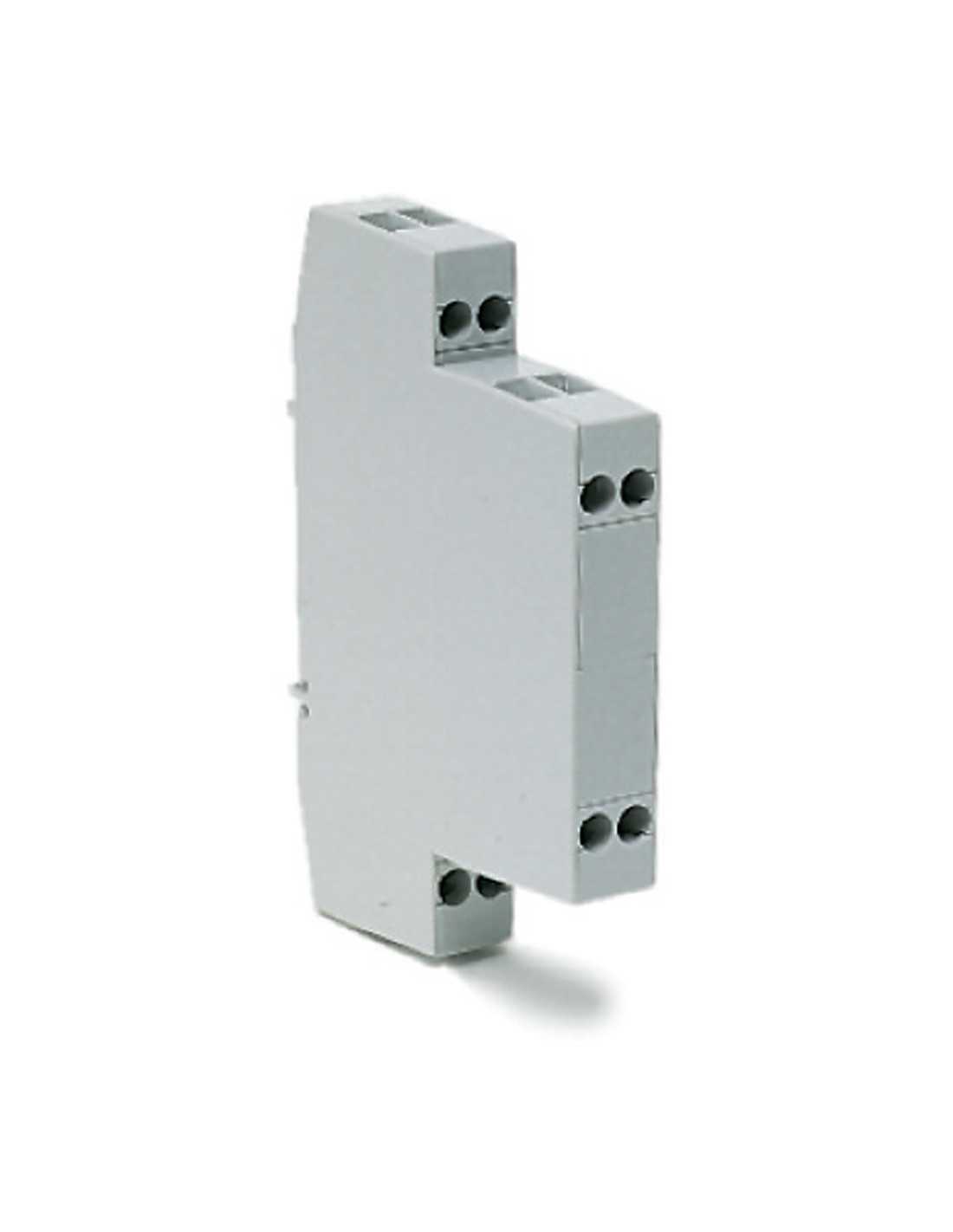

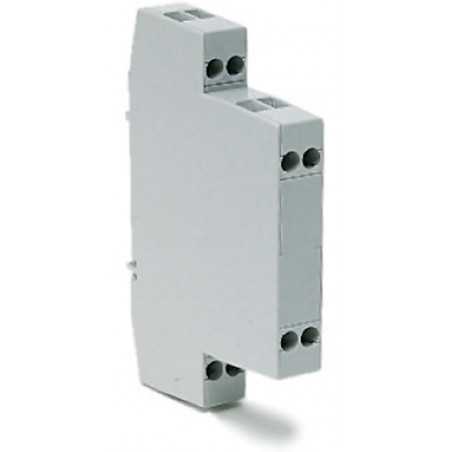

    KO4070 Series 8 Terminal - Screw Clamp
    KO4070 Series 8 Terminal - Screw Clamp
    KO4070 Series 8 Terminal - Screw Clamp
    KO4070 Series 8 Terminal - Screw Clamp

    KO4070 Series 8 Terminal - Screw Clamp

    8 Terminal, Standard Length Pins, 35 mm DIN Rail


    Color
    Black Housing
    Tan Cover
    Series
    KO4070
    Electrical
    16A
    22-12 AWG
    300V
    Standard Package
    1
    Customizable
    Yes
    Terminals Count
    8
    Termination Type
    Screw Clamp
    DIN Rail
    35
    Housing Material
    Glass-filled Polycarbonate
    Recommended Torque
    0.8Nm
    PCB Connection
    Solder Pins
    PCB Locations
    (2) Vertical
    Parallel
    91.030
