KO4300 Series 32 Terminal - Screw Clamp
90.920
KO4300 Series 32 Terminal - Screw Clamp
32 Terminal, Vertical PCB, Fixed Screw, 35 mm DIN Rail
The KO4300 series offers new design styling and cost effectiveness in a high-density compact package. The double level terminals offer space savings while providing gas-tight, vibration proof connections. The enclosures are available with 16 to 64 terminals in 22.5 to 90 mm widths.
• DIN Rail Mount
• Machine Solderable Pins
• Integral PC Board Guides
• Compact High-Density Design
• Standard Color: Light Gray
DATA Sheet Link

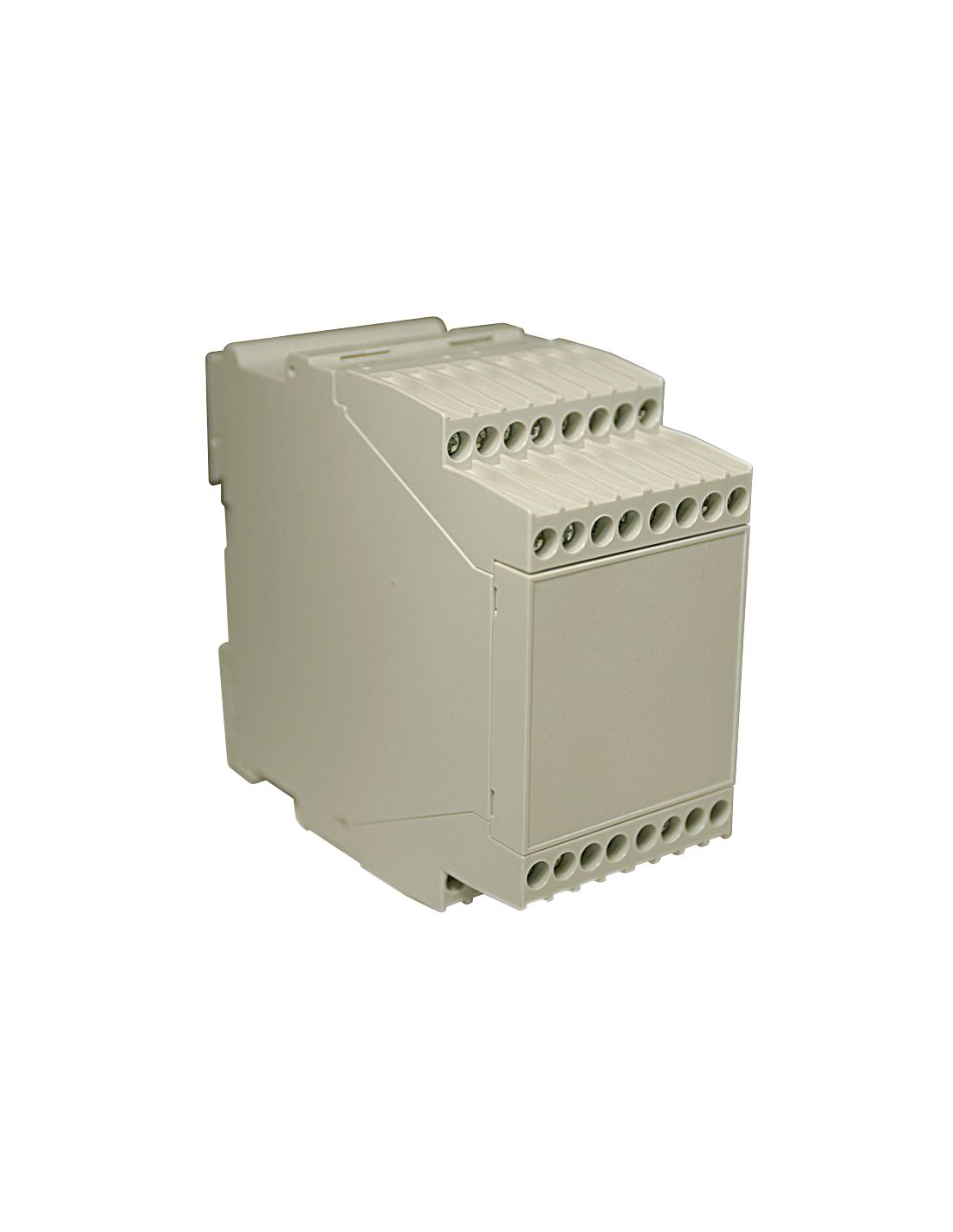

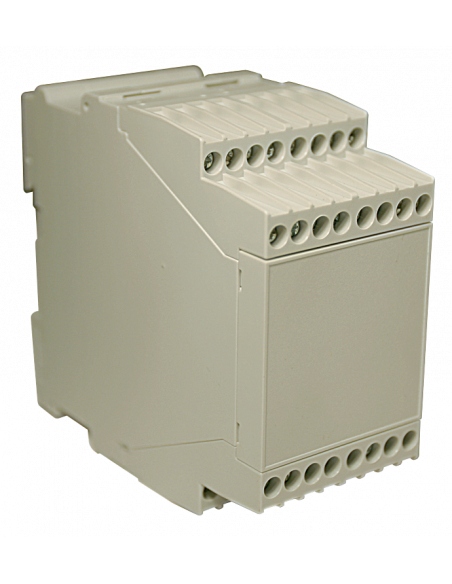

< Product photo may vary depending on part number selection.
- Color
- Light grey
- Series
- KO4300
- Electrical
- 16A
22-12 AWG
300V - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Number of Terminals
- 32
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Terminal Block Material
- Glass-filled Polyamide
- Recommended Torque
- 0.8Nm
- Max. PCB's
- (4) Vertical
- PCB Connection
- Machine Solder
