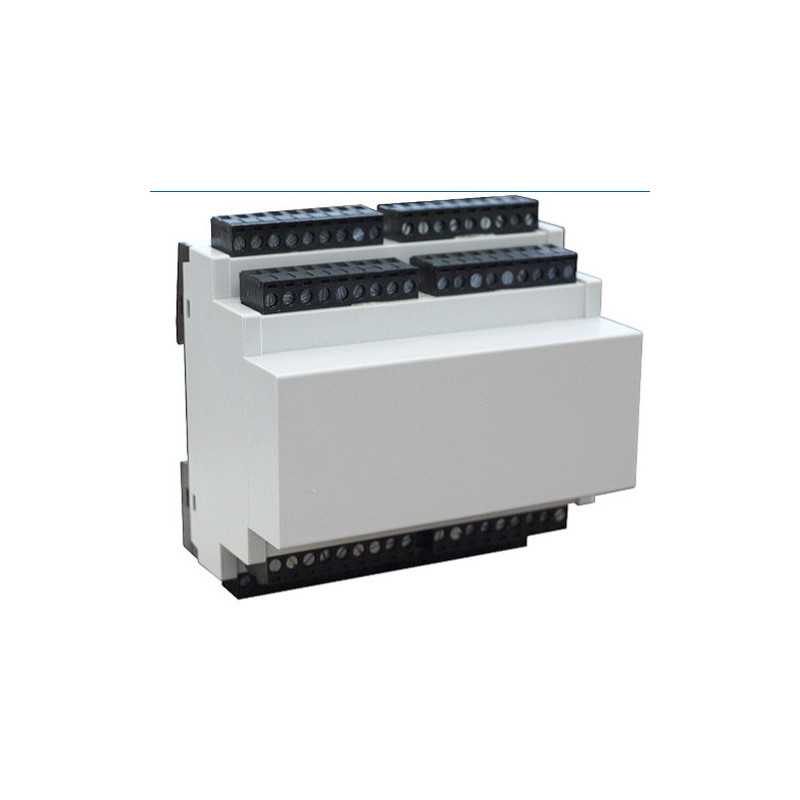

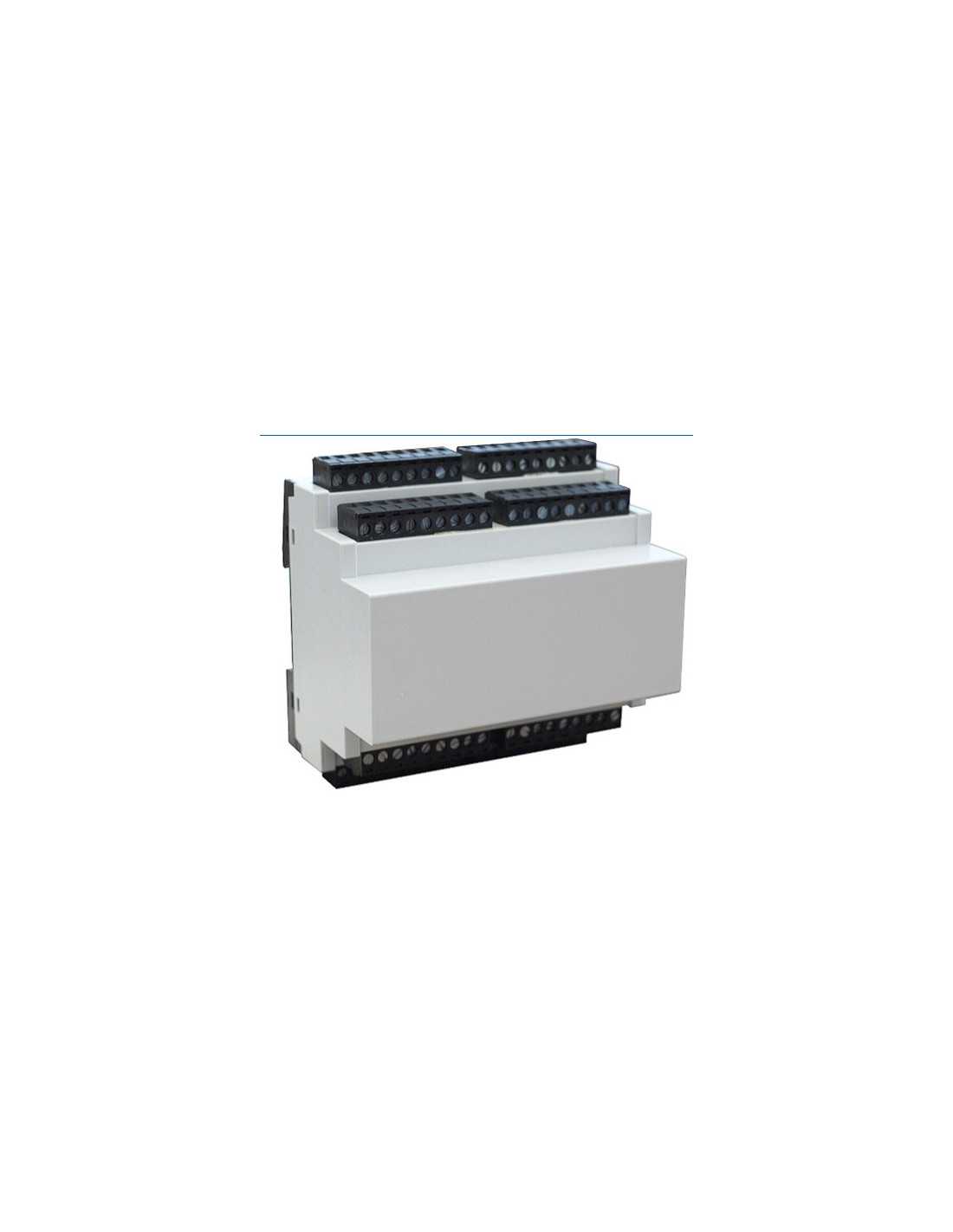

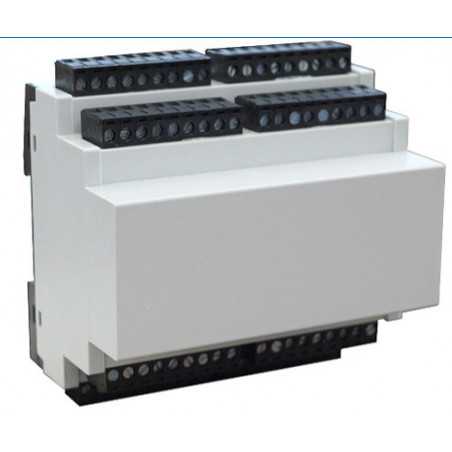

KU4100 Series 72 Terminal - Screw Clamp
72 Terminal, Pluggable PCB Plugs/Headers, Pluggable PCB Terminals, 35 mm DIN Rail
- Color
- Black Base
Black Terminals
Light Gray Cover - Series
- KU4100
- Electrical
- 12A
28-14 AWG
250V - Temperature Range
- Up to 115°C (239°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 72
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.4Nm
- PCB Connection
- Machine Solder
- PCB Locations
- (2) Vertical
Parallel
91.842
