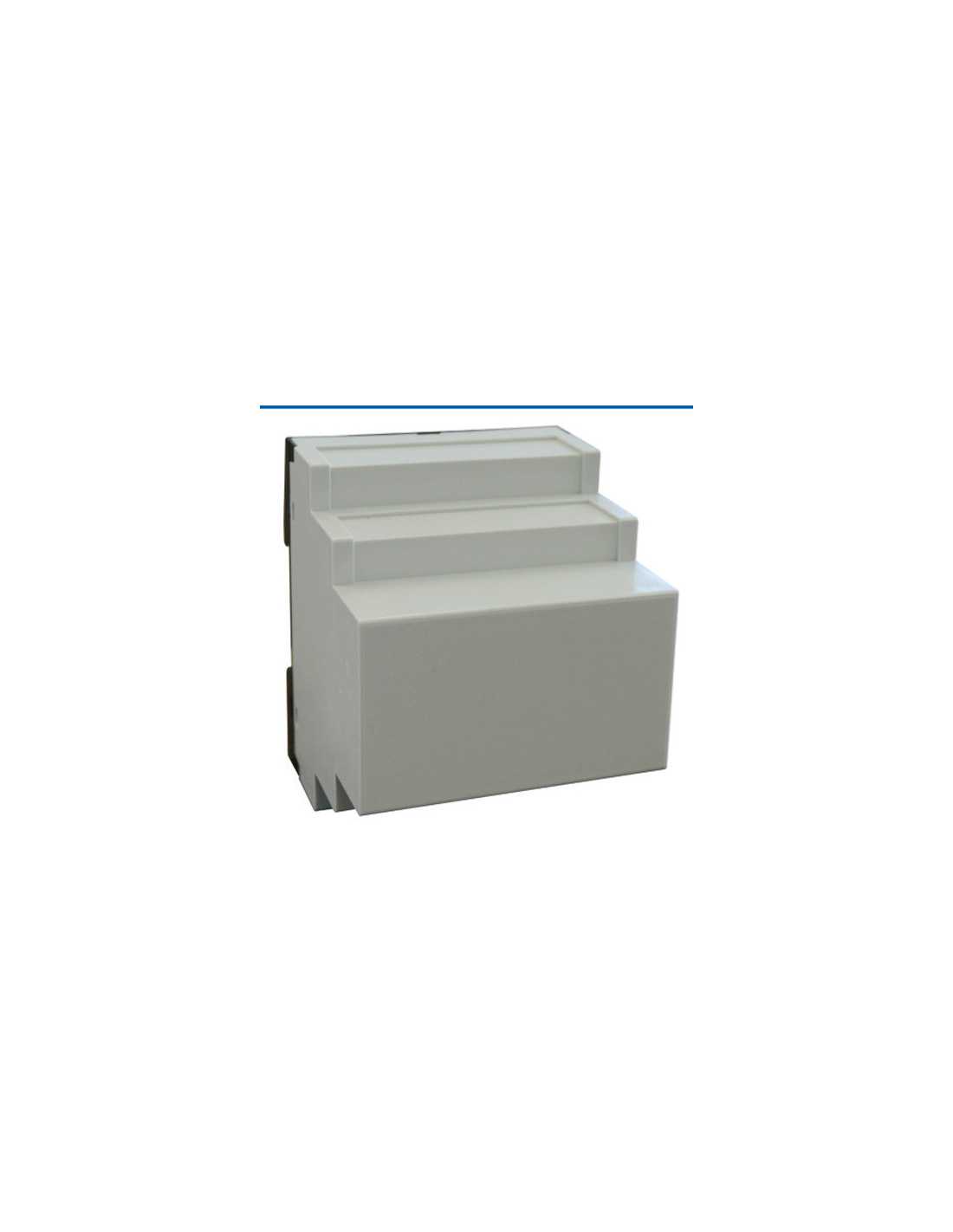

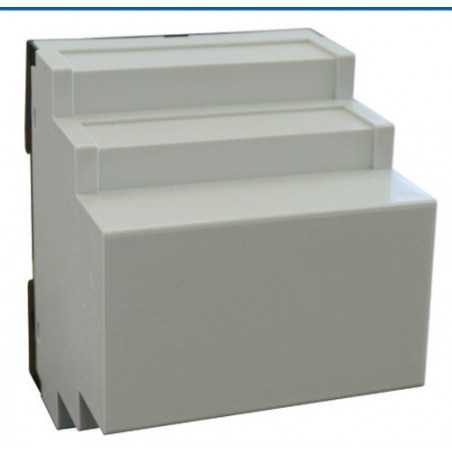

70 mm Enclosure, Without Terminals, 35 mm DIN Rail

The versatile KU4100 series features a compact design with different terminal configuration options. They are available in six widths with double level terminal locations. Terminal configuration options include blank enclosures with no terminal openings, fixed PCB terminals and pluggable PCB terminals.

• DIN Rail Mount

• Front Fits 45mm (1.77 in.) Cutouts

• Integral PC Board Guides

• Fixed and Pluggable Terminals

• Standard Color: Light Gray Cover with Black Base

 DATA Sheet Link
