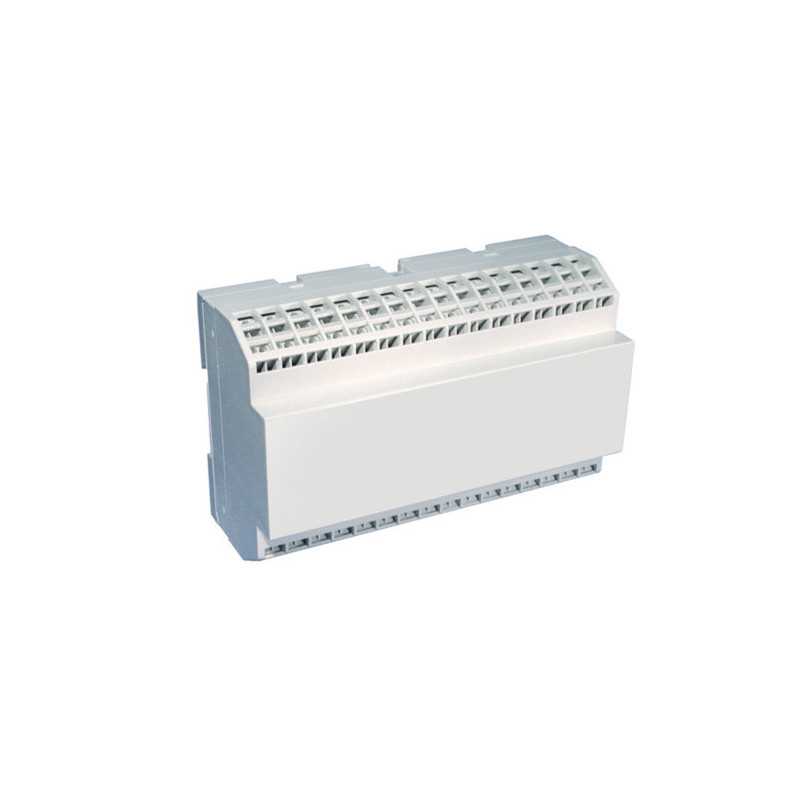

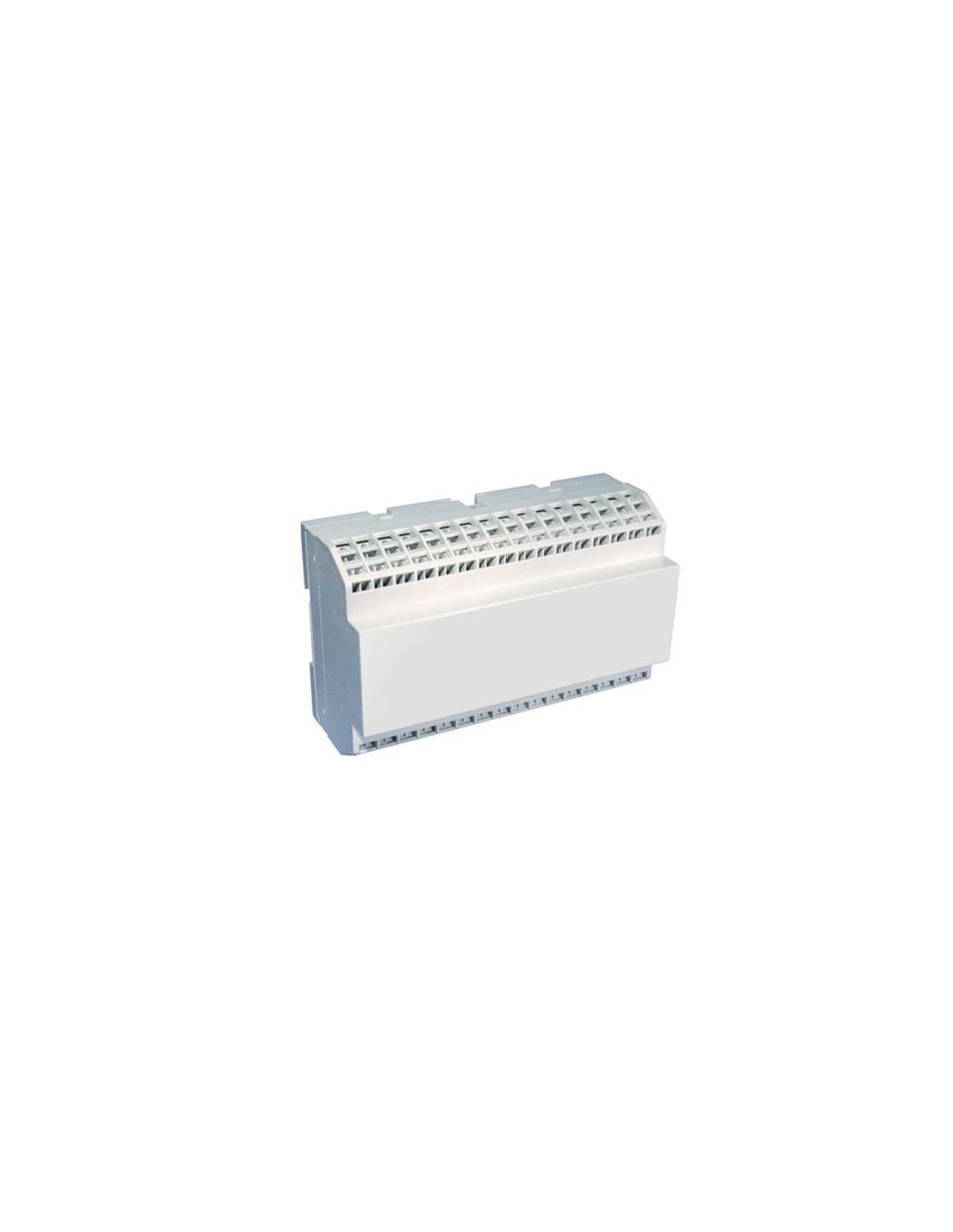

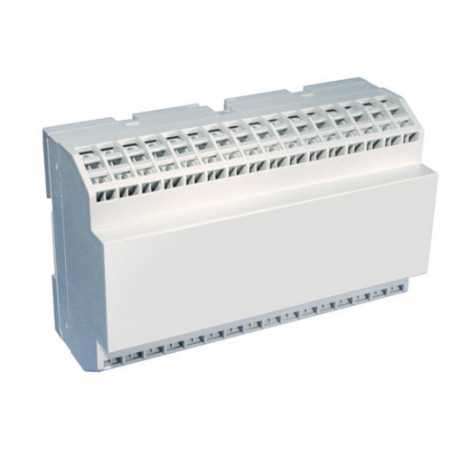

KU4000 Series 64 Terminal - Spring Clamp
64 Terminal, Vertical PCB Spring Clamp, Right Angle Pins, 35 mm DIN Rail or optional panel mounting*
- Color
- Light Gray
- Series
- KU4000
- Electrical
- 10A 300V
26-14 AWG - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 64
- Termination Type
- Spring Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- Max. PCB's
- (8) Vertical
- PCB Connection
- Machine Solder
Wire Jumper
91.600
