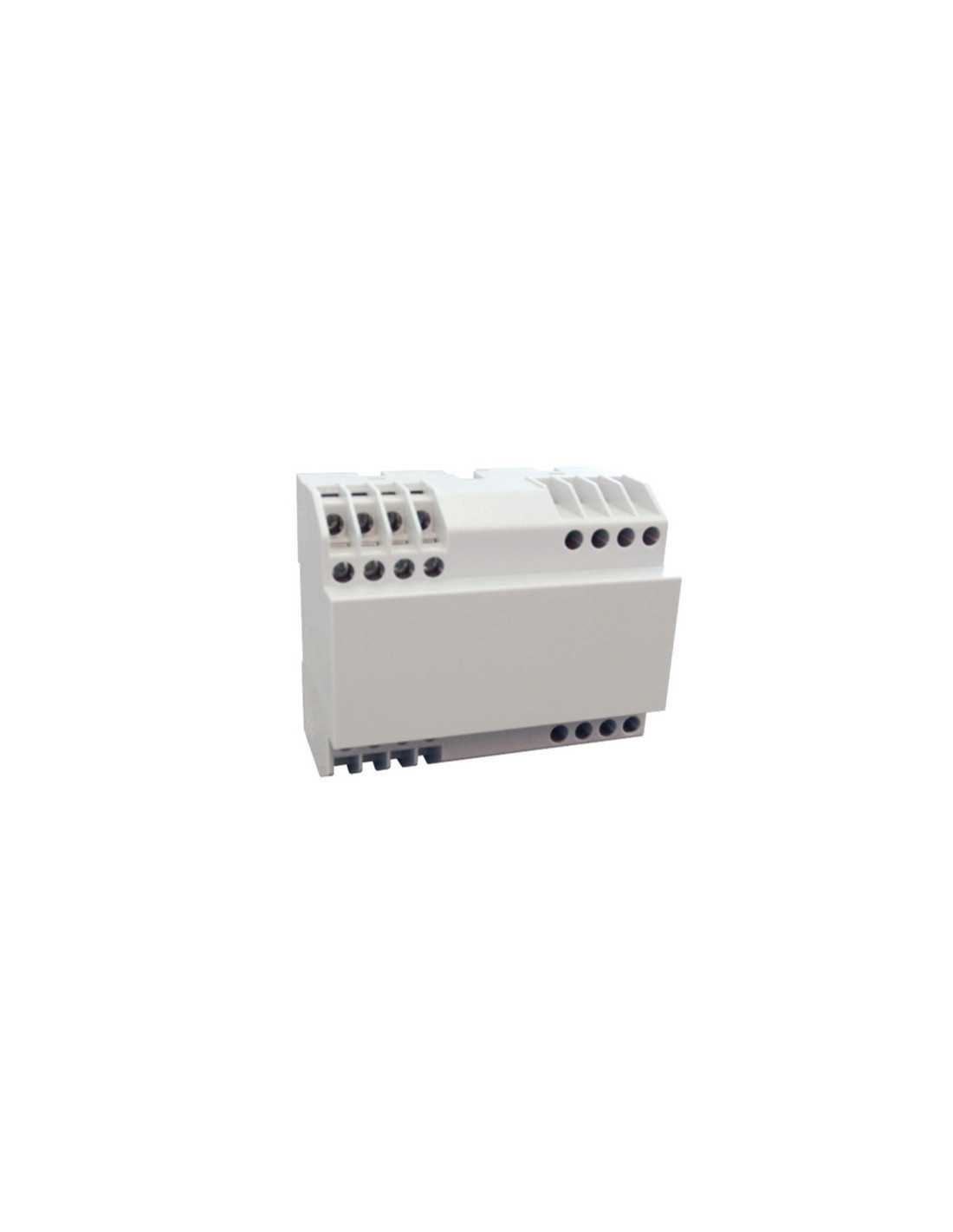

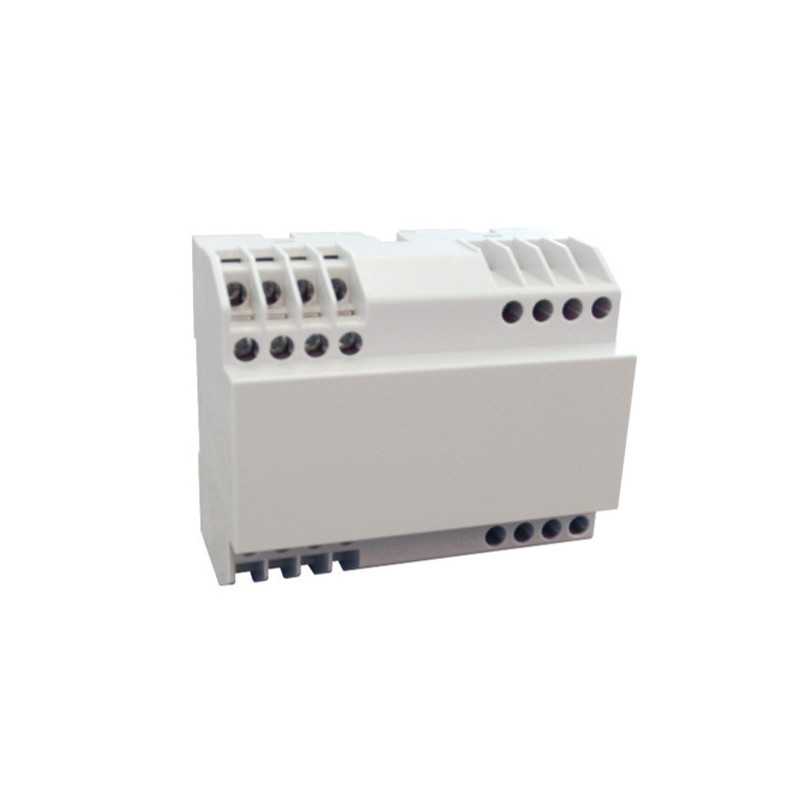

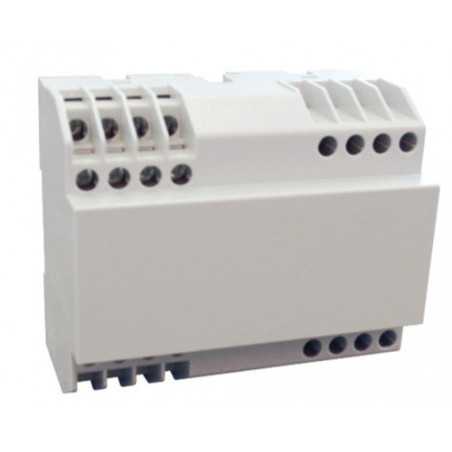

KU4000 Series 24 Terminal - Screw Clamp
24 Terminal with 16 Standard and 8 High Current Terminals, Vertical PCB Screw Clamp, Right Angle Pins, 35 mm DIN Rail or optional panel mounting*
- Color
- Light Gray
- Series
- KU4000
- Electrical
- 18-8 AWG
22-14 AWG High Current Terminal
300V
Standard Terminal - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 24
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm/1.2Nm
- Max. PCB's
- (3) Vertical
- PCB Connection
- Machine Solder
Wire Jumper
91.750
No reviews
Tap to zoom
