K70 Series 20 Terminal - Screw Clamp
90.060
K70 Series 20 Terminal - Screw Clamp
20 Terminal, Solder/ Tab Connection, Double Level Terminals, 35 mm DIN Rail or panel mount
K70 series enclosures include a range of small to medium size DIN enclosures, complete with 8 to 32 terminals. They offer cost effective solutions for many applications. The K70s are supplied with integral pressure plate terminals for reliable connections. Terminal-to-board connections include fixed and pluggable solutions.
•DIN Rail or Panel Mount
• Integral PC Board Guides
• Snap-On Covers
• Fixed and Pluggable Designs
• Standard Color: Light Gray
DATA Sheet Link

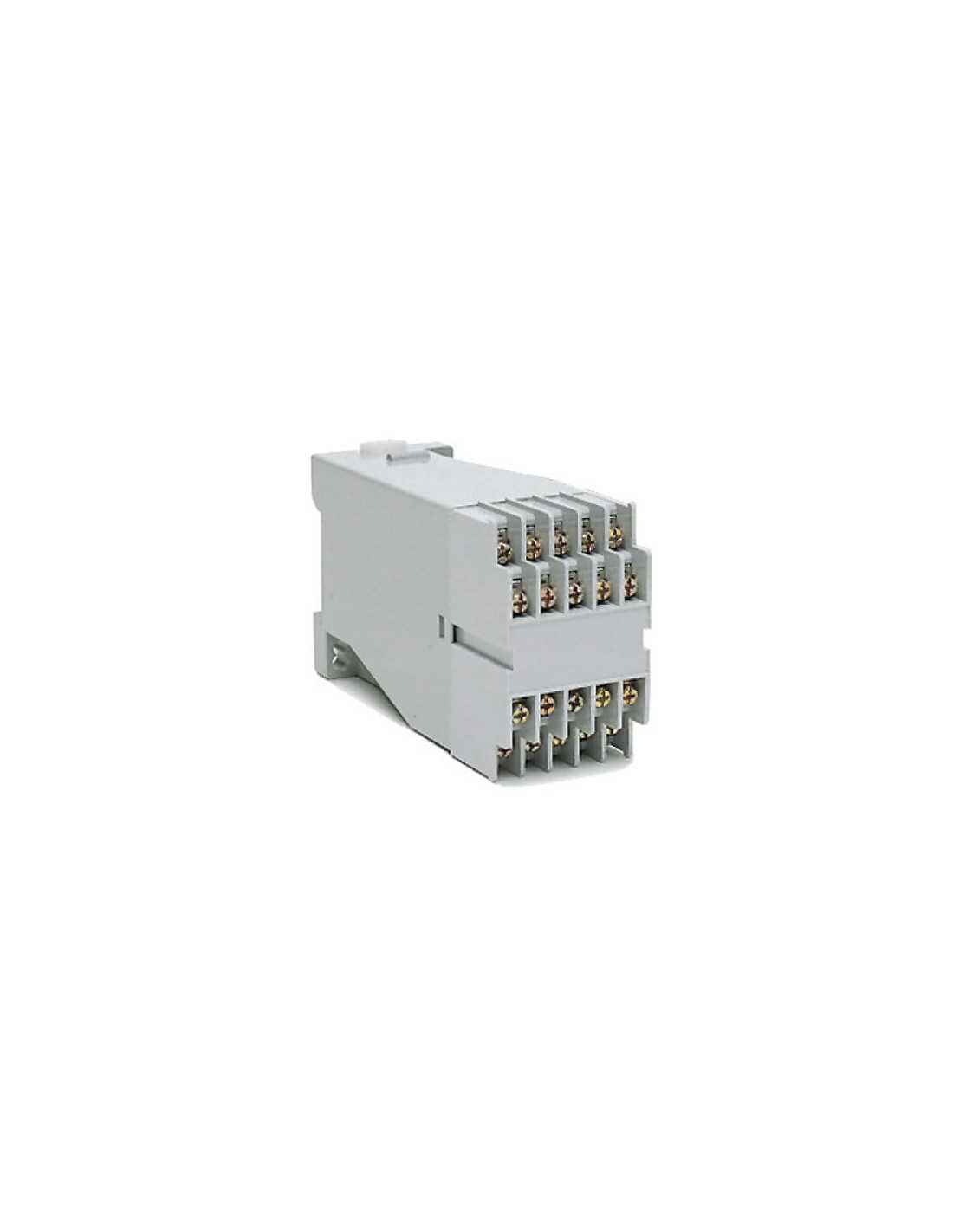

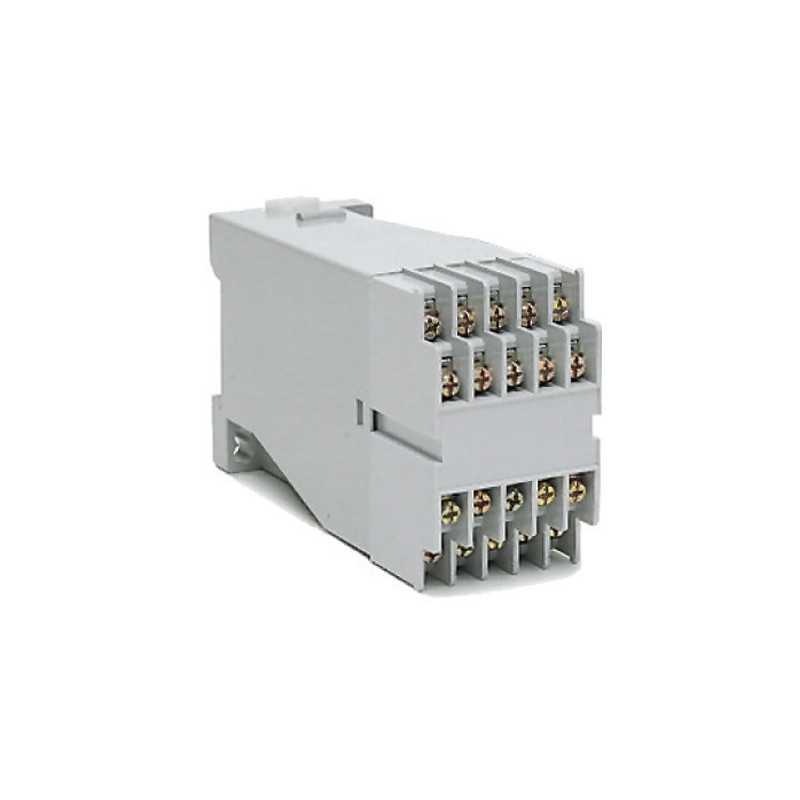

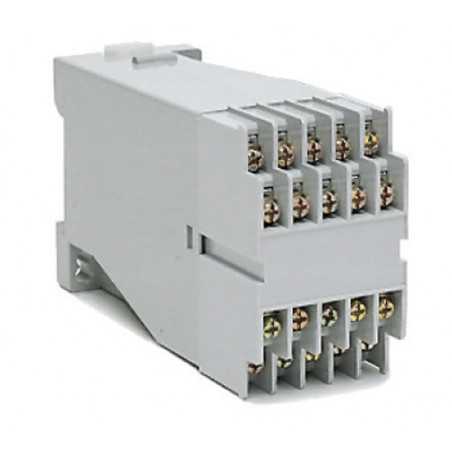

< Product photo may vary depending on part number selection.
- Color
- Light grey
- Series
- K70
- Electrical
- 22-14 AWG
25A
300V - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Number of Terminals
- 20
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- Max. PCB's
- (10) Vertical
- PCB Connection
- Fast On
Wire Jumper - Cover Material
- Glass-filled Polycarbonate
90.060
