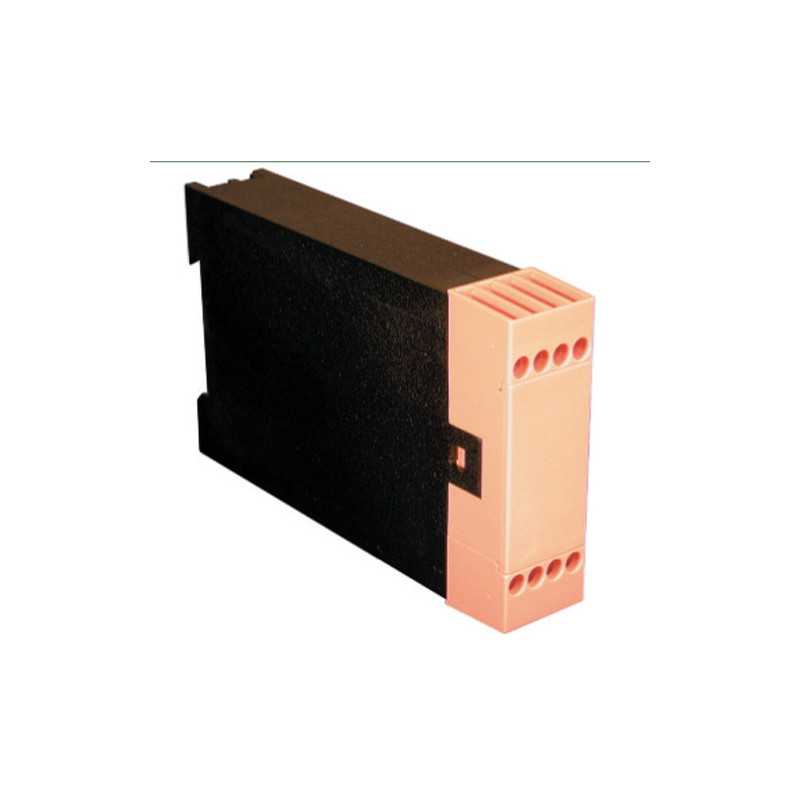

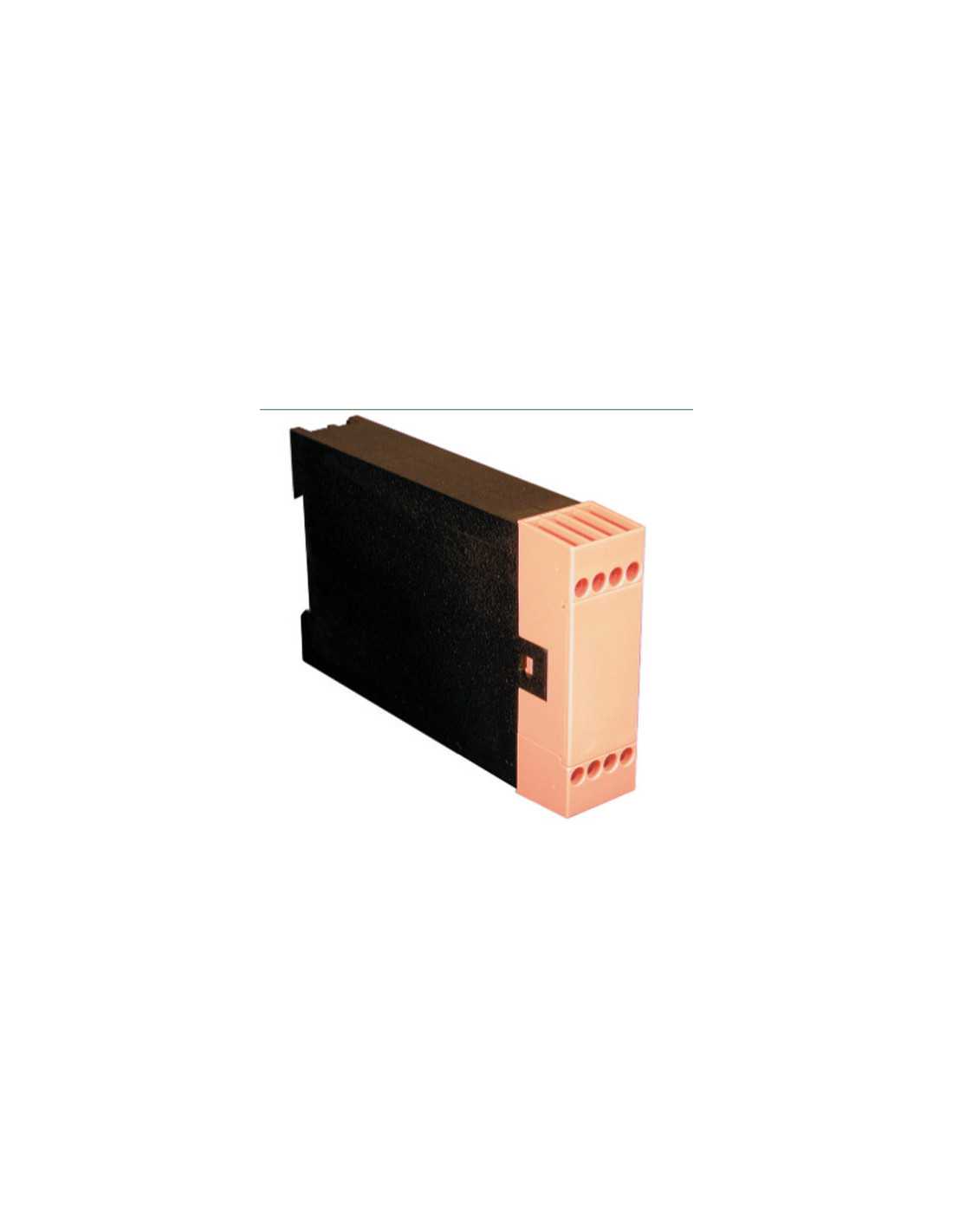

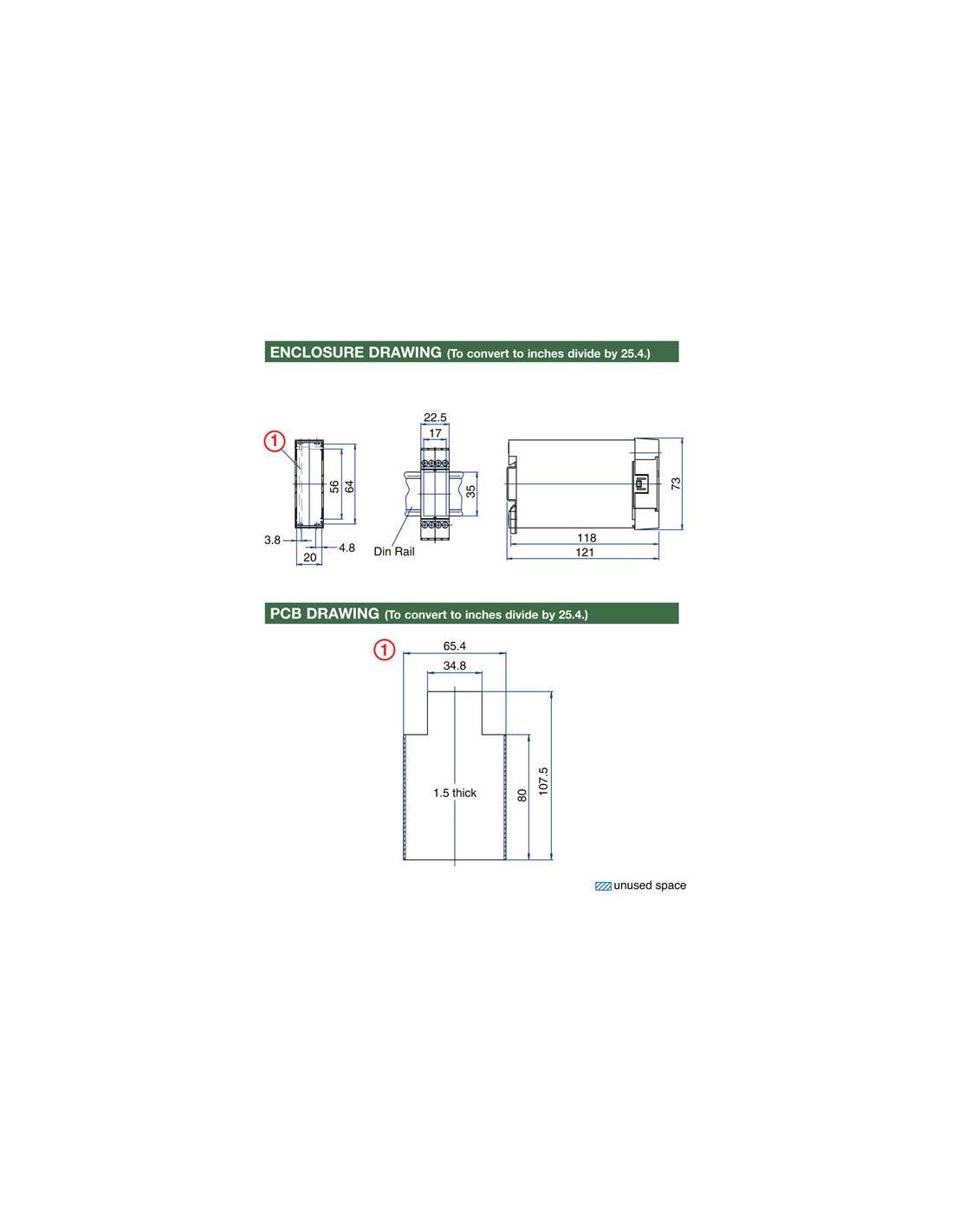

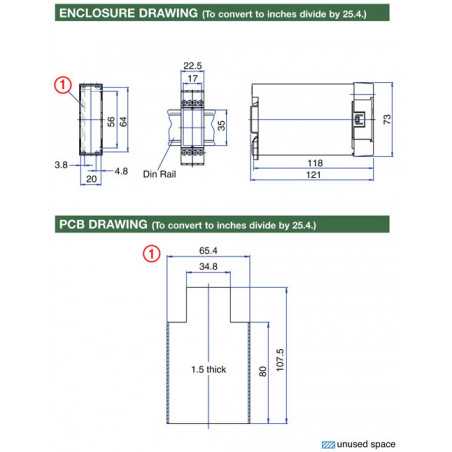

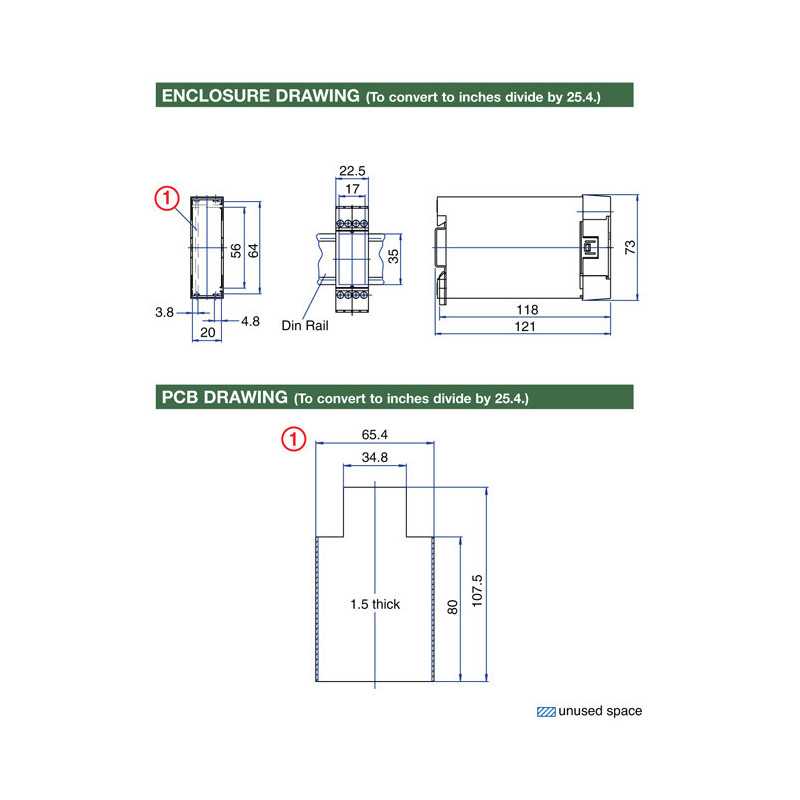

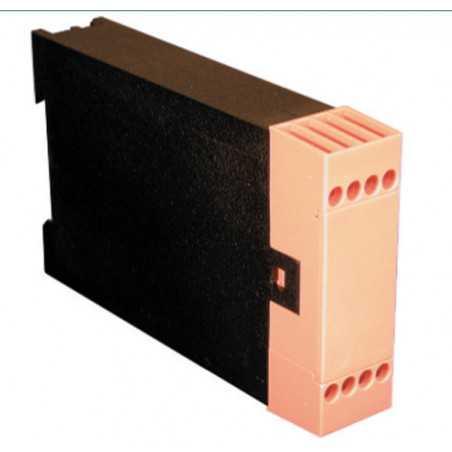

KO4700 Series 8 Terminal - Screw Clamp
8 Terminal, Solder/Tab Connection, 35 mm DIN Rail or optional panel mounting
- Color
- Black Housing
Tan Cover - Series
- KO4700
- Electrical
- 16A
22-12 AWG
300V - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 8
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- Max. PCB's
- (2) Vertical
- PCB Connection
- Wire Jumper
- Cover Material
- Glass-filled Polycarbonate
90.202
