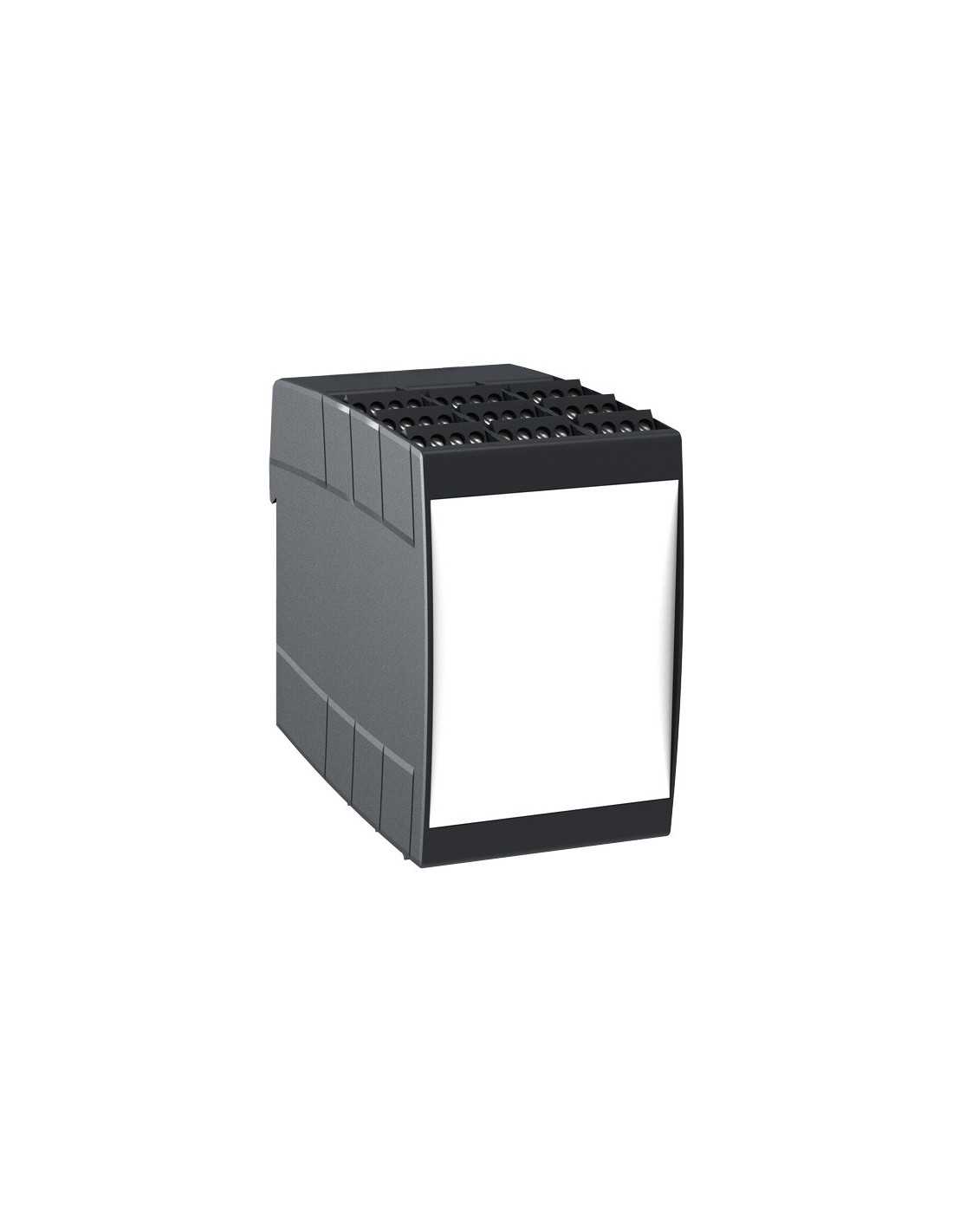

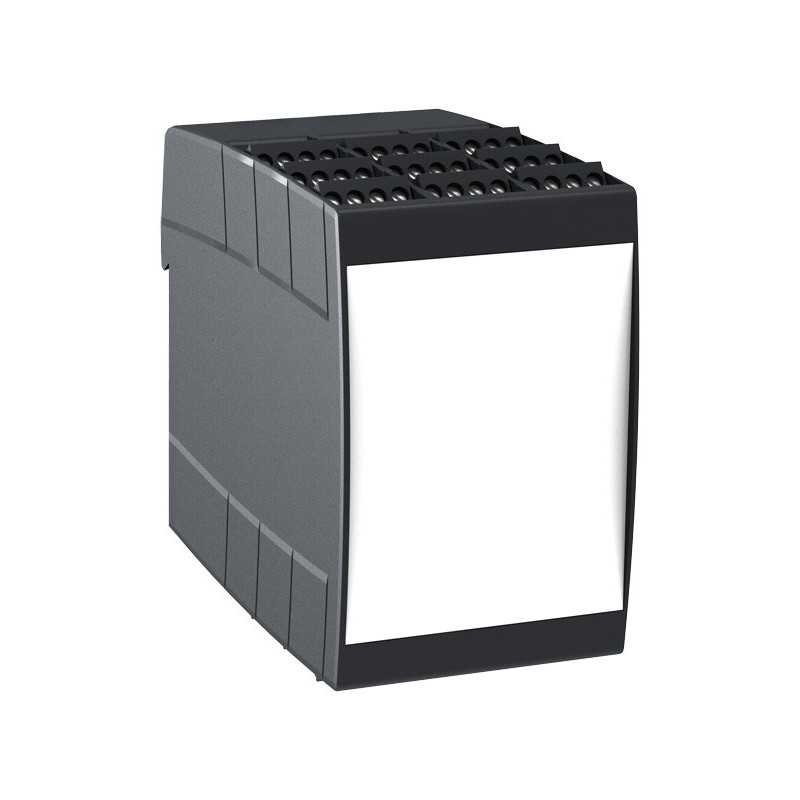

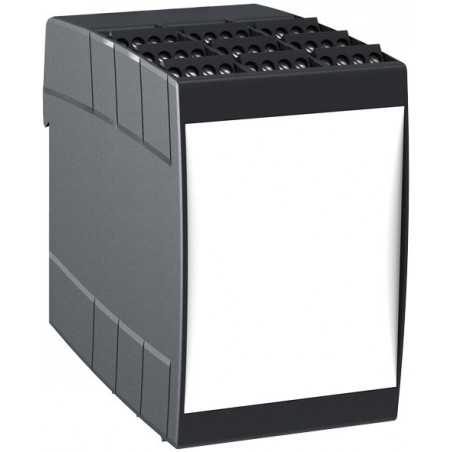

KS4400 Series 72 Terminal - Spring Clamp
90.172
72 Terminal, Pluggable Spring Terminal, 35 mm DIN Rail
- Color
- Black Housing
Gray Cover Plate - Series
- KS4400
- Electrical
- 10A
24-12AWG
300V - Temperature Range
- Up to 120°C (248°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 72
- Termination Type
- Spring Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Terminal Block Material
- Polyamide
- Recommended Torque
- 0.5Nm
- Max. PCB's
- (3) Vertical
- PCB Connection
- Machine Solder
90.172
