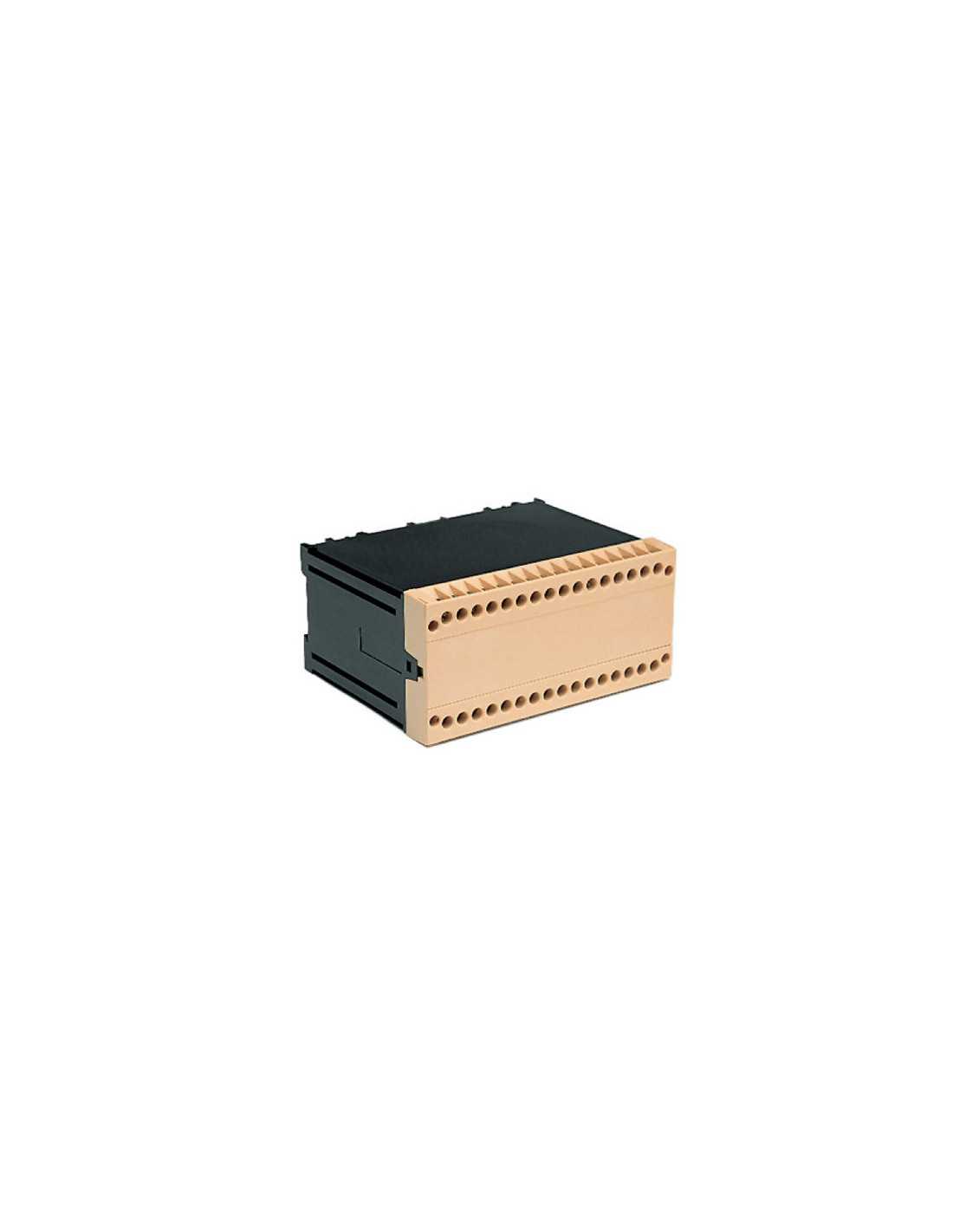

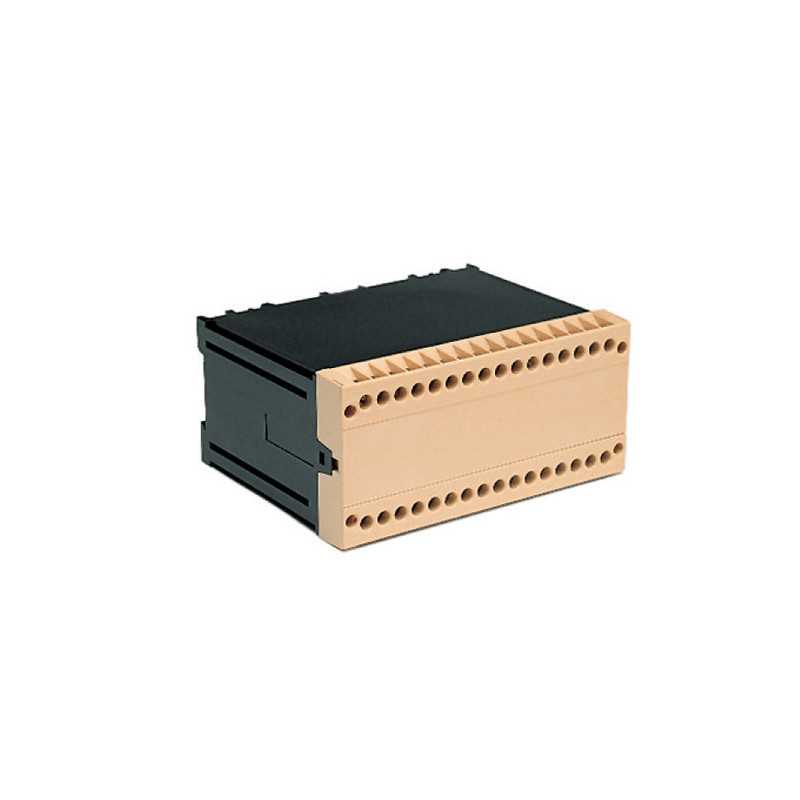

KO4700 Series 32 Terminal - Screw Clamp
32 Terminal, Pluggable and Solder Connection, 35 mm DIN Rail or optional panel mount*
- Color
- Black Housing
Tan Cover - Series
- KO4700
- Electrical
- 10A
22-14AWG
300V - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 32
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- Max. PCB's
- (1) Behind cover
(5) Vertical - PCB Connection
- Card Edge
Wire Jumper - Cover Material
- Glass-filled Polycarbonate
90.501
