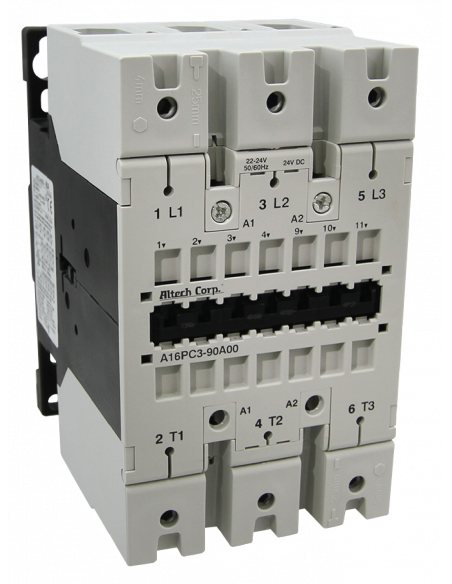

A16PC3-115A00-230V PC Series Contactors - 115A Frame (1 Phase, 3 Phase)
A16PC3-115A00-230V Series Contactors - 115A Frame
Features
- Minimum size & Maximum performance
- Ambient temperatures – 40°C up to + 90°C
- Designed for the operation under extreme conditions (heat, dust, sand, high humidity, vibrations, shock) •
- Bounce free, self cleaning aux. contacts, suitable for switching electronic circuits => highest contact reliability
- Current ratings from 10A to 115A
- Adjustable Overload Relays from 0.18A to 85A
DATA SHEET

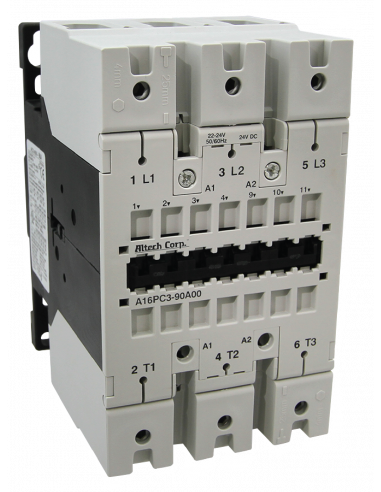

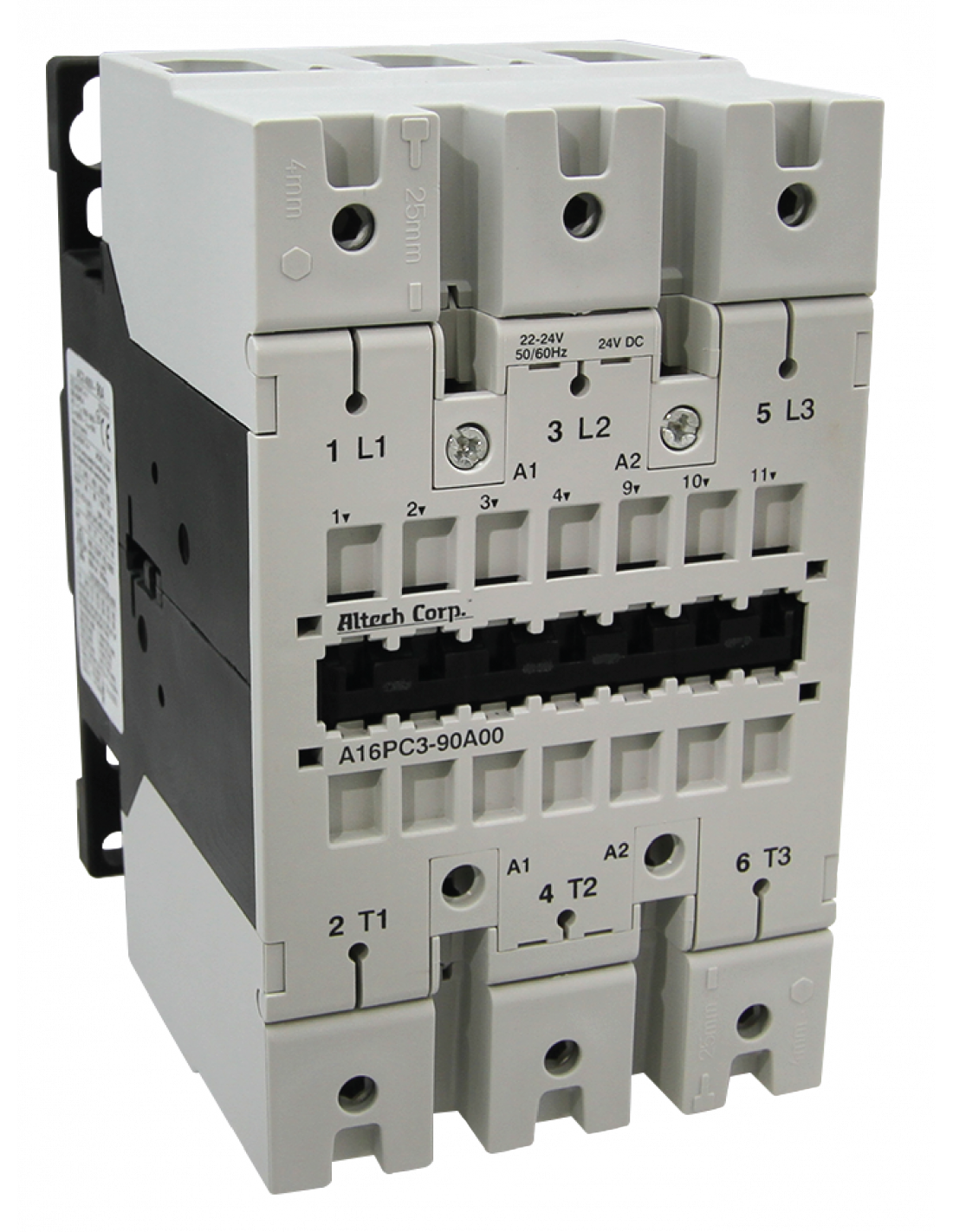

< Product photo may vary depending on part number selection.
- Contactor Coil Voltage
- 200-240V AC/220V AC
- Contactor Current Rating - Motor FLA @600V AC3 @380-400V
- 99A, 115A
- Contactors HP 110-120V (1 Phase, 3 Phase)
- 10 , 20
- Contactors HP 200V (1 Phase, 3 Phase)
- 20 , 35
- Contactors HP 220-240V (1 Phase, 3 Phase)
- 25 , 40
- Contactors HP 277V (1 Phase, 3 Phase)
- 25 , NA
- Contactors HP 380-415V (1 Phase, 3 Phase)
- 40 , 60
- Contactors HP 440-480V (1 Phase, 3 Phase)
- 50 , 75
- Contactor HP 550-600V (1 Phase, 3 Phase)
- 65 , 100
- Contactor General Use
- 200 (200A)
A16PC3-115A00-230V
