A16PC3-22ND10-DC24V PC Series Contactors - 22A Frame (1 Phase, 3 Phase)
A16PC3-22ND10-DC24V PC Series Contactors - 22A Frame
Features
- Minimum size & Maximum performance
- Ambient temperatures – 40°C up to + 90°C
- Designed for the operation under extreme conditions (heat, dust, sand, high humidity, vibrations, shock) •
- Bounce free, self cleaning aux. contacts, suitable for switching electronic circuits => highest contact reliability
- Current ratings from 10A to 115A
- Adjustable Overload Relays from 0.18A to 85A
DATA SHEET

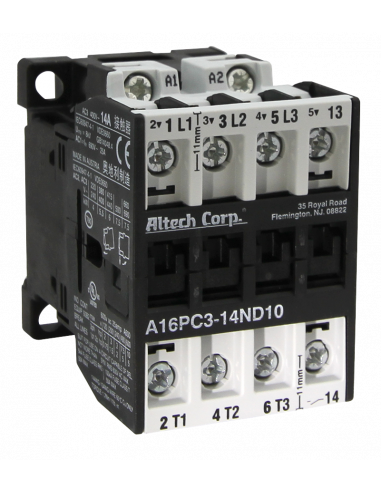

< Product photo may vary depending on part number selection.
- Contactor Coil Voltage
- 24V AC
- Contactor Current Rating - Motor FLA @600V AC3 @380-400V
- 22A
- Contactors HP 110-120V (1 Phase, 3 Phase)
- 1 1/2 , 3
- Contactors HP 200V (1 Phase, 3 Phase)
- 3 , 5
- Contactors HP 220-240V (1 Phase, 3 Phase)
- 3 , 7 1/2
- Contactors HP 277V (1 Phase, 3 Phase)
- 5 , 7 1/2
- Contactors HP 380-415V (1 Phase, 3 Phase)
- 5 , 10
- Contactors HP 440-480V (1 Phase, 3 Phase)
- 7 1/2 , 15
- Contactor HP 550-600V (1 Phase, 3 Phase)
- 10 , 20
- Contactor General Use
- 30A (32A)
A16PC3-22ND10-DC24V
