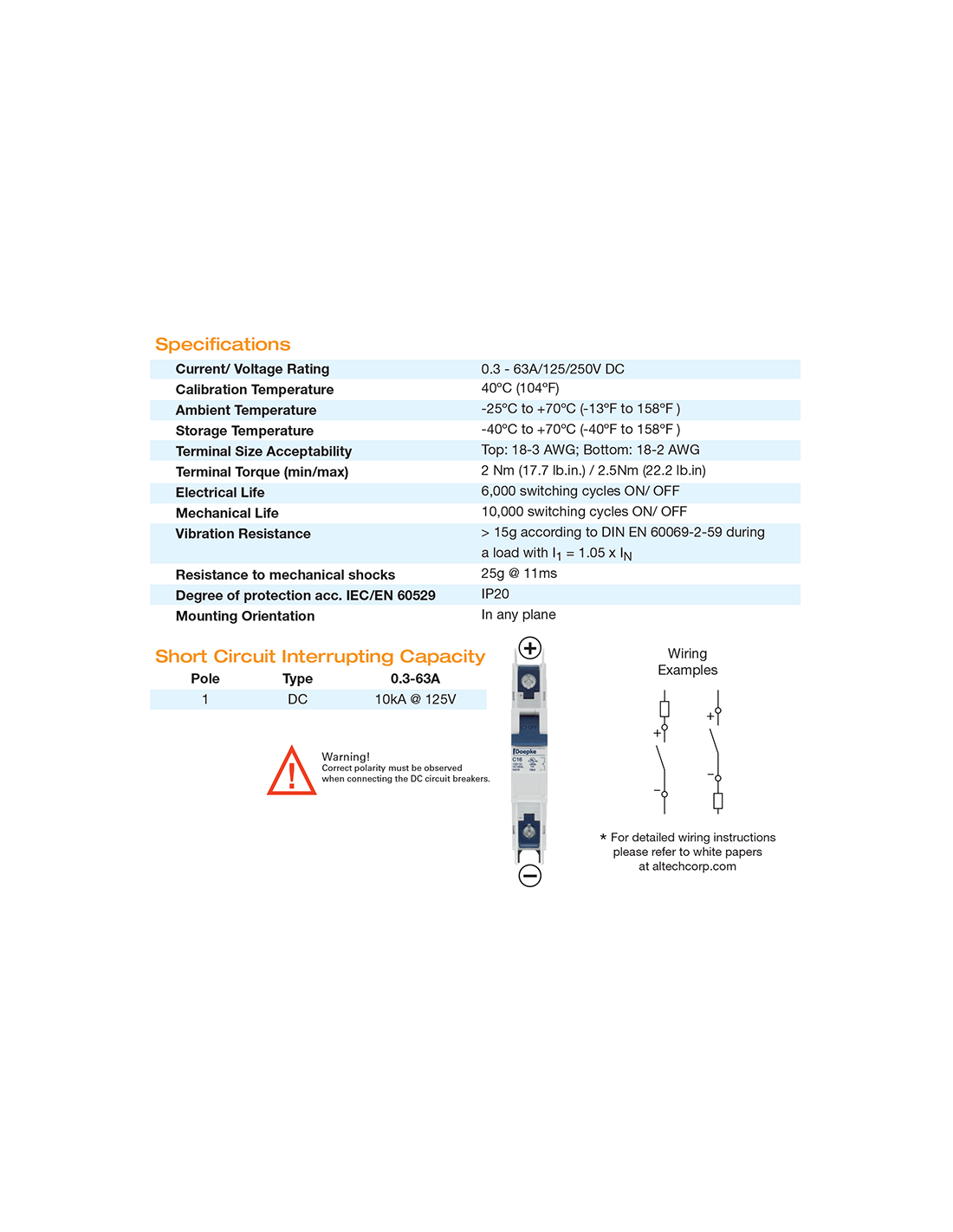

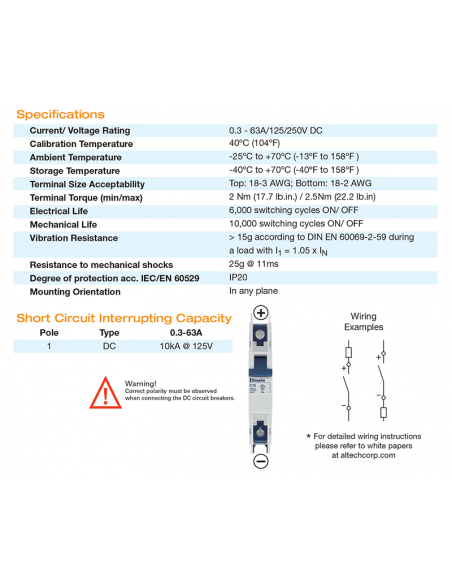

1D1.6DL - UL489 Miniature Molded Case Circuit Breaker
1D1.6DL
- AC (UL Series) and DC (DL Series)
- DIN Rail Mounted

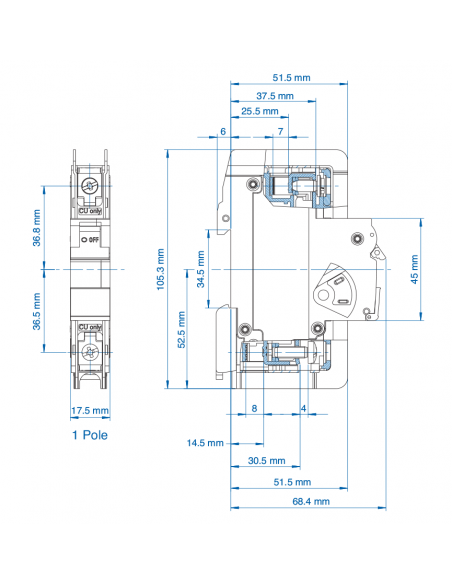

- 17.5mm width
- Thermal Magnetic
- 240V, 480Y/277V AC, 50/60Hz
- 125V DC (1 pole); 125/250V DC (2 pole)
- 10kA Short Circuit Interrupting Capacity
- HACR Type 40°C
- Line/Load reversible

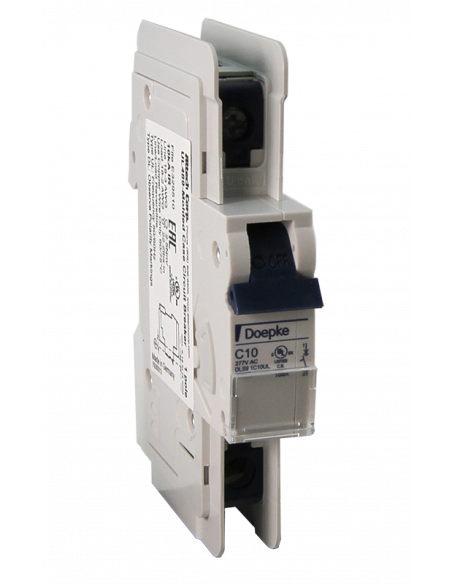

< Product photo imprint will vary depending on part number selection.
Tap to zoom
