2Z50UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”

• DIN Rail Mounted
• 17.5mm width per pole
• Thermal Magnetic
• 0.3-60A / 480Y/277V AC, 50/60Hz
• Also DC rated
• 480Y/277V AC
  0.3-25A: 1 pole - 42V DC; 2 Pole - 80V DC
  30-60A: 1 pole - 24V DC; 2 Pole - 60V DC
• 10kA Short Circuit Withstand Capacity
• Applications Include: AC Motor Starting, Across the Line, AC General Use,
  AC Resistance, AC Discharge Lamps (Ballast), AC Incandescent Lamps (Tungsten)

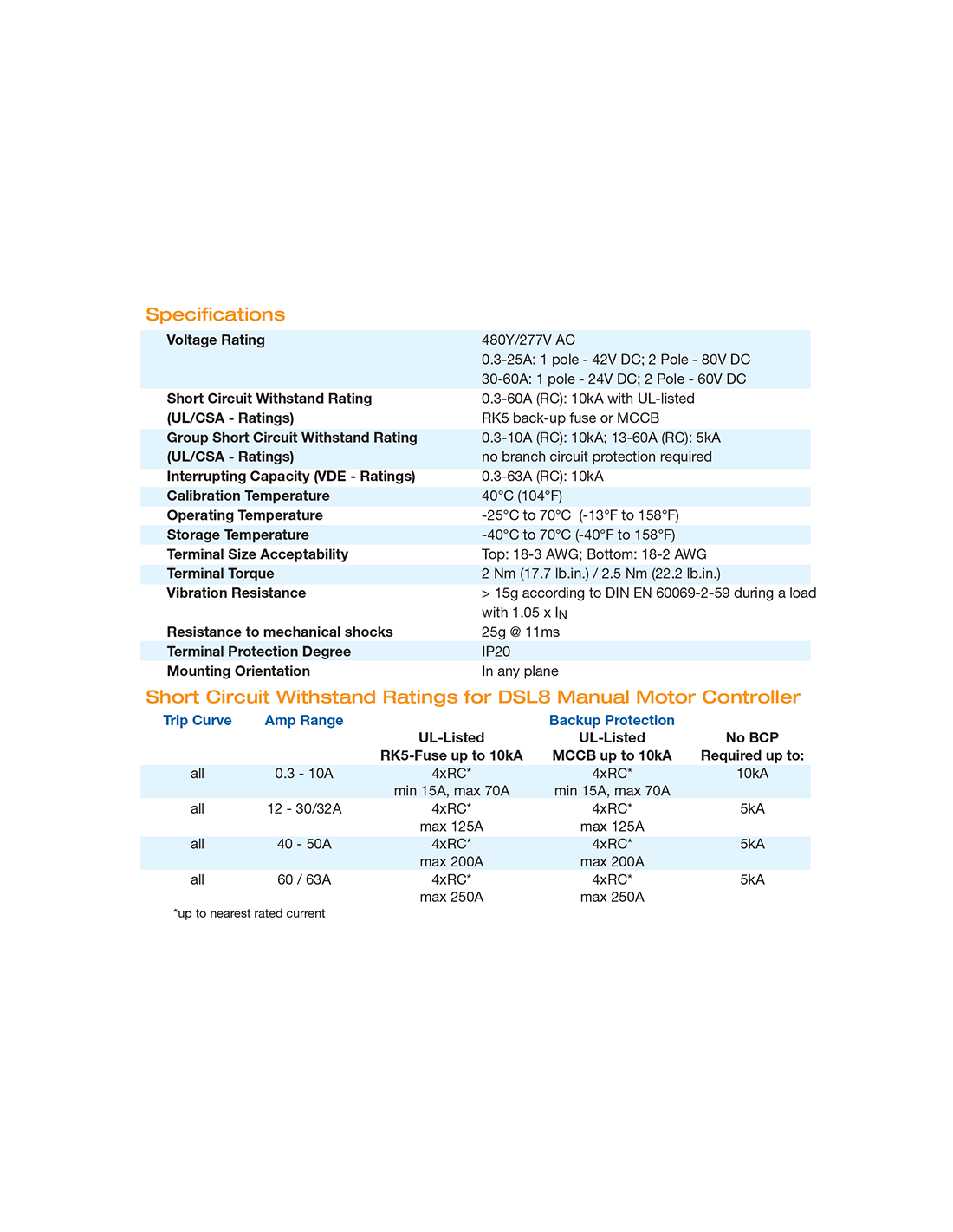

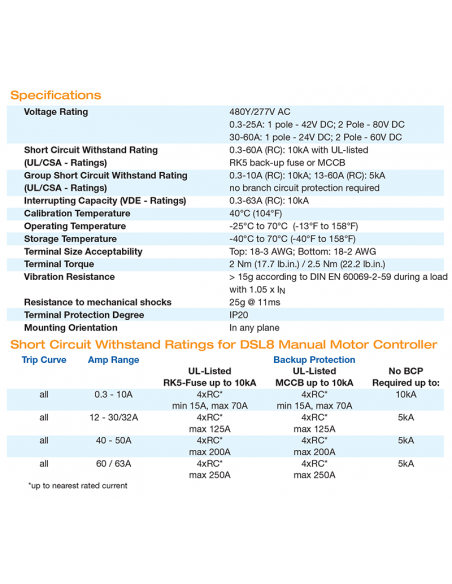

DATA SHEET

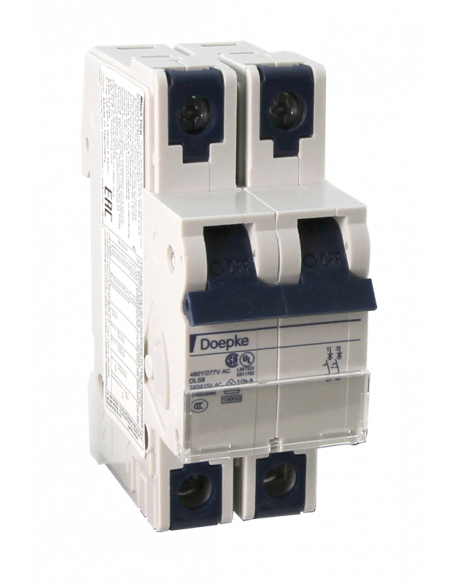

< Product photo imprint will vary depending on part number selection.
