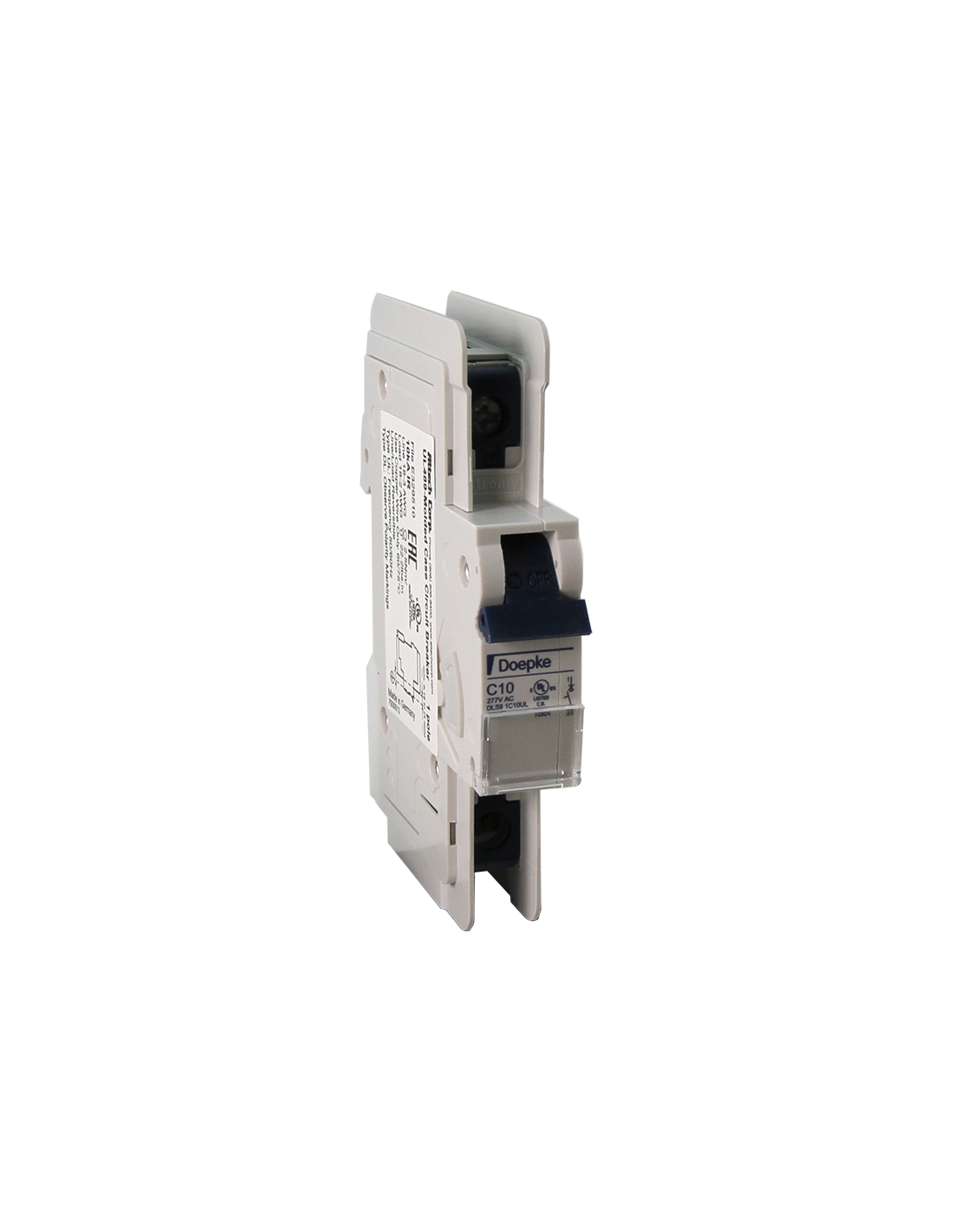

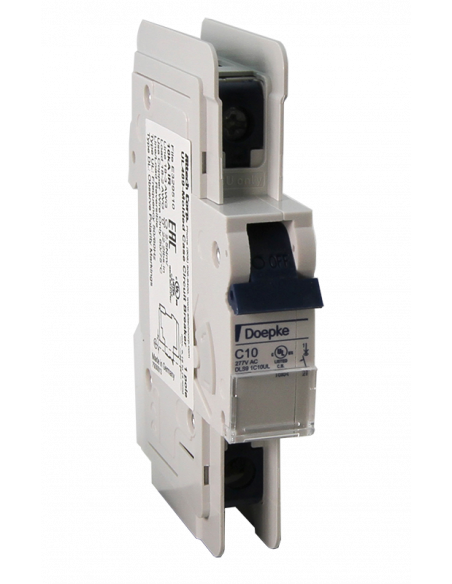

    Photo is representational.
    1C6UL - DLS9 - UL489 Miniature Molded Case Circuit Breaker
    1C6UL - DLS9 - UL489 Miniature Molded Case Circuit Breaker
    Photo is representational.
    1C6UL - DLS9 - UL489 Miniature Molded Case Circuit Breaker
    1C6UL - DLS9 - UL489 Miniature Molded Case Circuit Breaker

    1C6UL - DLS9 - UL489 Miniature Molded Case Circuit Breaker

    • AC (UL Series) and DC (DL Series)
    • DIN Rail Mounted
    • 17.5mm width
    • Thermal Magnetic
    • 240V, 480Y/277V AC, 50/60Hz
    • 125V DC (1 pole); 125/250V DC (2 pole)
    • 10kA Short Circuit Interrupting Capacity
    • HACR Type 40°C
    • Line/Load reversible

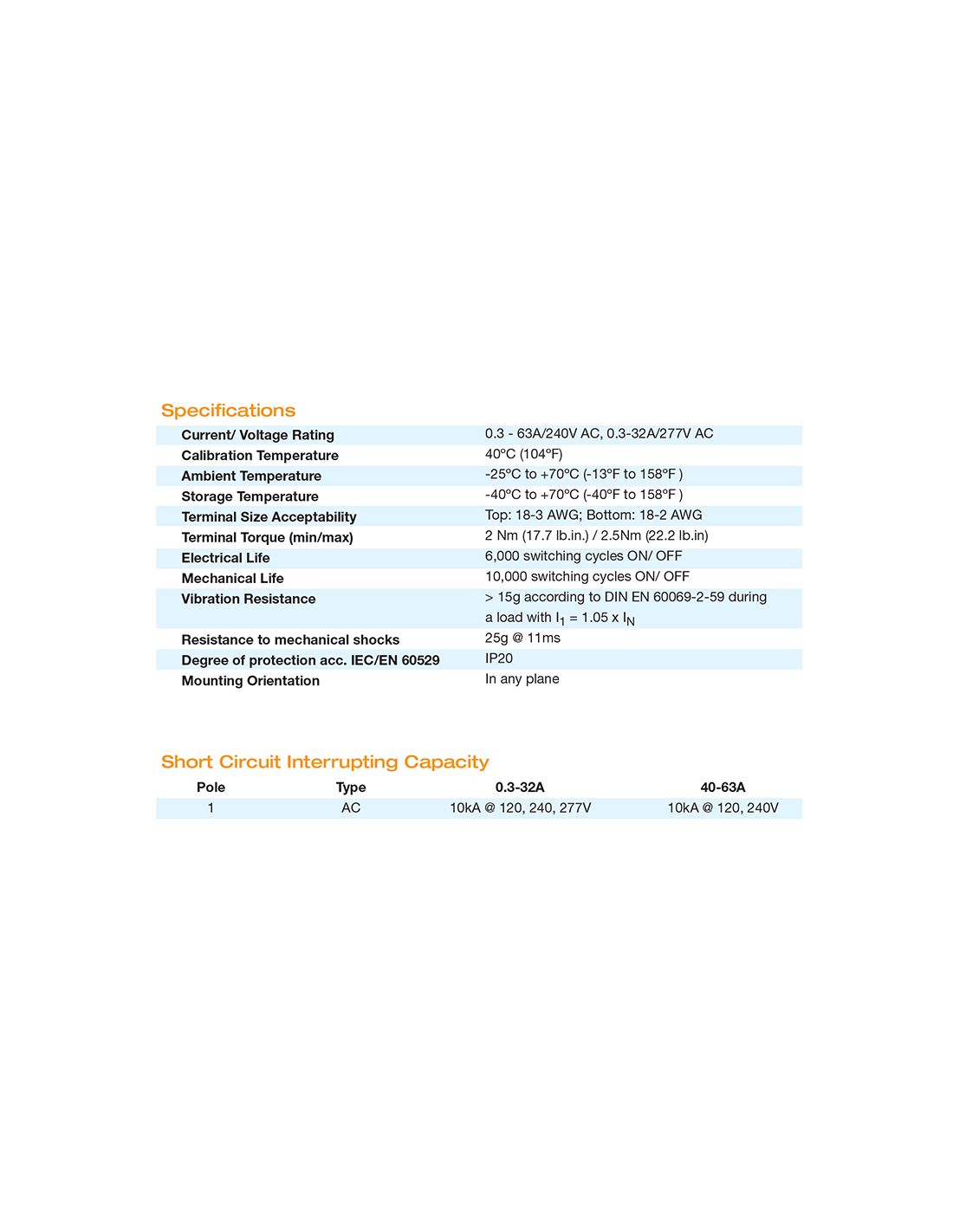

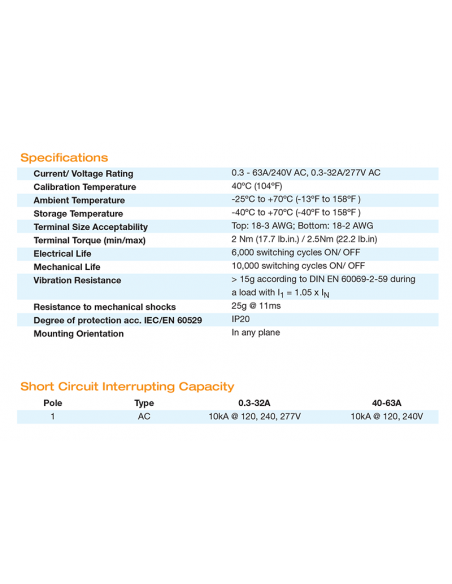

    DATA SHEET

    Product photo imprint will vary depending on part number selection.



    UL Breaker Approval
    UL 489
    Trip Charateristic
    C-Trip
    Rated Current
    6.0A
    Rated Voltage - Breakers
    277V AC
    Electrical Current Type
    AC
    Breaker Poles
    1 pole
    1C6UL
