Wire & Cable Management

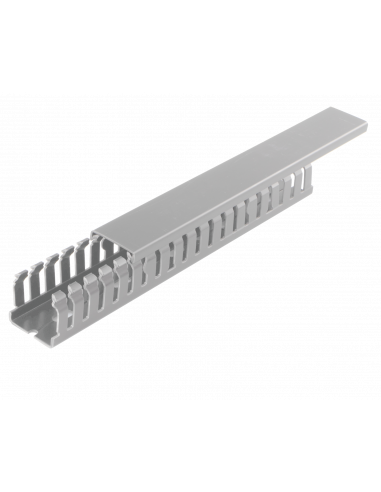

B25X50S
- Wide fingers giving additional cable support
- Terminated wires can be re-routed easily

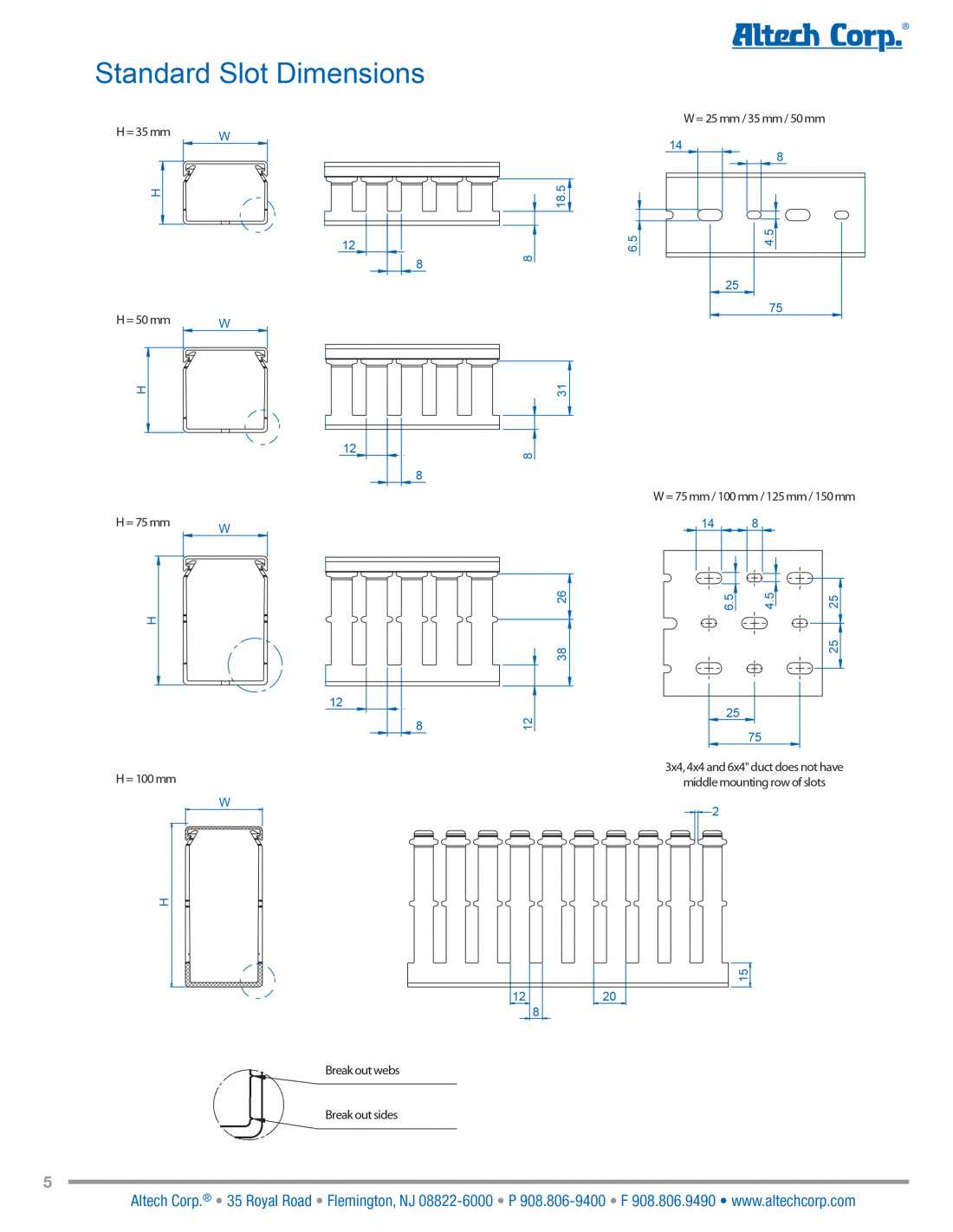

- 0.79" slot pitch
- 0.31" slot width
- 18 sizes, available in gray, white, or black
- UL, CSA and Lloyds Register approved
Supplied with lid.
- Nominal Size - w x h (inches)
- 1" x 2"
- External Dimensions: Width - inches (mm)
- 0.91 (23)
- External Dimensions: Height - inches (mm)
- 1.89 (48)
- Standard Pack: no. of lengths - 6 1/2' each
- 12
- Standard Pack - Total feet
- 78
- Material
- Self Extinguishing PVC
- Service Temperature
- +5°F to + 140°F (-15°C to + 60°C)
- Standards
- base slots to DIN 43659/ EN 50085-2-3
- Standard Colors
- Gray
- Flammability
- UL94 V-O rated material
