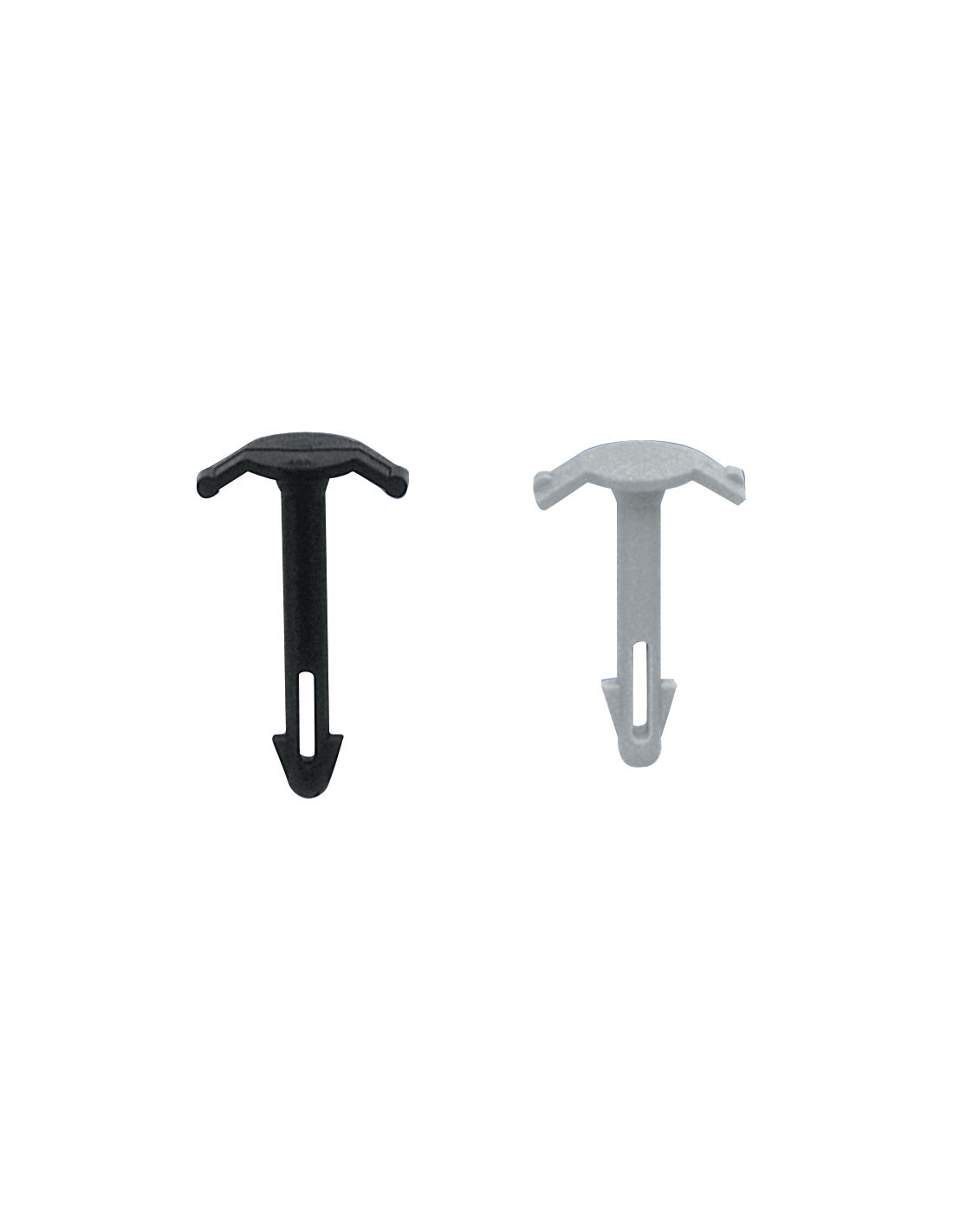

HE6HN Mounting pins H6, Eurostrip HE6H, Panel Thickness 0.8-1.8 mm, Drill Hole Ø5.2 mm
MOUNTING PINS
• Faster Panel Mounting with snap-on mounting pins

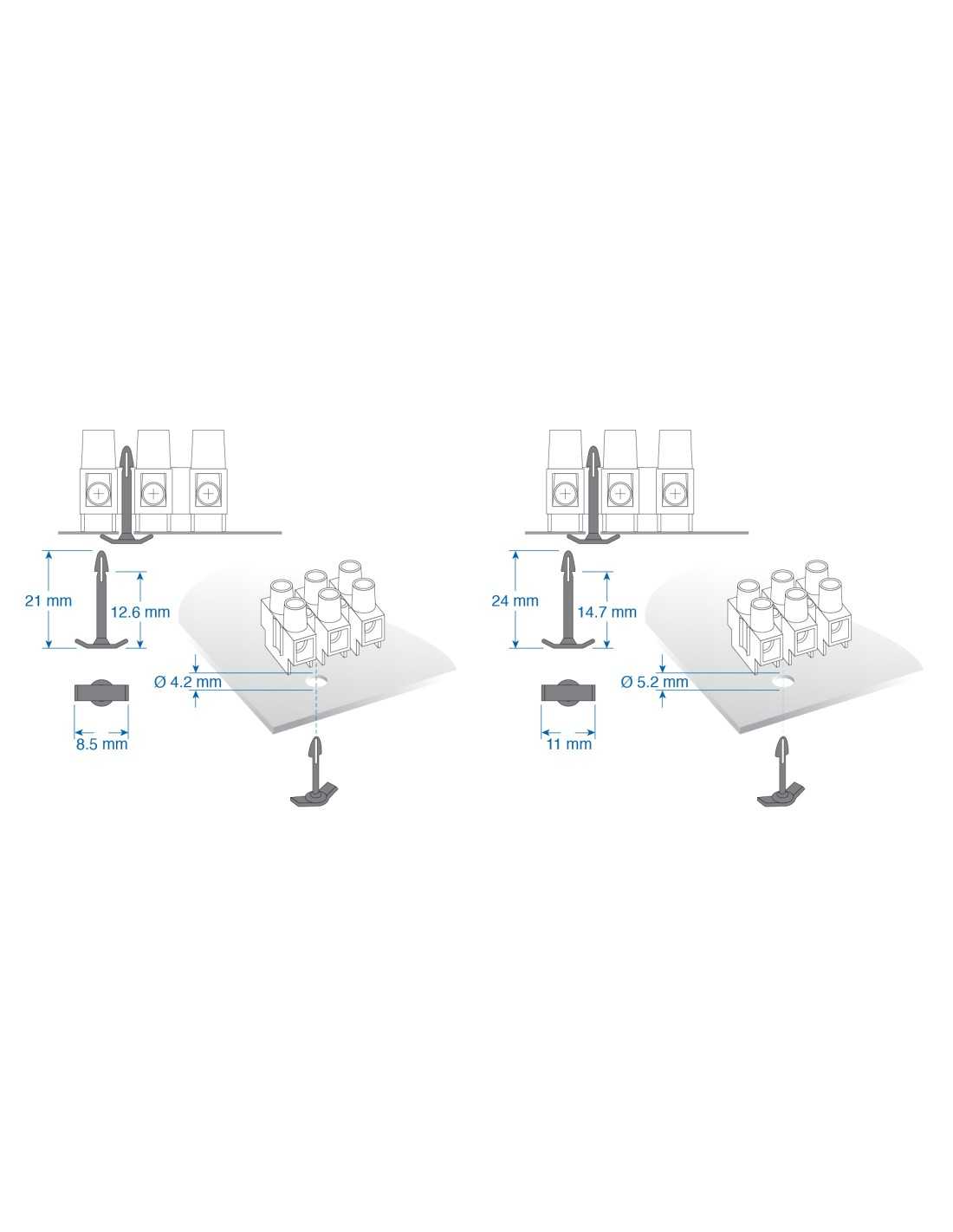

• Installation
1) Insert Pin through drilled hole
2) Position Eurostrip on mounting pin
3) Snap Eurostrip onto Mounting Pins
Use 2 or more pins per Eurostrip
Material: Polycarbonate
Technical Information:
Eurostrip type: HE6HN
Panel Thickness: 0.8-1.8mm
Drill Hole Size: Ø5.2 mm
DATA Sheet
