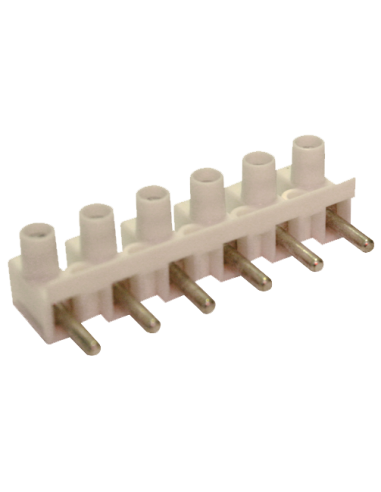

    HE42SST/06 Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG
    HE42SST/06 Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG
    HE42SST/06 Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG
    HE42SST/06 Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG
    HE42SST/06 Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG
    HE42SST/06 Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG

    HE42SST/06 Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG

     FEATURES

    • Quick and Efficient Wire-to-Wire connection solution
    • Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
    • Touch-proof design to eliminate shorts
    • Available in 12 poles or precut to required number of poles
    • Easy to cut to length by using hacksaw or utility knife
    • Safe, Gas-tight connection
    • Reliable connection utilizing a precision machined tubular screw clamp insert
    • Accessories for convenient wire installation and usage

    HE 42SST Series with wire protector

    DATA Sheet



    Eurostrip plug, 6 pole, 10mmPS, Standoff, 20A, 600V, 24-10AWG

    Eurostrip UL Recognized Current Ratings
    20 A
    Eurostrip UL Recognized Voltage Rating
    600 V
    Eurostrip Mounting
    Fixed Through
    Eurostrip Insert
    Wire Protector
    Eurostrip Pin Spacing
    10 mm
    Eurostrip UL Recognized Wire Size
    24-10 AWG
    Eurostrip IEC Wire Size
    2.5-4 mm²
    Eurostrip IEC Voltage Rating
    500 V
    Eurostrip IEC Current Rating
    10 A
    Eurostip Color
    White
    HE42SST/06
