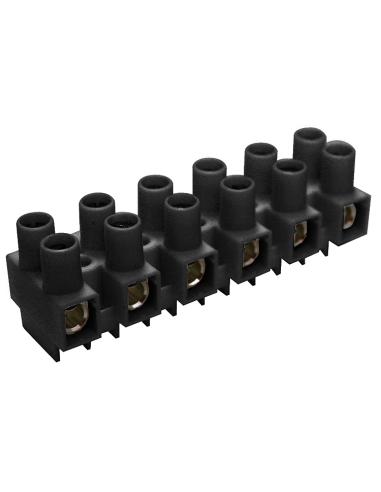

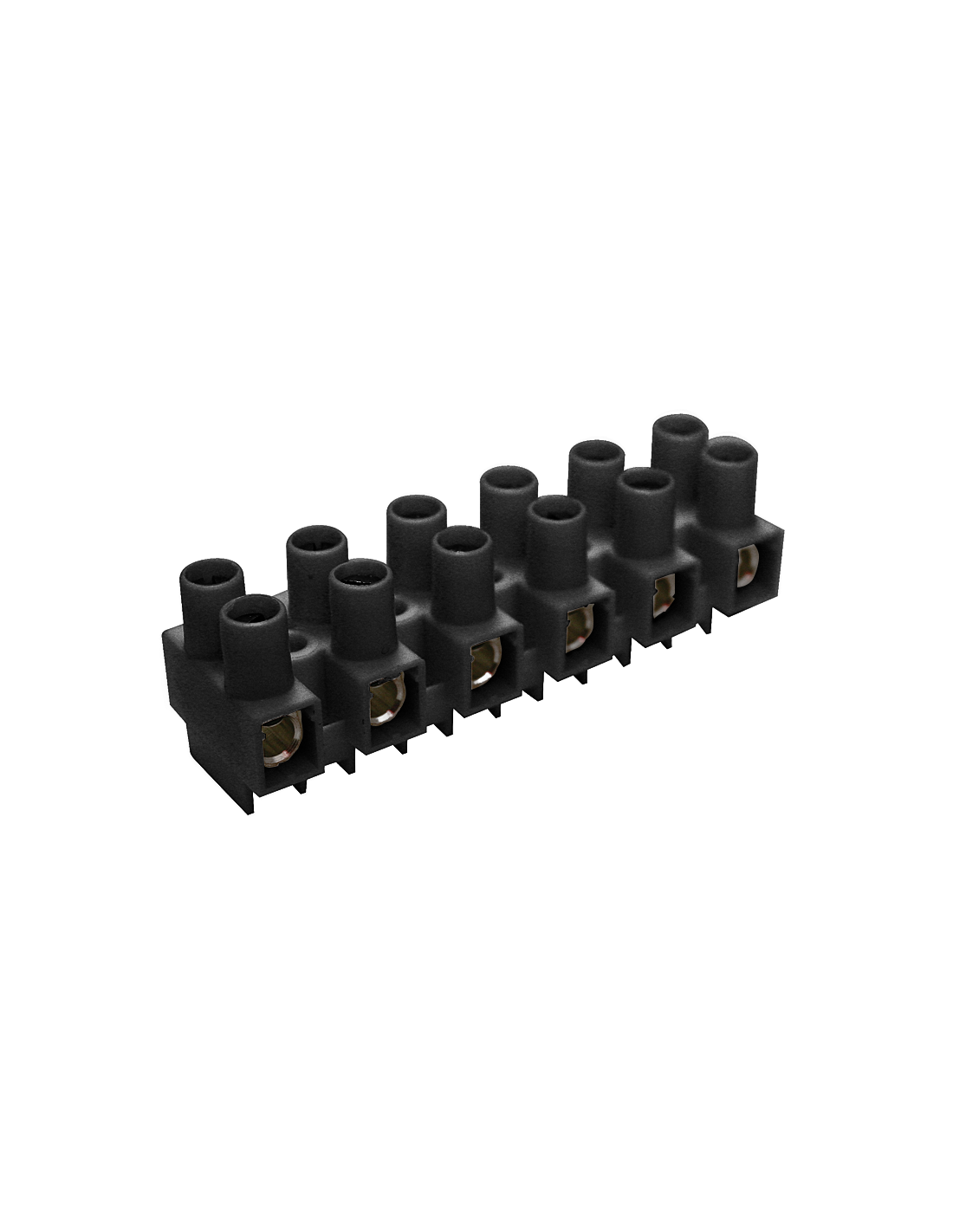

HE10HNWPR/11/BK Eurostrip, 11 pole,15mm spacing, standoff, 50A, 600V, 18-8AWG, Black
FEATURES
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Available in 12 poles or precut to required number of poles
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection
- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage

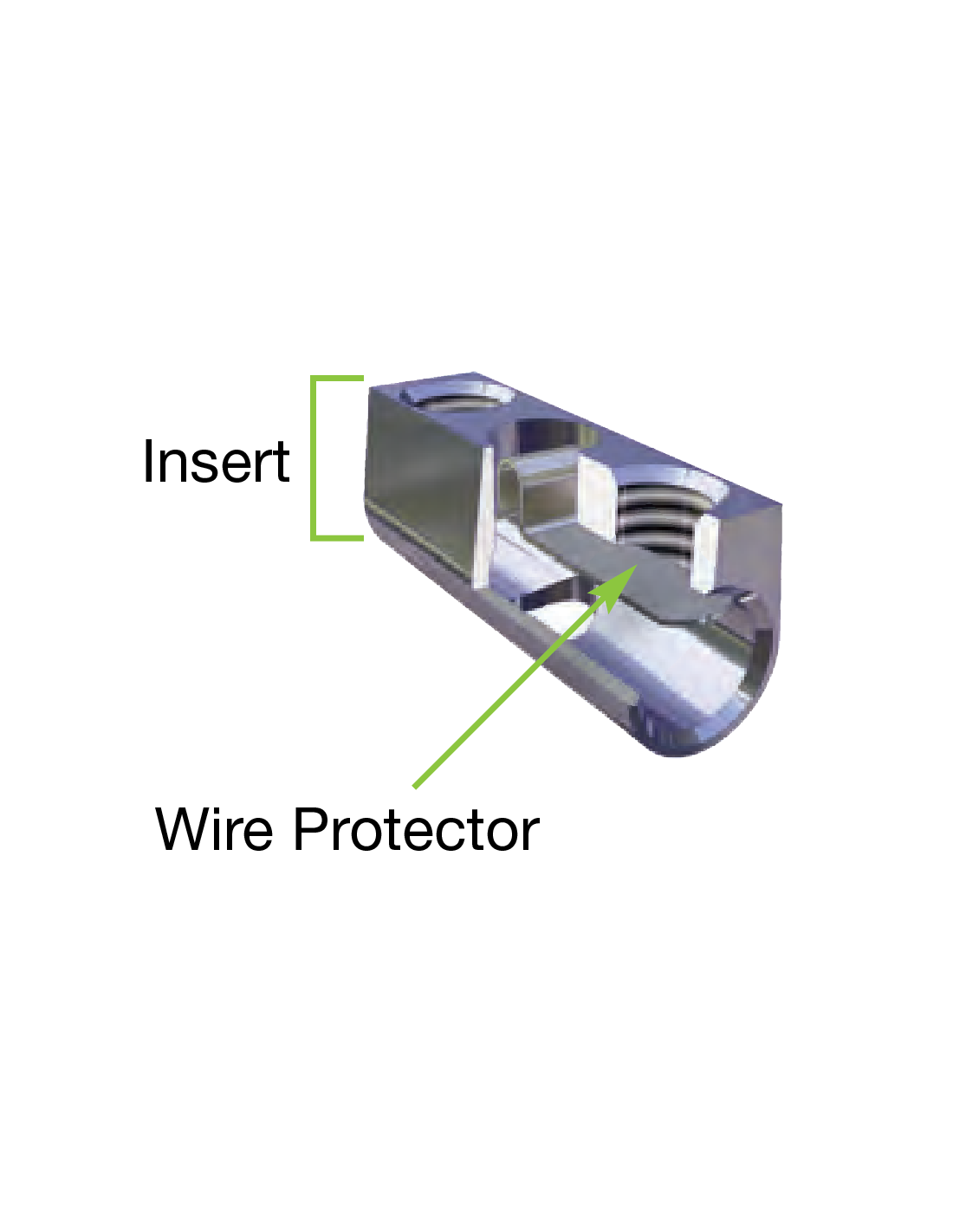

HE 10H Series with wire protector
DATA Sheet

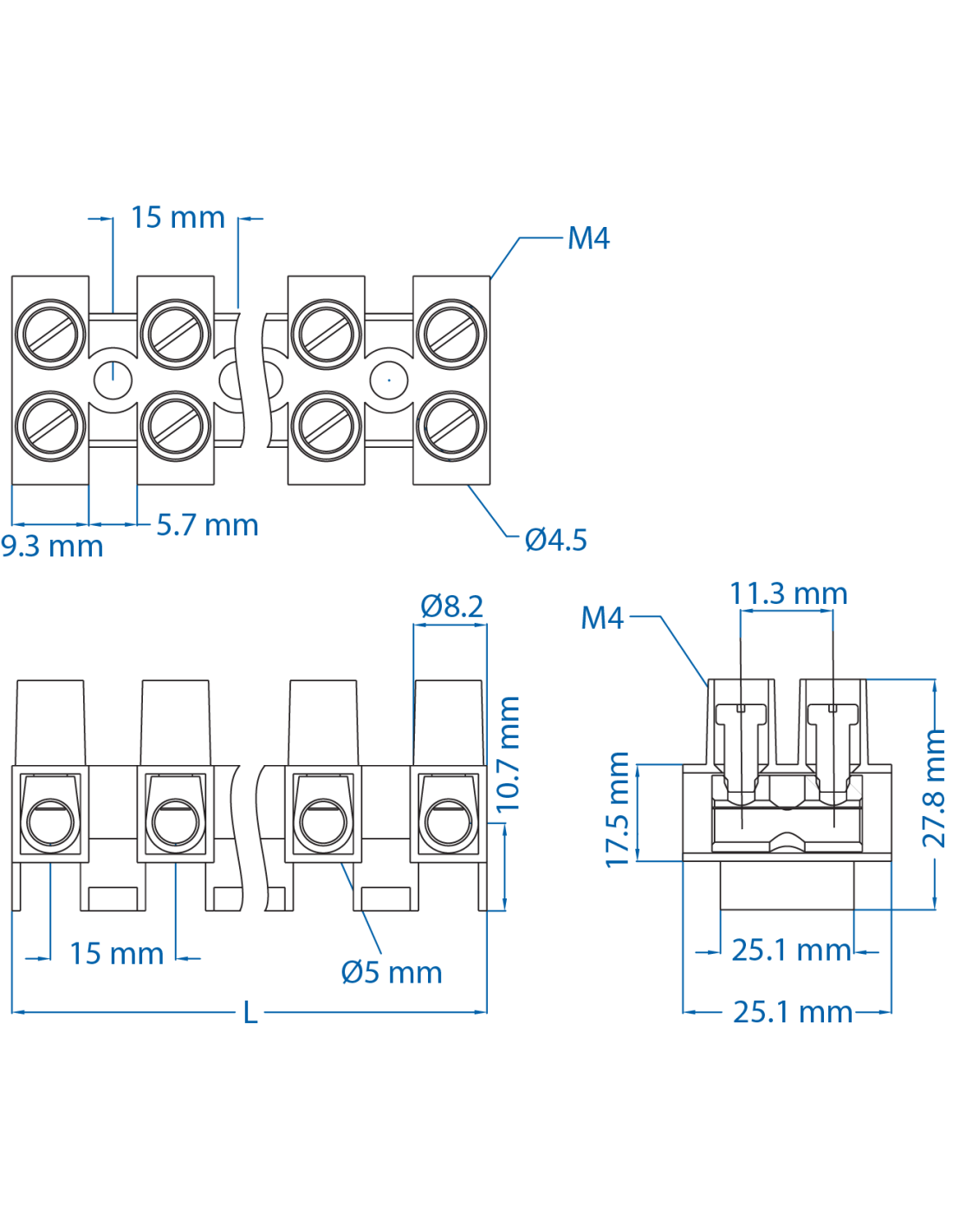

Eurostrip, 11 pole,15mm spacing, standoff, 50A, 600V, 18-8AWG, Black
- Eurostrip UL Recognized Current Ratings
- 50 A
- Eurostrip UL Recognized Voltage Rating
- 600 V
- Eurostrip Mounting
- Fixed Through
- Eurostrip Insert
- Wire Protector
- Eurostrip Pin Spacing
- 15 mm
- Eurostrip UL Recognized Wire Size
- 18-8 AWG
- Eurostrip IEC Wire Size
- 6-10 mm²
- Eurostrip IEC Voltage Rating
- 500 V
- Eurostrip IEC Current Rating
- 25 A
- Eurostip Color
- Black
HE10HNWPR/11/BK
